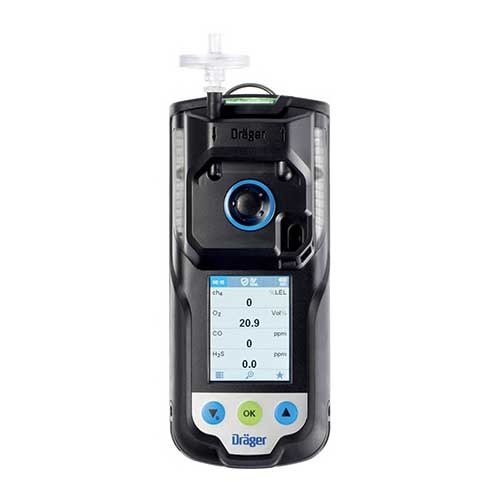

Drager X-am 3500

Drager X-am 3500

The Drager X-am 3500 was especially designed for clearance measurements. The 1 to 4 gas detector reliably detects flammable gases and vapours as well as O2, CO, H2S, NO2 and SO2. The innovative signalling design and extensive range of accessories ensure optimum safety and easy handling.

The Drager X-am 3500 was especially designed for clearance measurements. The 1 to 4 gas detector reliably detects flammable gases and vapours as well as O2, CO, H2S, NO2 and SO2. The innovative signalling design and extensive range of accessories ensure optimum safety and easy handling.

Get a Quote
Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The signal system of the Drager X-am 3500 is based on a clear colour code, in accordance with the requirements of the EN 60079-29-1, EN 45544-1 and EN 50104:

Red light = gas alarm
Yellow light = device-related alarm, e.g. low battery
Green light = device is ready for use

The green glow of the D-light allows you to see from a distance whether the device has been properly tested and is ready for use.

In case of an alarm, the X-am 3500 alerts you with colourful alarm LEDs, a loud horn (100 dB(A) at a distance of 30 cm), and clearly palpable vibration. Optionally, four preset hazard symbols are available for the display which explicitly indicate the presence of explosive or toxic gas hazards, for example. This allows the user to easily recognise the type of hazard based purely on the symbol displayed.

Bumptest and calibration are carried out simply and quickly using the Drager X-dock calibrating station. Its low test gas consumption keeps operating costs to a minimum.

Its reporting function and numerous other useful features make the X-dock Manager PC software a smart addition to any fleet management operation. To identify the devices in the fleet, you can either use tried and tested barcodes or an integrated RFID transponder.

The X-am 3500 features inductive charging. This makes it easier to operate and increases the lifespan of the device. Issues like corrosion and contact problems in the charging cradle are a thing of the past. You can charge (outside of explosion-hazard zones) and measure at once, e.g, when in use inside vehicles or on machinery. The charging cradle can connect with one another, taking up minimal space, and are compatible with existing Drager X-am series cradles.

X-am 3500

Drager X-am 3500 Ex, O2 1 (without charging equipment) 8328412
Drager X-am 3500 Ex, O2, H2S LC1 (without charging equipment) 8328414
Drager X-am 3500 Ex, O2, CO LC1 (without charging equipment) 8328416
Drager X-am 3500 Ex, O2, CO LC, H2S LC1 (without charging equipment) 8328418
Drager X-am 3500 Ex, O2, CO LC, H2S LC1 Set (with charging equipment) 8328419
Drager X-am 3500 Ex, O2, CO LC1, NO2 (without charging equipment) 8328422
Drager X-am 3500 Ex, O2, H2S LC1, SO2 (without charging equipment) 8328424
Instruction for use on request, also available in the following languages (please indicate when ordering): DA, FI, NO, SV, PL, HR, SL, SK, CS, BG, RO, HU, EL, TR, KO 9033668

Sensors

CatEx 125 PR1 0-100 % UEG 1 % UEG 6812950
DragerSensor XXS O2 1 0-25 vol% 0.1 vol% 6810881
DragerSensor XXS CO LC1 0-2,000 ppm 1 ppm 6813210
DragerSensor XXS H2S LC1 0-100 ppm 0.1 ppm 6811525
DragerSensor XXS NO2 0-50 ppm 0.1 ppm 6810884
DragerSensor XXS SO2 0-100 ppm 0.1 ppm 6810885

Power supply unit

Energy supply (incl. back housing) (included as standard) 8326817

Charging accessories

Inductive charger for charging 1 device 8325825
Adapter for power plug 8325736
Power plug for charging 1 device 8316997
Power plug for charging 5 devices 8316994
Power plug 100-240 VAC; 1.33 A, for charging up to 5 devices (requires adapter 8325736) 8321849
Power plug 100-240 VAC; 1.33 A, for charging up to 20 devices (requires adapter 8325736) 8321850
Vehicle connector cable 12/24 V for charging 1 device 4530057
Vehicle connector cable 12/24 V DC for charging up to 5 devices (requires adapter 8325736) 8321855
Vehicle mount (requires adapter for power plug 8325736 and vehicle connector cable 12/24 V DC 8321855) 8327636

Pump accessories

Dust and water filter for pump inlet (included in device when pump option is selected) 8319364
Pump adapter (included in device when pump option is selected) 8326820

Probes and Hoses

Telescopic probe 100 Connection for filter is included in order no. 8319364 (Dust/Water Filter). 8316530
Telescopic probe 150, stainless steel Connection for filter is included in order no. 8319364 (Dust/Water Filter). 8316533
5 m FKM hose, 3.2 mm, with adapters 8325705
10 m FKM hose, 3.2 mm, with adapters 8325706
20 m FKM hose, 3.2 mm, with adapters 8325707
45 m FKM hose, 3.2 mm, with adapters 8328212
Float probe EPP, incl. 3 m hose, 3.2 mm 8325831
Float probe EPP, incl. 10 m hose, 3.2 mm 8325832
Float probe (transparent), with adapter 8327654

Calibration accessories

Drager X-am 3500/8000 calibration adapter 8326821
Drager X-dock Module Drager X-am 8000 (can also be used with X-am 3500) 8321893
Drager X-dock Module Drager X-am 8000+ charging (can also be used with X-am 3500) 8321894
Drager X-dock 5300 (Drager X-am 8000) with Master (can also be used with X-am 3500) 8321882
Nonane Tester 8325861

Accessories for measured value acquisition and configuration

Drager GasVision License Key 8325646
USB Dira Dongle / IR interface 8317409
Holder for USB Dira Dongle 8325859

Other accessories

Protective rubber boot, removable 8325858
Leather case for the device 8327664
Transport case (empty) 8327661
Protective Display cover (set of three) 8326828
Shoulder strap (complete) (requires bow for shoulder strap - 8326819) 8326823
Retractable lenyard (requires connector for shoulder strap) 8323032 Holder for labels (on strap) 8326824
Adhesive labels for individual inscriptions, for holder on strap, silver (set of 5) 8327645
Pedestal for holding device upright, e.g. for area monitoring (requires connector for shoulder strap) 8325874
Transponder reader for reading the integrated RFID transponder (optional) 6559283
