GMI Gasurveyor 3-500 / 6-500 / 11-500 GMI Gasurveyor 3-500 / 6-500 / 11-500 GMI Gasurveyor 3-500 / 6-500 / 11-500

GMI Gasurveyor 3-500 / 6-500 / 11-500

The GMI Gasurveyor 500 Series is GMI's most technologically advanced range of gas detectors to date.

Key Features

  • Flammable gas leak location instruments: with mode for purging / inerting operations (3-500), with Carbon Monoxide monitoring (6-500) or with Oxygen monitoring (11-500)
  • Rechargeable or alkaline battery options
  • Approved to European and North American safety standards
Get a Quote
GMI

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

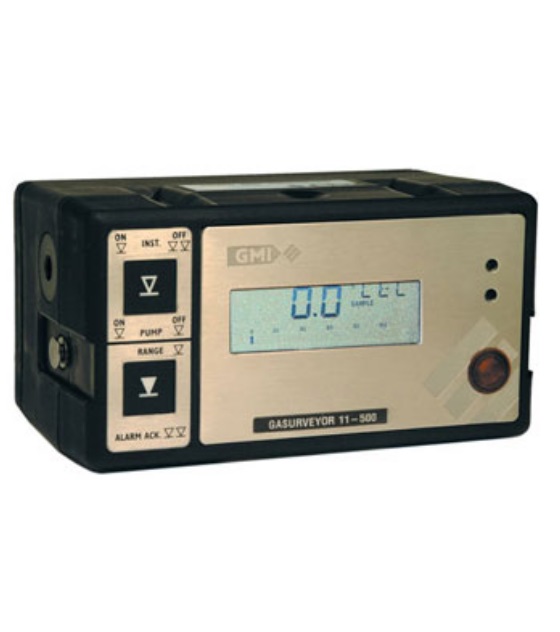

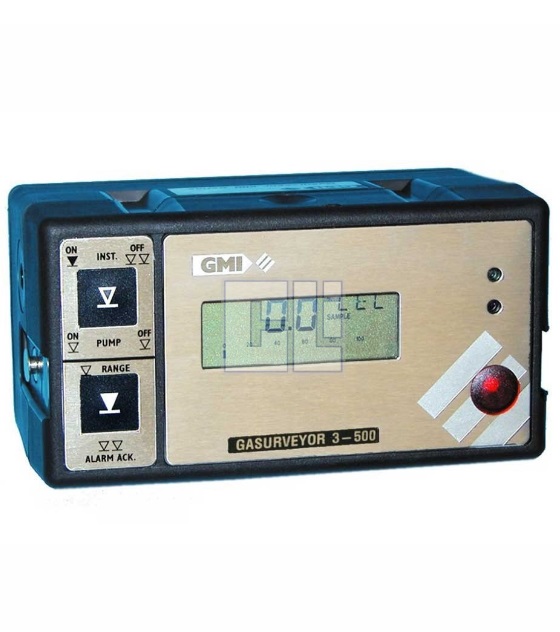

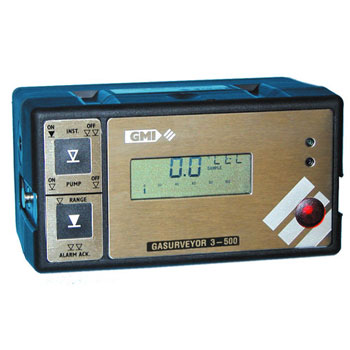

The GMI Gasurveyor 500 Series consists of three different versions - 3-500, 6-500 and 11-500 and is the most technologically advanced range of gas detectors produced by GMI to date.

These products are flammable gas leak location instruments, with a mode for purging / inerting operations on the 3-500, with Carbon Monoxide monitoring on the 6-500 and Oxygen monitoring on the 11-500.

The GMI Gasurveyor 500 Series is available with rechargeable or alkaline battery options and are approved to European and North American safety standards.

The case for the Gasurveyor has been designed to be very robust and anti-static. The detectors themselves are very easy to use, with a simple 2-button operation.

A built-in sampling pump features as standard across each GMI Gasurveyor 500 Series detector, as well as large LCD with automatic backlighting for use in low level light conditions.

The GMI Gasurveyor 500 Series also benefits from audible / visual alarms for all gas ranges, as well as fault alarms for low flow, low battery etc.

The GMI range of Auto Calibration Systems is compatible with the GMI Gasurveyor 500 Series.

Standard Chargers
  • 13844 Standard Charger c/w Universal Power Supply

  • 13179 Standard Charger w/o Power Supply

  • 14815 GS500 Desktop Charger c/w Universal 12V Power Supply

Power Supply for Standard / Desktop Chargers
  • 12444 Universal Power Supply

Charging Stations
  • 14810 GS500 In-Vehicle Charger c/w Cig Lighter Plug and Mounting Bracket

Accessories
  • 12988 Car Charger Lead 12v - Standard Charger Only

  • 13163 5-way Lead for Multi-Charging - Standard Charger Only

  • 42110 Flatbed Charger Strap

  • General Accessories

  • 42114 Rechargeable Battery Pack

  • 13405 Gasurveyor 500 Carrying Case c/w Inserts & Label

  • 12580 Gas Industry Survey Carrying Case c/w Inserts

  • 12370 Carrying Harness

  • 12451 Hex Driver for Base Screws

  • 42153 User Handbook

Accessory Packs

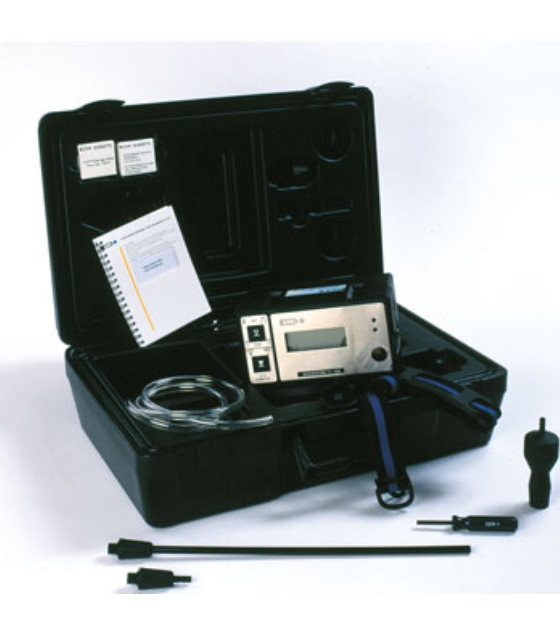

  • 42141 Standard Accessory Pack. Consisting of ; Gasurveyor 500 Carrying Case, 35cm Small Probe (open end), Probe Handle Assembly, Cotton Filters (2 Packs of 10), Sample Line Adaptor.

  • 42151 Gas Industry Survey Accessory Pack. Consisting of ; Survey Carrying Case, Probe Handle, Probe Adaptor,Bellows Cup Probe, Swan Neck.

PPM 500 / First Responder Filter Accessories
  • 42605 Probe Inline Double Filter Assy

  • 42235 Filter Housing Sealing Washer (for use with 42183 / 42184)

  • 12379 Probe Sealing Washer (for use with 42183 / 42184 / 42605)

  • 12358 Water Filter (for use with 42183 / 42605)

  • 75096 Dust Filter (for use with 42184)

  • 10077 Dust filter box of 10 (for use with 42605)

Common Spares
  • 42031 Combustion Chamber Assy (LEL/VOL)

  • 42393 Combustion Chamber Assy (PPM/LEL/VOL)

  • 12630 Pump Assy

  • 42073 Cable Assy (From Main PCB to Cell Block)

  • 65015 Oxygen Cell

  • 12419 CO Cell

  • 59318 H2S Cell

  • 42114 Rechargeable Battery Pack

  • 12455 Dry Cell Battery Cover

  • 42004 Main PCB Assy

  • 42120 2 Button Switch

  • 42042 4 Button Switch

  • 42063 LCD

EPROMS (Model & Serial No Required)
  • 42284 First Responder

  • 42364 Leaksurveyor

  • 42824 Oxygas

  • 42102 All Other Gasurveyor 500's

Probes, Filters and Sample Lines
  • 12481 Probe Handle complete with Filters

  • 12395 Probe Handle complete with Sample Line & Filters

  • 13395 Probe Handle complete with Sample Line, Filters & Inlet Connector ( above 3 parts can be connected to the following probes )

  • 12393 80cm Plastic Probe Solid End GSK2

  • 12394 28cm Flexible Probe Open End GSK2 (Leak Tracing)

  • 12480 35cm Plastic Probe Solid End (General Leak Detection)

  • 13427 35cm Plastic Probe Open End (General Leak Detection)

  • 13413 35cm Stainless Steel Probe Open End (High Temp Applications) *

  • 12229 80cm Stainless Steel Probe Closed End (High Temp Applications) *

  • 12287 50cm Stainless Steel Probe Open End (High Temp Applications) *

  • 42450 Stainless steel purge probe c/w probe handle & tubing (1.5 m) *

  • 42449 Stainless steel purge probe *

  • * For brief flue checks,use charcoal filter 13937 or 67142 & 67148.Refer SB1404

  • 67179 Filtered Flue Probe assy

  • 12688 Sample Line Adaptor

  • 12895 70cm Probe Solid End Barbed (General Survey)

  • 12894 70cm Probe Open Ended Barbed (General Survey)

  • 12365 Inline hydrophobic filter holder

Survey Probes
  • 42700 Extended Survey Probe Assy (Bellows Cup)

  • 42800 Extended Survey Probe Assy (Swan Neck)

  • 42765 PPM Probe Handle filter & black tubing assy

  • 42764 Extended Probe Handle assy PPM (replaces 13561)

  • 42648 Probe Adaptor middle section (replaces 13562)

  • 13563 Bellows cup (spare for 42700 probe)

  • 13655 Swan Neck c/w Shroud and Skids (spare for 42800 probe)

  • 13535 Carpet Probe (Trolley)

  • 13301 Extenda Probe 1.7m (Overhead Pipelines)

  • 42400 Flexible Sampling Probe c/w Handle Assy (Restricted Access)

  • 42399 Flexible Sampling Probe

  • 42137 Carry pouch for probes up to 80 cm

  • 12712 Clear Sample Line (per metre)

  • 13784 Black Sample Line Conductive (per metre)

  • 43720 Clear Sample Line, 20 metre (15 m+5 m with connector)

  • 43725 Clear Sample Line, 25 metre (15 m+10 m with connector)

  • 43730 Clear Sample Line, 30 metre (15 m+15 m with connector)

  • 42448 Extender for Sample Line

  • 12358 Hydrophobic Filter

  • 12361 Hydrophobic Filter Bulk Pack 50

  • 10077 Cotton Filters (Box / 10)

  • 12001 Cotton Filters (200)

  • 13937 Charcoal Filters (Pack of 5)

  • 13503 Water Trap Filter

  • 10336 End Cap for Filter (required for 13503)

  • 800027 Balston Disposable Filter

  • 42215 Coalescing Filter Assembly

  • 75174 Filter (for 42215)

  • 75096 Dust Filter (for 42184)

  • 12371 30mm Waist Belt Assy

  • 42445 Water Trap Assy

  • 42605 Probe Inline Double Filter Assy

  • 42388 Dust Filters (Pack of 20)

  • 13774 15m Conductive Sample Line c/w sampling connector & filters +

  • 13775 20m Conductive Sample Line c/w sampling connector & filters +

  • 13792 35m Conductive Sample Line c/w sampling connector & filters +

  • 13776 Sampling Connector (Connects Instrument Harness to 15,20,35 m sample line)

  • 13777 Filter Probe Assy (Sampling Connector, 1m Conductive Tubing and probe) + (conforms to SOLAS Regulations & ISGOTT recommendations)

TOP PANEL ASSEMBLY
  • 24042 M4 Hexnut for Switch

  • 24285 M4 Plain Washer

  • 42047 O Ring for Switch

  • 75141 O Ring for Switch

  • 12851 Lens

  • 42050 Top Cover Assy - must be ordered with Buzzer Assy (42086) (Model Type required for ID Label)

  • 12019 Top Cover Cord Gasket

  • 12015 LCD Gasket

  • 12018 Elastomeric Connector

  • 42086 Buzzer Assy

  • 42139 Switch Overlay (4 Button 500 Series)

  • 42601 Switch Overlay (Oxygas 500, P500)

  • 42138 Switch Overlay (ppm Gasurveyor 500)

  • 42271 Switch Overlay (First Responder)

  • 42441 Switch Overlay (Leaksurveyor)

  • 42246 Switch Overlay (Gasurveyor 3-500)

  • 42651 Switch Overlay (Gasurveyor 11-500 Purge CSM/CGI)

CASE ASSEMBLY (FLAMMABLE) & GAS PATH COMPONENTS
  • 42059 Case Assy Centre Section

  • 42074 Inlet Tube

  • 12037 Inlet Nozzle

  • 12006 Inlet Nozzle "O" Ring

  • 12038 Inlet Tube "O" Ring

  • 12039 Retaining Clip

  • 42072 Main Cable assy (unit has no toxic cell block, combustion chamber only)

  • 42017 Outlet Nozzle

  • 12035 Outlet Nozzle "O" Ring

  • 12970 500mA

CASE ASSEMBLY (TOXIC) & GAS PATH COMPONENTS
  • 12505 Inlet Pipe

  • 42060 Cell Housing Assy

  • 12423 "O" Ring Toxic

  • 76038 "O" Ring Oxygen

  • 12035 "O" Ring Cell Housing Assy

  • 42003 PCB Assy For Cell Block

  • 24769 M2.2x6 Screw (PCB)

  • 42030 Cell Block Lid

  • 24613 M3x8 Screw for Cell Block Lid

  • 24276 M3 Washer for Cell Block Lid

  • 42084 O2 Blanking Plug

  • 42083 CO/H2S Blanking Plug

  • 42073 Main Cable assy (instrument includes a toxic cell block)

BATTERY COMPARTMENT
  • 42114 Rechargeable battery pack

  • 42033 Battery Block Assy, Rechargeable

  • 42032 Battery Block Assy, Dry cell

  • 12455 Battery covering (black) c/w fittings (for Dry cell only)
