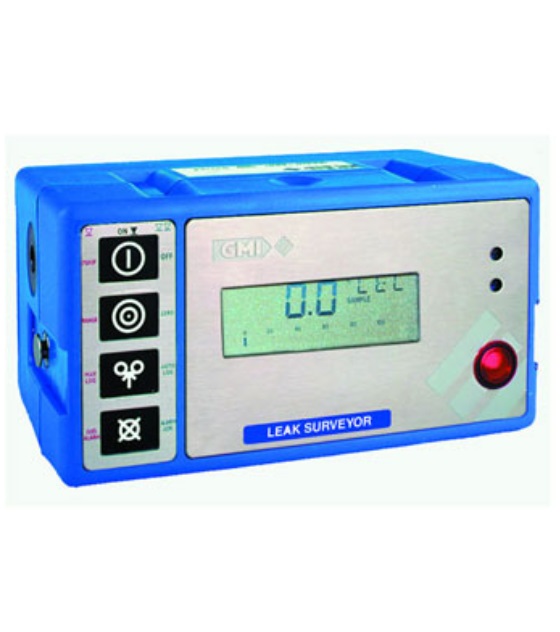

GMI Leaksurveyor

The GMI Leaksurveyor uses a fast response semiconductor sensor reducing the time taken for gas leak surveys on gas distribution networks. The Leaksurveyor detects flammable gas from PPM through LEL to 100 % Vol

Key Features

Integral Semiconductor Sensor (Range 0 - 10,000 ppm), providing fast response leak detection
PPM, LEL and volume flammable gas ranges for leak detection, general safety monitoring and barholing
Audible and visual 'Geiger' alarm indication on ppm range

Get a Quote

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Integral pump with pressure sensor for flow fail detection with sample path protected by hydrophobic filter
Rugged polypropylene case, sealed to IP54 rating, suitable for outdoor use

Applications:

Leak Detection
Bar Hole Survey
Gas Escape detection

Leak Surveyor	44512L Leak Surveyor PPM, LEL, VOL 44512LR Leak Surveyor Rechargeable PPM, LEL, VOL 13844 Standard Charger c/w Universal PSU

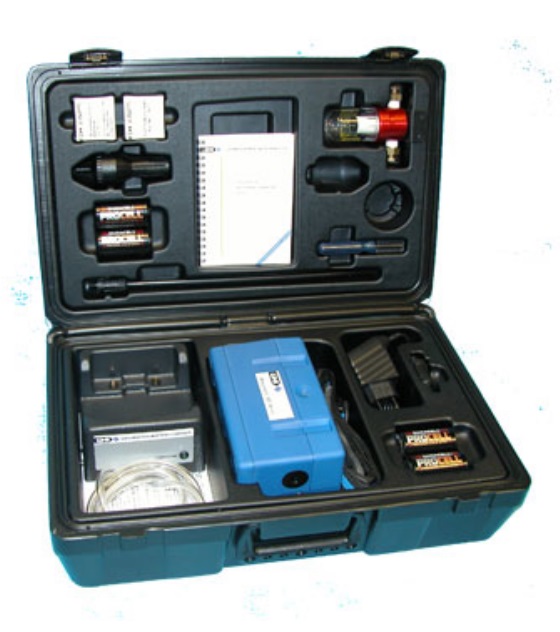

Accessory Packs	42141 Standard Accessory Pack 42151 Gas Survey Accessory Pack
Case Accessories	13405 Standard Carrying Case 12580 Gas Survey 12481 Standard Probe Handle c/w Filters 10077 Cotton Filters (Box / 10) 13427 35 cm probe open end 13561 Survey Probe Handle 13562 Survey Probe Handle Adaptor 13563 Bellows Survey Probe (B) 13655 Swan Neck Probe c/w Shroud 42605 Filter holder c/w filters
Other Accessories	42183 Water Filter Assembly c/w Filters 12358 Hydrophobic Filter (for 12481 or 42183) 42184 Dust Filter Assembly c/w Filters 75096 Dust Filter (for 42184) 13427 35cm Plastic Probe Open End
Spare Parts	42207 User Handbook 42208 Quick Operation Guide 12451 Hex Driver 12370 Carrying Harness 12712 Clear Sample Line x 1m 42078 Pump Assy 42234 Combustion Chamber Assembly 42364 EPROM (Serial No. Required) 42202 Case Assembly Centre Section 42174 Top Cover Assembly (Ordered with Buzzer 42086) 42180 Rechargeable Battery Pack 42175 Battery Cover Assembly Dry Cell 42251 Main PCB Assembly 42227 Main Cable Assembly (Main PCB to Cell Block) 42119 PSU PCB Assembly 12670 250mA Fuse (PSU Board) 42191 Semi-conductor sensor * 42205 Toxic PCB
