GMI PS200 Series GMI PS200 Series GMI PS200 Series

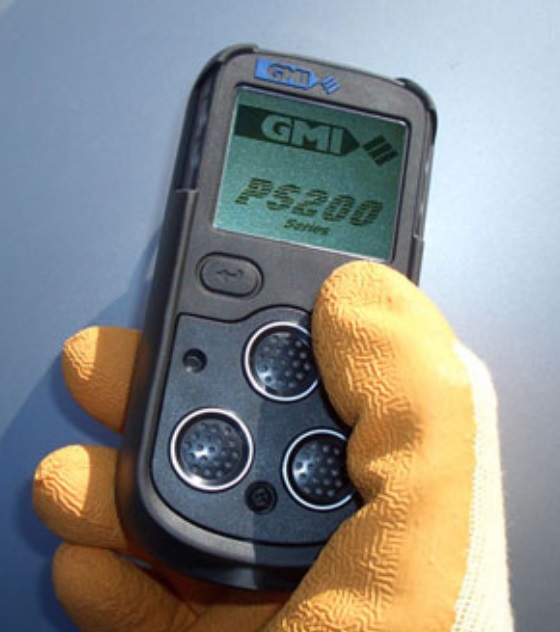

GMI PS200 Series

A robust and accurate portable gas detector, the GMI PS200 Series provides unrivalled protection in confined space applications with audible and visual alarms in the event of exposure to flammable or toxic gases.

Key Features

  • Simple 1-button operation
  • Measures up to 4 gases: CH4 - Methane (LEL), O2 - Oxygen, CO - Carbon Monoxide, H2S - Hydrogen Sulphide and other flammable gases are available on request
  • Audible, visual and vibrating alarms
Get a Quote
GMI

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • Internal pump (optional)
  • • Lightweight yet robust construction
  • • Sensor integrity checking
  • • Ease of maintenance

Detecting and displaying up to 4 gases simultaneously, PS200 is suitable for a host of applications in a variety of industries. The PS200 can be configured to detect a combination of Methane, Oxygen, Carbon Monoxide, Hydrogen Sulphide, as well as other flammable gases.

Pre-entry checking can be carried out with the optional internal sampling pump, and diffusion operation ensuring maximum battery life in confined spaces.

Applications

  • • Personal safety in confined space - CH4/O2/CO/H2S hazards
  • • General safety in confined space
  • • Shipping - general
  • • Shipping - fumigant
  • • Breweries
  • • Plant shutdown
  • • Permit to work systems
  • • Pressurised tunnelling
  • • Fleet auxiliary

PUMPED: Standard FILTER LEL Sensor 4-Gas:
  • 64141 4-Gas LEL/O2/H2S/CO Pumped

PUMPED: Standard FILTER LEL Sensor 3-Gas:
  • 64131 3-Gas LEL/O2/H2S Pumped

  • 64132 3-Gas LEL/O2/CO Pumped

  • 64133 3-Gas LEL/H2S/CO Pumped

  • 64134 3-Gas O2/H2S/CO Pumped

PUMPED: Standard FILTER LEL Sensor 2-Gas:
  • 64121 2-Gas LEL/O2 Pumped

  • 64122 2-Gas LEL/H2S Pumped

  • 64123 2-Gas LEL/CO Pumped

  • 64124 2-Gas O2/H2S Pumped

  • 64125 2-Gas O2/CO Pumped

  • 64126 2-Gas H2S/CO Pumped

PUMPED: Standard FILTER LEL Sensor 1-Gas:
  • 64111 1-Gas LEL Pumped

  • 64112 1-Gas O2 Pumped

  • 64113 1-Gas H2S Pumped

  • 64114 1-Gas CO Pumped

Non-PUMPED: Standard FILTER LEL Sensor 4-Gas:
  • 64041 4-Gas LEL/O2/H2S/CO Non-Pumped

Non-PUMPED: Standard FILTER LEL Sensor 3-Gas:
  • 64031 3-Gas LEL/O2/H2S Non-Pumped

  • 64032 3-Gas LEL/O2/CO Non-Pumped

  • 64033 3-Gas LEL/H2S/CO Non-Pumped

  • 64034 3-Gas O2/H2S/CO Non-Pumped

Non-PUMPED: Standard FILTER LEL Sensor 2-Gas:
  • 64021 2-Gas LEL/O2 Non-Pumped

  • 64022 2-Gas LEL/H2S/Non-Pumped

  • 64023 2-Gas LEL/CO Non-Pumped

  • 64024 2-Gas O2/H2S Non-Pumped

  • 64025 2-Gas O2/CO Non-Pumped

  • 64026 2-Gas H2S/CO Non-Pumped

Non-PUMPED: Standard FILTER LEL Sensor 1-Gas:
  • 64011 1-Gas LEL Non-Pumped

  • 64012 1-Gas O2 Non-Pumped

  • 64013 1-Gas H2S Non-Pumped

  • 64014 1-Gas CO Non-Pumped

PUMPED: Enhanced FILTER LEL Sensor 4-Gas:

  • 64141A 4-Gas LEL/O2/H2S/CO Pumped

PUMPED: Enhanced FILTER LEL Sensor 3-Gas:
  • 64131A 3-Gas LEL/O2/H2S Pumped

  • 64132A 3-Gas LEL/O2/CO Pumped

  • 64133A 3-Gas LEL/H2S/CO Pumped

PUMPED: Enhanced FILTER LEL Sensor 2-Gas:
  • 64121A 2-Gas LEL/O2 Pumped

  • 64122A 2-Gas LEL/H2S Pumped

  • 64123A 2-Gas LEL/CO Pumped

PUMPED: Enhanced FILTER LEL Sensor 1-Gas:
  • 64111A 1-Gas LEL Pumped

Non-PUMPED: Enhanced FILTER LEL Sensor 4-Gas:

  • 64041A 4-Gas LEL/O2/H2S/CO Non-Pumped

Non-PUMPED: Enhanced FILTER LEL Sensor 3-Gas:

  • 64031A 3-Gas LEL/O2/H2S Non-Pumped

  • 64032A 3-Gas LEL/O2/CO Non-Pumped

  • 64033A 3-Gas LEL/H2S/CO Non-Pumped

Non-PUMPED: Enhanced FILTER LEL Sensor 2-Gas:

  • 64021A 2-Gas LEL/O2 Non-Pumped

  • 64022A 2-Gas LEL/H2S/Non-Pumped

  • 64023A 2-Gas LEL/CO Non-Pumped

Non-PUMPED: Enhanced FILTER LEL Sensor 1-Gas:

  • 64011A 1-Gas LEL Non-Pumped

PUMPED: Low Power LEL Sensor 4-Gas:
  • 64141A3 4-Gas LEL/O2/H2S/CO Pumped

PUMPED: Low Power LEL Sensor 3-Gas:
  • 64131A3 3-Gas LEL/O2/H2S Pumped

  • 64132A3 3-Gas LEL/O2/CO Pumped

  • 64133A3 3-Gas LEL/H2S/CO Pumped

PUMPED: Low Power LEL Sensor 2-Gas:
  • 64121A3 2-Gas LEL/O2 Pumped

  • 64122A3 2-Gas LEL/H2S Pumped

  • 64123A3 2-Gas LEL/CO Pumped

PUMPED: Low Power LEL Sensor 1-Gas:
  • 64111A3 1-Gas LEL Pumped

Non-PUMPED: Low Power LEL Sensor 4-Gas:
  • 64041A3 4-Gas LEL/O2/H2S/CO Non-Pumped

Non-PUMPED: Low Power LEL Sensor 3-Gas:
  • 64031A3 3-Gas LEL/O2/H2S Non-Pumped

  • 64032A3 3-Gas LEL/O2/CO Non-Pumped

  • 64033A3 3-Gas LEL/H2S/CO Non-Pumped

Non-PUMPED: Low Power LEL Sensor 2-Gas:
  • 64021A3 2-Gas LEL/O2 Non-Pumped

  • 64022A3 2-Gas LEL/H2S/Non-Pumped

  • 64023A3 2-Gas LEL/CO Non-Pumped

Non-PUMPED: Low Power LEL Sensor 1-Gas:
  • 64011A3 1-Gas LEL Non-Pumped

PUMPED: Infrared LEL Sensor 4-Gas:
  • 64141A4 4-Gas LEL/O2/H2S/CO Pumped

PUMPED: Infrared LEL Sensor 3-Gas:
  • 64131A4 3-Gas LEL/O2/H2S Pumped

  • 64132A4 3-Gas LEL/O2/CO Pumped

  • 64133A4 3-Gas LEL/H2S/CO Pumped

PUMPED: Infrared LEL Sensor 2-Gas:
  • 64121A4 2-Gas LEL/O2 Pumped

  • 64122A4 2-Gas LEL/H2S Pumped

  • 64123A4 2-Gas LEL/CO Pumped

PUMPED: Infrared LEL Sensor 1-Gas:
  • 64111A4 1-Gas LEL Pumped

  • Note: Not MED approved

  • IECEx / ATEX ONLY

Non-PUMPED: Infrared LEL Sensor 4-Gas:
  • 64041A4 4-Gas LEL/O2/H2S/CO Non-Pumped

Non-PUMPED: Infrared LEL Sensor 3-Gas:

  • 64031A4 3-Gas LEL/O2/H2S Non-Pumped

  • 64032A4 3-Gas LEL/O2/CO Non-Pumped

  • 64033A4 3-Gas LEL/H2S/CO Non-Pumped

Non-PUMPED: Infrared LEL Sensor 2-Gas:
  • 64021A4 2-Gas LEL/O2 Non-Pumped

  • 64022A4 2-Gas LEL/H2S/Non-Pumped

  • 64023A4 2-Gas LEL/CO Non-Pumped

Non-PUMPED: Infrared LEL Sensor 1-Gas:
  • 64011A4 1-Gas LEL Non-Pumped

Spare Parts
  • 66725 LEL filtered sensor

  • 64825 LEL Sensor (enhanced filter: -A)

  • 66750 LEL Low Power Sensor

  • 64066 O2 Sensor

  • 64128 H2S Sensor

  • 64176 CO Sensor

  • 64067 Dual Tox. H2S/CO Sensor

  • 64172 Quick Op Instructions

Accessories
  • 64100 Hard Carrying Case

  • 64270 PS200 vehicle charge kit

  • 64491 PS200 Charging Cradle - USB 5V connection (surface mounted)

  • 64560 PS200 Charging Cradle - 12V input (surface mounted)

  • 64138 PS200 5-way charger

  • 64303RD Rubber Boot (Red)

  • 64303BK Rubber Boot (Black)

  • 64303BU Rubber Boot (Blue)

  • 64303GN Rubber Boot (Green)

  • 64303GY Rubber Boot (Grey)

  • 64303OG Rubber Boot (Orange)

  • 64303YE Rubber Boot (Yellow)

  • 64260 Instrument Charging/comms clip

  • 64247 Universal charging adaptor + USB cable

  • 66123 Hand Aspirator

  • 66478 Hand Aspirator c/w 3m tubing

  • 66485 In Line hydrophobic filter assembly

  • 66484 Hydrophobic Filter (for 66485)

  • 64248 In vehicle charging adapter

  • 64118 PVC Tubing (3 metre, use 66112 to extend)

  • 64118R PVC Tubing (price per metre, max length 30 metre)

  • 64136 3 metres tubing c/w quick connect

  • 64137 5 metres tubing c/w quick connect

  • 66112 Sample Line Extender (to connect 1/8" sample line together)

  • 66111 Sample Line Extender (to connect 1/8" to 3/16" sample line together)

  • 66017 Probe assy

  • 64108 Neck lanyard

Bump Test and Calibration Equipment
  • 64052 Auto Bump/Calibration Station * (6mm fittings including PSU/USB & software)

  • 64052Q Auto Bump/Calibration Station * (1/4" fittings including PSU/USB & software)

  • 64051 Manual Bump Kit

  • 67347 Power Supply Auto Bump Station

  • 99553 FlexiCal Plus (required for ABC Station in PC mode)

  • 99560 PS200 Upgrade for FlexiCal IMS Network System Software (Allows PS200 ABC to work with existing IMS for Gasurveyor range)

  • 99561 PS200 IMS (Full Install-Creates a PS200 specific IMS)

  • 64184 Memory Stick c/w software

  • 64265 Tubing with 6mm push/fit

  • * Requires Cal Gas Kit part no. 64060 or equivalent to operate

  • 64438 Right angle 6 mm push in barb adaptor

Gas Kits for Auto Bump/Cal Station:
  • 99146 Combi Test Gas Cylinder (2.5% CH4, 500ppm CO, 50ppm H2S, 18% O2, balance N2)

  • 64060 Auto Bump/Calibration Gas Kit (Combi test gas 99146, DFReg. w/ tubing - for use w/ 64052(Q)

Software
  • 64197 Datalogging software

  • 64501 PS200 Setup Software (Instrument)

  • Spare Parts

  • 64254 Hydrophobic Filter (c/w Gasket)

  • 64240 Filter Cover (c/w Captive Screw)

  • 64084 Sample Inlet Filter

  • 64241 Inlet Nozzle (c/w Screws & O-Ring)

  • 70314 Inlet Nozzle O-Ring ( Min. Order Qty. 5-off )

  • 64242 Jumbo Clip (c/w Screw)

  • 66045 Sample Line Connector

  • 24501 Screw - Front/Rear Cover ( Min. Order Qty. 5-off )

  • 64243 Front Cover

  • 64309 3 Cell Gasket

  • 64244 Rear Cover (Serial Number required)

  • 64255 Pump Kit

  • 64256 Diffusion Kit

  • 64329 O-ring 3mm (spare for 64255/64256, Min. Order Qty. 5-off)

  • 64327 Liquid Crystal Display (LCD) Module

  • 64290 Three PCB Assembly (c/w Battery & LCD, but without man-down)

  • 24495 Screw (PCB) Pk5

  • 24732 Nylon Washer Pk5

  • 64322 Sounder

  • 64306 Button Spacer

  • 64260 Charging Comms Clip

  • 64267 USB-A to mini-B cable assy
