GMI Shipsurveyor GMI Shipsurveyor GMI Shipsurveyor

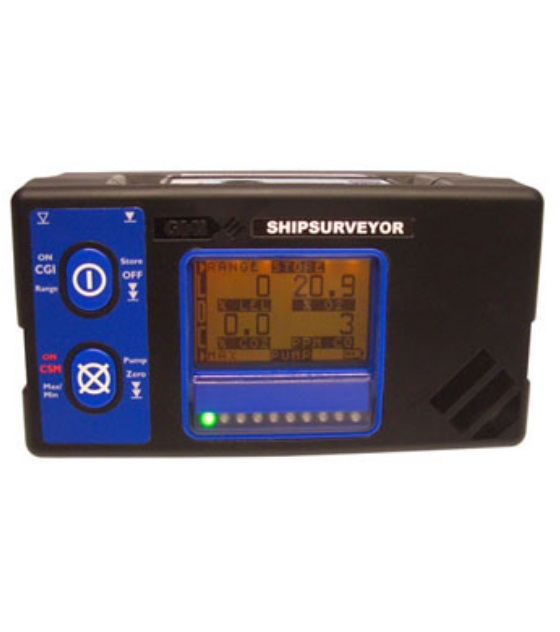

GMI Shipsurveyor

The GMI Shipsurveyor was designed after extensive consultation with shipowners, ship managers and shipping personnel. The result is a range of 8 instruments dedicated to the marine market.

Key Features

  • Easy to use 2-Button Instrument
  • Infrared technology for inert atmosphere measurements
  • Simple calibration with certificate printing
Get a Quote
GMI

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • Large display - all gas readings simultaneously displayed
  • • Dual Mode - Combustibe Gas Indicator (CGI) and Confined Space Monitor (CSM )
  • • Configurable Audible and Visual Alarms (CSM)
  • • Internal pump with superior flow rate to minimise tank sampling times
  • • Enhanced datalogging with 'Location'
  • • Innovative 'quick-connect' range of accessories
  • Fault detection and reporting
  • • Language options

The Shipsurveyor is versatile yet simple to use. The feature-rich range of instruments are suitable for all marine applications including confined space monitoring, cargo monitoring and inerting.

Up to 5 gases can be simultaneously measured and displayed. The hydrocarbon range, which utilises the latest infrared technology, can be calibrated with Butane, Propane or Methane, depending on application.

The Shipsurveyor also comes complete with an impressive and practical suite of application software. Our bespoke software not only allows simple on-board calibration but crucially provides the ability to print calibration certificates. In addition, complete datalogging software comes as standard allowing logged gas readings, with vessel locations, to be uploaded to a PC.

With ATEX and MED approval, the Shipsurveyor is the complete shipping solution.

Applications

  • • LNG/LPG Tankers
  • • Pre-entry checks in tanks
  • • Crude oil cargo tanks
  • • Chemical tankers
  • • Bulk carriers
  • • Fruit carriers

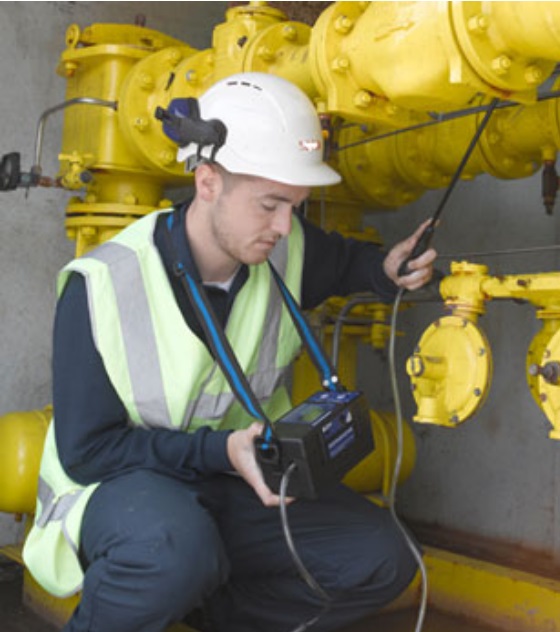

  • • Personal monitoring for tank maintenance
  • • Purging/Inerting

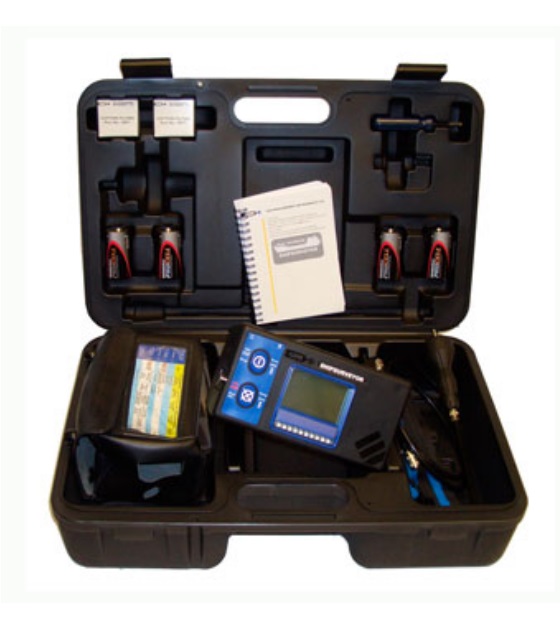

Instrument c/w Carrying Case and Accessories
  • 48021 Shipsurveyor 1 LEL / VOL

  • 48022 Shipsurveyor 2 LEL / VOL / O2

  • 48023 Shipsurveyor 3 LEL / VOL / O2 / H2S

  • 48024 Shipsurveyor 4 LEL / VOL / O2 / CO2

  • 48025 Shipsurveyor 5 LEL / VOL / O2 / CO2 / CO

  • 48026 Shipsurveyor 6 LEL / VOL / O2 / H2S / CO

  • 48027 Shipsurveyor 7 O2 / CO2

  • 48028 Shipsurveyor 8 LEL / VOL / O2 / CO2 / H2S

Accessories
  • 48100 Hard Carrying Case

  • 48101 Leather Field Bag

  • 12370 Neck / Shoulder Harness

  • 48120 Probe Handle with 1 m Conductive Sample Line.

  • 48121 Probe Handle with 5 m Conductive Sample Line.

  • 12358 Hydrophobic (water) Filter

  • 10077 Cotton (dust) Filter - Box / 10

  • 48220 Quick Connect Adaptor (spare)

  • 48142 10m Conductive Sample Line with Waist Harness Connector

  • 48145 25m Conductive Sample Line with Waist Harness Connector

  • 48147 35m Conductive Sample Line with Waist Harness Connector

  • 48130 Waist Harness & Belt Clip assy & 50 cm conductive sample line

  • 12371 Waist Harness (spare)

  • 48223 Quick Connect Belt Clip Assy (spare for 48130)

  • 48221 Quick Connect Conductive Sample Line Assy (0.5 m)

  • 48218 Quick Connect Conductive Sample Line Assy (1 m)

  • 48131 Quick Connect Conductive Sample Line Assy (5 m)

  • 48132 Quick Connect Conductive Sample Line Assy (10 m)

  • 48135 Quick Connect Conductive Sample Line Assy (25 m)

  • 48137 Quick Connect Conductive Sample Line Assy (35 m)

  • 48102 Ball Float with Quick Connect

  • 48103 15cm Plastic Probe with Quick Connect

  • 13427 35cm Plastic Probe

  • 13413 35cm Stainless Steel Probe

  • 12287 50cm Stainless Steel Probe

  • 48110 Rechargeable Option Kit (Including base, power supply & batteries)

  • 48118 Demand valve regulator with quick connect tubing

  • NOTE: The Waist Harness Belt Clip is secured onto the waist harness to take the weight of the sample line. It has Quick Connect fittings.

Spares
  • 16027 Flammable IR Sensor Assy

  • 48326 Flammable IR blanking plug

  • 48368 CO2 IR Sensor Assy

  • 48325 CO2 IR blanking plug

  • 66066 O2 Sensor

  • 65127 CO Sensor

  • 65128 H2S Sensor

  • 66067 CO / H2S Dual Sensor (Shipsurveyor 6 Only)

  • 48328 O2 and toxics blanking plug

  • 48327 PPM Blanking Plug

  • 48201 Top Cover Assy

  • 47028 LCD module

  • 48226 Buzzer Assy

  • 48300 Top cover

  • 12019 Top cover cord gasket (o-ring)

  • 48301 Front Cover Lens

  • 48302 Keypad moulding

  • 48250 Control PCB (Requires Serial Number) *

  • 48205 Sensor Block Assy

  • 48304 Sensor block top cover

  • 48251 Sensor PCB Assembly

  • 48305 Sensor block 7 cell gasket

  • 48230 Sensor block base assy c/w cell gasket

  • 48209 Main cable assy

  • 48202 Middle Section Assy

  • 48207 Pump Assy

  • 48215 Inlet pipe Assy

  • 12358 Internal Hydrophobic Filter Assy

  • 42017 Outlet Nozzle

  • 12039 Retaining Clip

  • 12086 Centre case cord gasket (o-ring)

  • 12038 O-ring

  • 42745 O-ring

  • 48204 Battery Block Assy

  • 47280 Rechargeable batteries (pack of 2)

  • 48211 Battery Cover Assy

  • 75040 O-ring

  • * NOTE: Customer needs to advise software version of their instrument as sensor PCB needs to have the same software as the main PCB
