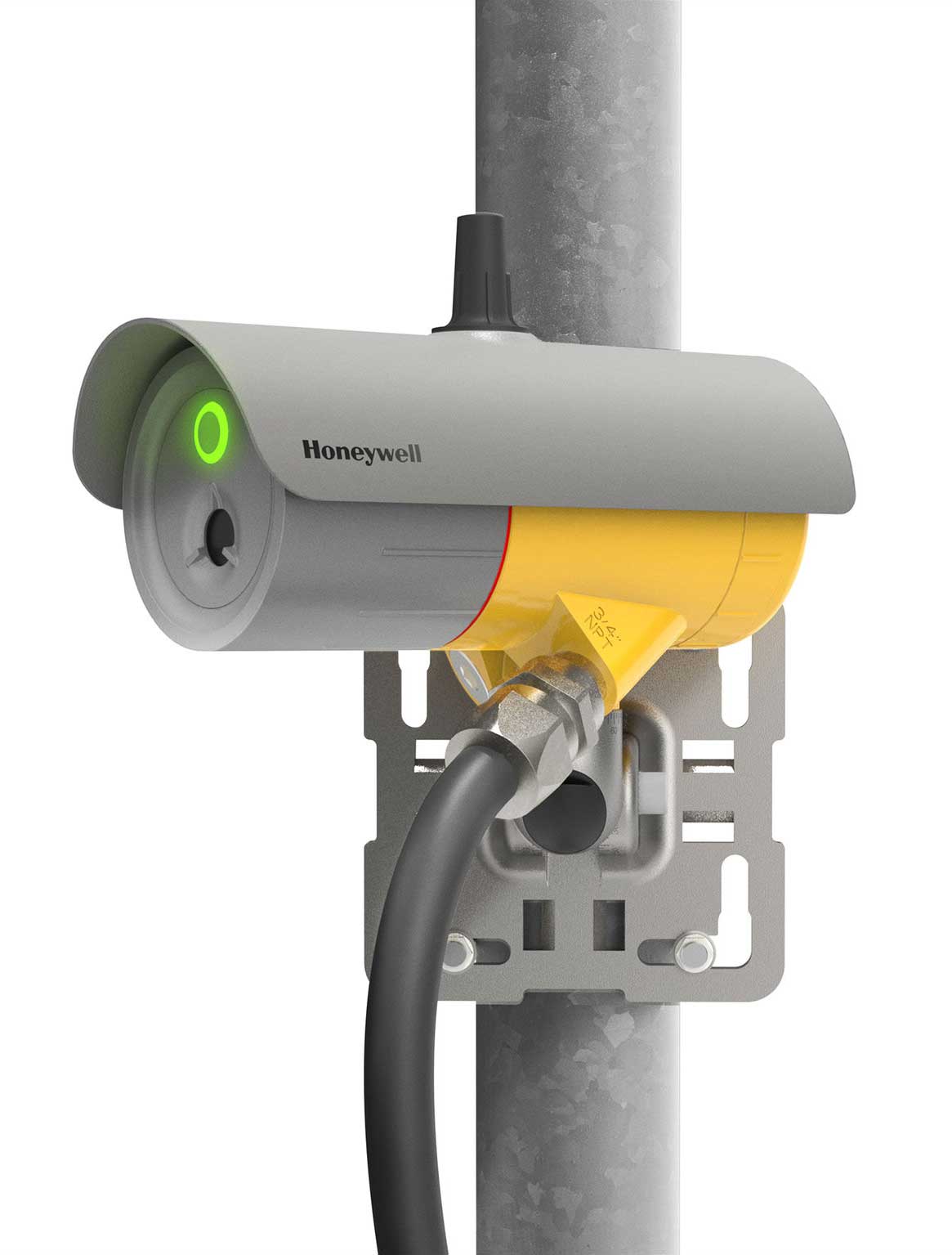

Honeywell Analytics SearchZone Sonik

The SearchZone Sonik acoustic gas leak detector complements Honeywell’s established portfolio of gas detection devices, adding ultrasonic technology to a reliable mix of point and open-path gas detectors. Thanks to its robust sealed solid-state sensor that doesn’t need calibration and can withstand the harshest weather conditions, the Searchzone Sonik delivers reliable gas leak detection, even in the noisiest environments, prevents false alarms, and reduces the cost of ownership. A sophisticated App on a hazardous area Bluetooth device delivers remote access for set-up, interrogation and maintenance, supported by an advanced test-tool enabling testing from the ground - no need to work at height.

Key Features

  • Maximizes the safety and efficiency of your mix of fixed gas detectors
  • Provides reliable gas leak detection in a wide range of applications and working environments
  • Minimizes the risks of false alarms
  • Enables quicker, easier installation
  • Minimizes cost of ownership and saves time
  • Increases ease of use with advanced set-up and test tools.
Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Quick Specs

  • Field of Coverage: ± 90° solid angle from on axis to 6dB down
  • Area of Coverage: typically 20m (65ft) on-axis radius
  • Operating Temperature: -55°C to +75°C (-76°F to +167°F)
  • SIL2 to EN61508
  • Digital Communications: Modbus RTU RS485, HART®, Bluetooth
  • Painted Stainless Steel or Aluminium options
  • Cable entries: 2 x M25 or 2 x ¾ NPT.



A robust and reliable gas-leak detection device, Searchzone Sonik will efficiently “hear” the loss of containment of any high-pressure gas within its listening zone. As it responds to the ultrasonic sound pressure level produced by pressurized gas leaks, it is therefore unaffected by environmental conditions.

Searchzone Sonik is factory calibrated. Its robust sealed design with no moving parts and the advanced solid-state sensor allow for mounting in any orientation, even in the harshest environments. The acoustic gas leak detector will respond quickly to a gas leak within a sensing range radius of typically 20m (65 ft), dependent upon background noise.

No False Alarms – the high-end spectral analysis delivers best-in-class detection of high-pressure gas leaks in real-world environments.

Wide Zone Coverage – typically 20m (65 ft) detection radius, dependent upon background ultrasonic noise levels.

Complements Existing Gas Detectors – the Searchzone Sonik seamlessly integrates with existing point-and-open path gas detectors, thus creating the optimal gas detection mix.

No Moving Parts – the solid-state sensor works flawlessly even in the harshest environments and doesn’t need additional calibration.

Simple Installation and Alignment – the Platform Universal Mount with 3 graduated degrees of freedom enables easy mechanical set-up.

Bluetooth Compatibility – set-up and interrogation from ground level are available via Bluetooth by using the Honeywell Platform application on IS mobile phones. Depending on the mobile device, the range can reach up to 20 m (65 ft).

Instrument Status at a Glance – the Searchzone Sonik features a bright signal light – green, yellow, red, or blue -  providing clear indication of the instrument status.

Full Operational Logs – enables post-event analysis to assess overall performance and allows security checks.

Fast Commissioning – the Searchzone Sonik App allows users to save configurations and upload to other Searchzone Soniks for quick and easy commissioning.

Part Number Description
Instruments
SZSK-SNGXX Searchzone Sonik Ultrasonic Gas Leak Detector, SST, 3/4NPT with adjustable mount and sunshade
SZSK-SMGXX Searchzone Sonik Ultrasonic Gas Leak Detector, SST, M25 with adjustable mount and sunshade
029-5402-200 Rugged Smart Hand Held (EU/UK)
029-5401-000 Zone 1 (IS) Rugged Smart Hand-Held (North America)*
029-5401-200 Zone 1 (15) Rugged Smart Hand-Held (EU)*
Acessories, Consumables & Spares
2331B1102 Pole mount kit for Searchzone Sonlk standard adjustable mounting bracket
2331B1112 Pole mount kit for Searchzone Sonik large adjustable mounting bracket
2331B1131 Searchzone Sonik SST sunshade
2331B1000 Searchzone Sonik Hand Held Test Unit*
2331B1020 Large mounting plate to suit larger poles
029-5403-000 Multi- Region Field Communicator Charger (US/EU/UK)
029-5410-000 USB Cable with IS Barriee for use with 029-5401-000/2000
Spares (Miscellaneous)
2331B1100 Standard mouting plate
2331B1130 Plastic sunshade
2331B1150 Terminal block set (5 pack)
2331B1160 Antenna cover (5 pack)
