Honeywell Analytics ACM 150 FT-IR Centralised Gas Monitoring System
Honeywell Analytics

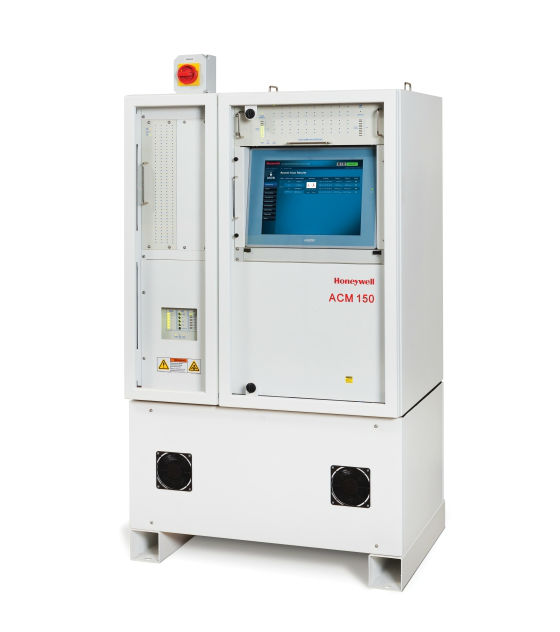

Honeywell Analytics ACM 150 FT-IR Centralised Gas Monitoring System

The Honeywell Analytics ACM 150 FT-IR Centralised Gas Monitoring System uses Fourier Transform Infrared Technology, that is trusted and proven, in order to detect a wide array of volatile chemicals.

Key Features

  • Detects virtually any gas, chemical or odor in an industrial process
  • Up to 40 measuring points can be sequentially detected
  • Simplified touchscreen operation

The ACM 150 by Honeywell Analytics uses Fourier Transform Infrared Technology, that is trusted and proven, in order to detect a wide array of volatile chemicals.

Free of cross interference, the ACM 150 FT-IR Centralised Gas Monitoring System identifies each gas using its infrared fingerprint, whilst also being able to identify odors or chemicals that are unknown. New gases can be added to the system at any time.

The ACM 150 can detect percent (%) levels for flammable gas monitoring or PPM levels for the monitoring of toxic gases by choosing between two sample cells.

The system can be accessed remotely by using a web browser in order to change alarm configurations or gas selections. This can also be done using the front panel.

ACM 150 Base Unit
  • 76-ACM150-115-1 FTIR-based analyser, for measurement of up to 14 gases per sample point. Includes primary venturi pump with automatic switch-over to electric backup pump, touchscreen user friendly interface (point and click), built-in diagnostics, configurable gas selection, web-based user interface, 10 point sample valve assembly including dust filter, 80 user-programmable relay contacts; requires method(s) for detection of gases according to customer's gas list. Power requirements: 115VAC, 5.0m path length gas cell

  • 76-ACM150-115-2 FTIR-based analyser, for measurement of up to 14 gases per sample point. Includes primary electric pump with automatic switch-over to electric backup pump, touchscreen user friendly interface (point and click), built-in diagnostics, configurable gas selection, web-based user interface, 10 point sample valve assembly including dust filter, 80 user-programmable relay contacts; requires method(s) for detection of gases according to customer's gas list. Power requirements: 115VAC, 5.0m path length gas cell

  • 76-ACM150-230-1 FTIR-based analyser, for measurement of up to 14 gases per sample point. Includes primary venturi pump with automatic switch-over to electric backup pump, touchscreen user friendly interface (point and click), built-in diagnostics, configurable gas selection, web-based user interface, 10 point sample valve assembly including dust filter, 80 user-programmable relay contacts; requires method(s) for detection of gases according to customer's gas list. Power requirements: 230VAC, 5.0m path length gas cell

  • 76-ACM150-230-2 FTIR-based analyser, for measurement of up to 14 gases per sample point. Includes primary electric pump with automatic switch-over to electric backup pump, touchscreen user friendly interface (point and click), built-in diagnostics, configurable gas selection, web-based user interface, 10 point sample valve assembly including dust filter, 80 user-programmable relay contacts; requires method(s) for detection of gases according to customer's gas list. Power requirements: 230VAC, 5.0m path length gas cell

ACM 150 Options and Accessories
  • 76-150-14393-04-B 10-point Sample Manifold includes Dust Filter. Up to 3 max may be added to base unit - 40 points total

  • 76-165-14594-00-A Kit, Line Leak,3/8T Check Valve Note: 1 per sample point required.

  • RSD0013 Set up of method

  • 0235-0252 FEP tubing 0.25" ID x 0.375" OD, 300m length

  • 76-215-12477-00-B ACM internal hardware for Line Leak Option for dual electric pump systems.

  • 76-215-12475-00-D ACM internal hardware for Line Leak Option for Venturi pump systems.

ACM 150 Serial Communications Interfaces
  • 76-150-14392-02 Kit, Data Interface, Control Net B3514

  • 76-150-14398-02 Kit, Data Interface, Control Net, Redundant B3514

  • 76-150-14391-10 Kit, Data Interface, Modbus TCP/IP

  • 76-150-14390-04 Kit, Data Interface, Profibus DP

ACM 150 Spares
  • 76-465-15101-00 PKI bench w/plate

  • 76-441-15551-00 Gas cell for PKI bench

  • 76-519-13251-00 Single board computer

  • 76-518-13260-00 15" HMI touch screen computer

  • 76-150-15300-00-B Network switch, Cisco, including bracket

  • 76-150-14500-00-B DVD/CD-ROM drive with mounting brackets

ACM 100 Upgrade Kits
  • 76-165-14582-00-A Kit, Dust Filter 3/8

  • 76-150-15500-00-A Complete upgrade - Bench upgrade and HMI upgrade

  • 76-150-15101-00-H ACM 100 Bench upgrade kit: new PKI bench w/plate, single board computer, shelf, mounting hardware, gas cell, cables

  • 76-150-15400-00-A ACM 100 HMI upgrade kit: new touch screen, network switch, mounting hardware (door etc.), new software

  • 76-215-12477-00-B ACM internal hardware for Line Leak Option for dual electric pump systems. Note: Assy, Line Leak requires qty 1 off item 76-220-13588-00-A when used as a replacement for ACM 100.

  • 76-215-12475-00-D ACM internal hardware for Line Leak Option for Venturi pump systems. Note: Assy, Line Leak requires qty 2 off item 76-220-13588-00-A when used as a replacement for ACM 100.

  • 76-220-13588-00-A Assy, Adaptor Solenoid Valve for new plug

  • 76-120-15050-00 Software ACM 100 Archiving Tool
