Honeywell Analytics OELD (Optima Excel Local Display) Honeywell Analytics OELD (Optima Excel Local Display)
Honeywell Analytics

Honeywell Analytics OELD (Optima Excel Local Display)

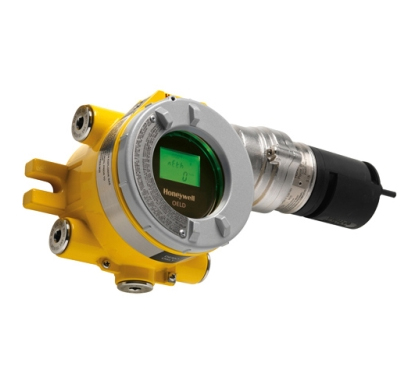

The Optima Excel Local Display (OELD) is a smart junction box for the Searchpoint Optima Plus and Searchline Excel infrared detectors for flammable hydrocarbons.

Key Features

  • Gas sensor junction box featuring simplified maintenance using familiar smartphone technology
  • Smart junction box provides non-intrusive interaction reducing maintenance time and safety risk
  • Easy access to hard-to-reach detectors

The OELD includes an LCD screen for gas information, a "traffic light" indicator for at-a-glance detector status, and Bluetooth connectivity for simplified, non-intrusive maintenance.

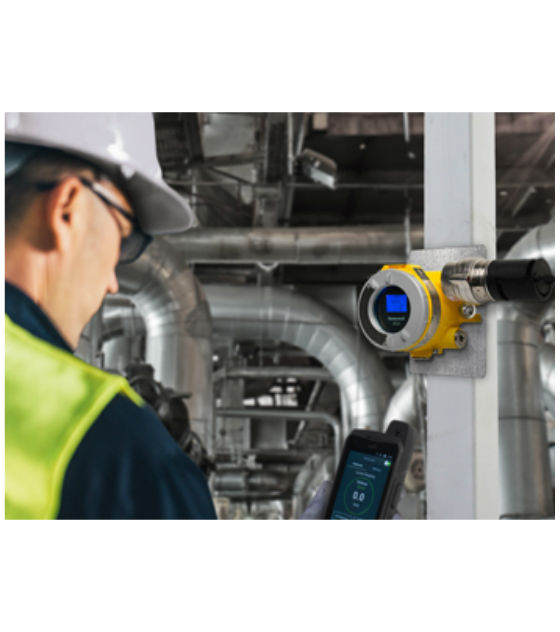

Simply pair the OELD with our intrinsically safe, ruggedized smartphone; then use the OELD smartphone app to interact with the gas detector from up to 10 meters away.

For maximum flexibility, the gas detector can be mounted either directly or remotely to OELD to suit any situation.

Quick Specs:

• Backward compatible with all versions of Searchpoint Optima Plus and Searchline Excel
• Robust Aluminium or Stainless steel housing
• Ingress protection IP66 / Type 4X (in accordance with NEMA 250)
• Worldwide approvals including ATEX, IECEx, cULus
OELD
  • OELDBXXXXXADMAX OELD Smart Junction Box, Display, Ex d, Aluminium, M25,ATEX/IECEx

  • OELDBXXXXXSDMAX OELD Smart Junction Box, Display, Ex d, 316SST, M25, ATEX/IECEx

  • OELDBXXXXXAEMAX OELD Smart Junction Box, Display, Ex e Aluminium, M25,ATEX/IECEx

  • OELDBXXXXXSEMAX OELD Smart Junction Box, Display, Ex e, 316SST, M25, ATEX/IECEx

  • OELDBXXXXXADNUX OELD Smart Junction Box, Display, C1D1 Z1, Aluminium, 3/4"NPT, cULus

  • OELDBXXXXXSDNUX OELD Smart Junction Box, Display, C1D1 Z1, 316SST, 3/4"NPT, cULus

  • OELDBXXXXXADMAL OELD Smart Junction Box, Display, Bluetooth and Local Interface, Ex d, Aluminium, M25,ATEX/IECEx

  • OELDBXXXXXSDMAL OELD Smart Junction Box, Display, Bluetooth and Local Interface, Ex d, 316SST, M25, ATEX/IECEx

  • 029-5402-000 Rugged Smart Hand-Held (North America)

  • 029-5402-200 Rugged Smart Hand-Held (EU)

  • 029-5402-300 Rugged Smart Hand-Held (UK)

  • 029-5401-000 Zone 1 (IS) Rugged Smart Hand-Held (North America)

  • 029-5401-200 Zone 1 (IS) Rugged Smart Hand-Held (EU)

  • 029-5401-300 Zone 1 (IS) Rugged Smart Hand-Held (UK)

Accessories and Spares
  • 029-5403-000 Wall Charger for Smart Hand-Held (North America)

  • 029-5403-200 Wall Charger for Smart Hand-Held (EU)

  • 029-5403-300 Wall Charger for Smart Hand-Held (UK)

  • 029-5410-000 USB Cable with Integral Protection Device (for IS Smart Hand-Held)

  • 1226A0358 OELD/XNX Pole/Pipe Mount Kit

  • 1226A0355 OELD/XNX Ceiling Mounting Kit

  • 94000-A-1006 OELD/XNX Sunshade Kit

  • OELDVSK01 OELD General Service Kit includes O-rings and Fixings

  • OELDVSK02 OELD Terminal Block Set

  • OELDVSK04 OELD M25 Stopping Plug

  • OELDVSK05 OELD ¾"NPT Stopping Plug

  • OELDVSK06 OELD Electronics Module

  • OELDVSK07 OELD Electronics Module for increase safety versions

  • OELDVSK08 OELD Plastic Locating Post for Electronics Module
