Honeywell Safety Testair 4

Honeywell Safety Testair 4 (SCBA Test Bench)

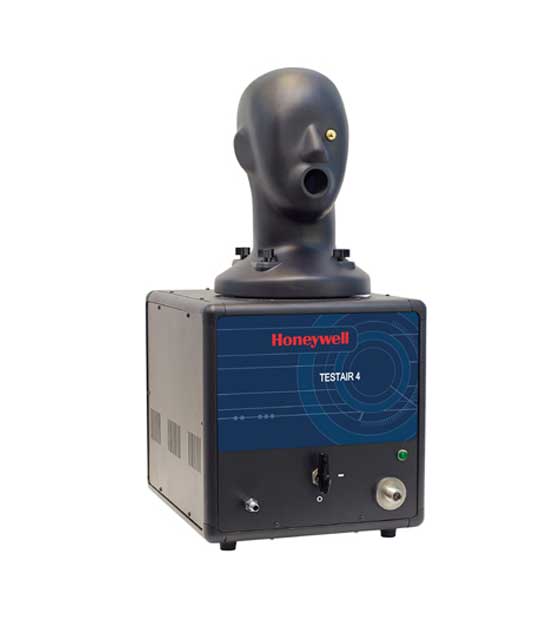

The Honeywell Safety Testair 4 is a computerised test bench to carry out the dynamic testing of, and for the evaluation of the performance of, completely assembled self-contained breathing apparatus (SCBA).

Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Key Features

  • The test bench allows testing of different equipments
  • Facepieces
  • Complete SCBA sets
  • Continous flow devices
  • Chemical protective suits
  • ests carried out
  • Facepiece leak
  • Exhalation valve opening pressure
  • Static facepiece pressure
  • Bypass flow rate
  • Low pressure alarm activation
  • First stage regulator performance
  • Accuracy of pressure gauge
  • Reducer safety valve test
  • Lung demand valve performance test
  • Breathing resistance at standard (40 LPM) work rate
  • Breathing resistance at maximum (100 LPM) work rate



A large number of improvements have been made to this latest version of the test bench:

  • USB connection from bench to PC.
  • Automatic detection of switch-on point for audible low pressure alarm.
  • Automatic test of low-pressure alarm.
  • Customisation of user access permissions.
  • New database system allows easy management of a large number of readings.
  • Ability to manage additional information, such as where the SCBA are used: SCBA storage facility, global view of all SCBA assigned to a maintenance centre, etc.
  • Print test report in PDF format.

Historical Brand

  • SPERIAN


Dimensions

360 x 345 x 410 mm

Weight

15,5 kg

USB version

USB 2.0

Operating system

Windows XP, Vista, 7 (32 and 64-bit versions)

Inlet pressure

Max 350 bars

Sensor accuracy class

<1,0

Respiratory frequency

5-60 cycles/min

Current volume

0,2-4 liters

Respiratory volume

1-135 l/min

Electrical data

100-250 VAC, 50-60 Hz



1824575
TESTAIR 4
SCBA test bench
