Kane 452NO Flue Gas Analyser

Kane 452NO Flue Gas Analyser

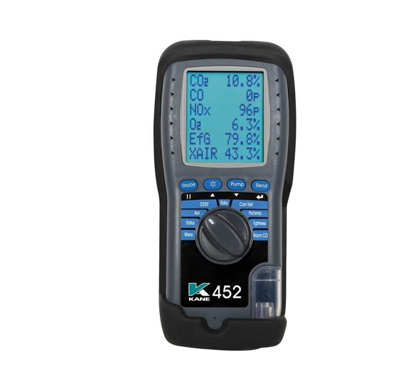

The Kane 452NO is a Flue Gas Analyser (Direct CO & CO2 - Low range NO Sensor).

Kane 452NO Key Features

  • Select from pre-programmed fuels - gas, oil, biomass
  • Dual pump system for CO sensor 'over-range' protection
  • Low range NO sensor (0-100ppm)
  • Structured commissioning test
  • Fast print
  • Screen protection
  • 6 line display
  • Factory fitted upgrades available
Get a Quote
Kane

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Product Features

  Structured commission test
  Rotary switch for ease of use
  Data hold
  Logs & prints reports with optional infra-red printer - Combustion, Pressure, Let-by & Tightness, Temperature, CO build up and Commission test
  6 year warranty if serviced annually by Kane

Applications

  Installation and servicing of domestic oil, gas or biomass appliances
  Safety checks
  CO in a room or around an appliance
  Combustion performance checks
  Combustion efficiency checks
  Flue Draught

Measures

  CO2 direct with an infra-red sensor 0-20%
  CO 0-2,000ppm
  NO 0-100ppm
  Differential temperature
  High accuracy differential pressure meter +/- 80mbar

Calculates

  O2
  Excess air
  CO/CO2 ratio
  Combustion efficiency

Fuels Types

  Natural Gas
  Butane
  Propane
  LPG
  28 sec oil
  35 sec oil
  Wood pellets

Box Contents

  Analyser
  Probe
  Pressure connectors
  Charger
  Quick guide reference
  Calibration report



Optional Extras

  Gas leak detector
  0-4,000 ppm CO sensor with H2 compensation - standard in UK
  0-1,000 ppm or 0-100 ppm NO sensor
  A range of Type K thermocouple probes
  2 psi +/- 160 mbar pressure sensor
  Bluetooth data transfer
  KMIRP infra-red thermal paper printer
  KANE ImPrint infra-red plain paper printer
  NiMH rechargeable batteries
  220v fast charger
  12v in-vehicle charger
