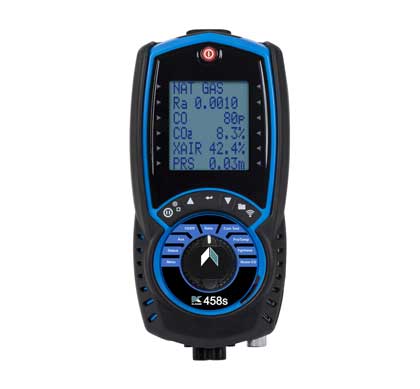

Kane 458s Flue Gas Analyser

Kane 458s Flue Gas Analyser

The Kane 458s Flue Gas Analyser features direct CO, CO2 & CO sensor protection.

Kane 458s Features:

  • Structured commissioning test
  • Rotary dial & 6 line display
  • Data hold, log & print with user details to optional printer
  • Combustion - Pressure - Let-by & Tightness
  • Temperature - CO build up - Commission test
  • 10 year 'no quibble' warranty when recertified by KANE
Get a Quote
Kane

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • Tests domestic gas, oil, biomass & some commercial appliances
  • Latest upgradeable sensor technology
  • Easy to use rotary dial
  • Purge pump protection prevents accidental damage to CO sensor
  • Wireless as standard
  • Hydrogen (H2 ) ready – up to 20% blend



Application

  • Install & service domestic oil & gas appliances
    • additional sensors to suit applications
  • Safety checks – CO in rooms or around appliances
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • CO2 direct with an Infra-Red sensor 0-20%
  • CO 0-2,000ppm
  • Differential temperature
  • High accuracy differential pressure meter +/- 80mbar
  • O2 0-21% (option)
  • NO 0-600ppm (option)
  • High Range CO 0-10,000ppm (option)

Calculates

  • O2
  • CO/CO2 ratio
  • Excess air
  • Combustion efficiency
  • NOx (option)

Fuel Types

  • Natural Gas
  • LPG
  • Wood Pellets
  • Butane
  • Light oil
  • Propane

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • USB charger
  • Quick reference guide & analyser calibration certificate
