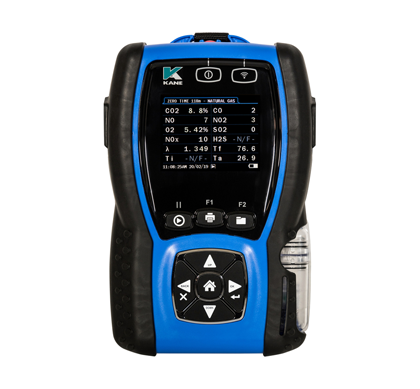

Kane 975 Industrial Flue Gas Analyser

The Kane 975 features the latest flue gas analyser technology with options for up to 7 gas measurements CO (0-10,000 ppm), CO2, O2, NO, NO2, SO2 & H2S. This product is ideal for larger installations and has built in over-range protection. The intuitive user keypad and buttons with large full colour graphic display make the unit easy to use.

Kane 975 Key Features

  • Low energy wireless module
  • Infra-red printer link with customised printer header
  • Logs & stores up to 40,000 test results for easy transfer to PC
  • Long life battery recharged in situ
  • High suction double headed pump, ideal for high stack pressure in large chimneys
  • Supplied with Teflon lined flue probe
  • Heavy duty waterproof case with custom foam insert
Get a Quote
Kane

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Applications

  • Installation, commissioning & servicing of industrial/commercial oil, gas or biomass appliances
  • Safety checks
    • CO in a room or around an appliance
  • Combustion performance checks
  • Combustion efficiency checks
  • Flue Draught

Measures

  • O2 0-21%
  • CO 0-10,000ppm (hydrogen compensated)
  • Differential pressure
  • Temperature - inlet / flue gas / differential / ambient

* Choose up to 5 additional sensors

  • CO 0-10%
  • CO2 0-20%
  • NO 0-5,000ppm
  • NO 2 0-1,000ppm
  • SO 2 0-100ppm
  • SO 2 0-5,000ppm
  • H2S 0-200ppm

Calculates

  • CO2 - 0-99%
  • CO/CO2 ratio
  • Excess air
    • NOx (if NO sensor fitted)
  • Combustion efficiency

Fuel Types

  • Natural Gas (x2)
  • Wood Pellets
  • Kinsale Gas
  • Heavy oil
  • LPG
  • Coal
  • Town Gas
  • Bio Gas
  • Gascor
  • Propane
  • User fuel (x5)
  • Anthracite
  • LPG
  • Butane
  • Coke
  • 28 sec oil

Sensor Options

  • H2S 0-200ppm
  • High range CO sensor instead of standard CO sensor
  • NO 2 sensor in place of any other toxic gas sensor
  • SO 2 sensor in place of any other toxic gas sensor
  • CO 2 Infra-red sensor: range 0-20%

Box Contents

  • Analyser
  • Probe
  • Pressure connectors
  • Charger
  • Quick reference guide
  • Calibration report
  • Heavy duty case
