Home › Gas Analysers › Safety › MSA Altair 4 Multi-Gas Detector

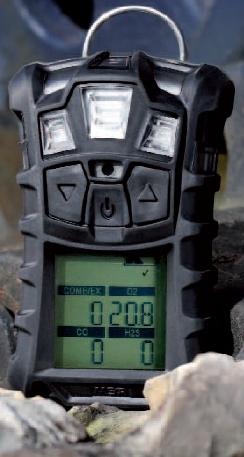

MSA Altair 4 Multi-Gas Detector
This product is now obsolete and has been replaced by the Altair 4x Multigas Detector.
The ALTAIR 4 is a reliable multi-gas detector that measures O2, H2S, CO and combustible gas. Besides being one of the most compact multi-gas detectors available, it has an extremly durable rubberized housing and is very easy to use.
The ALTAIR 4 is available with the option of MotionAlert - a unique feature in the world of portable gas detection. The detector's alarm is triggered if the user remains motionless, alerting those nearby. The InstantAlert alarm allows the user to manually activate the detector's alarm system. It is a standard feature across the ALTAIR 4 range.
 MotionAlert & InstantAlert alarm features for additional safety
IP 67 and designed to pass 3m droptest
Triple Alarm System: super-bright LEDs on the detector's top and bottom, audible alarm of 95 dB at 30 cm and strong vibrating alarm as a standard.
Large rubberized buttons for easy operation
16-hour battery run time
Simple bump check with checkmark for 24 hours
Easy to read display
Robust, easy to grip design
Durable suspension clip
MSA Link ready
Hazards
Combustible Atmosphere
Ex
Ox
Oxygen Deficiency
Tox
Toxic Atmosphere (IDLH)
Toxic Atmosphere (Non-IDLH)
Approvals & Standards
Europe:
ATEX II 2 G EEx ia d IIC T4,
Tamb = -20 °C to +50 °C
USA & Canada:
UL, Class I, Div. 1, Groups A B, C, D,
Class II, Div. 1 Groups F & G. T4,
Tamb = -20 °C to +50 °C
CSA, Class I, Div. 1, Groups A B, C, D
Australia & New Zealand:
IEC Ex ia d I/IIC T4,
ANZEx ia s I/IIC T4 [Zone 0]
|
Applications
Chemical
CO-monitoring in iron and steel production
Fire Fighting
Food Processes
Foundries & Metal Production
Hazardous material storage
Hazardous Materials
Oil & Gas
Paper & Pulp
Pharmaceuticals
Waste & Water Treatment
Ordering Codes
10092018 - ALTAIR 4 Met [LEL 5.0% Vol]-O2-CO-H2S
with MotionAlert
10092020 - ALTAIR 4 Met [LEL 5.0% Vol]-O2-CO-H2S
10092071 - ALTAIR 4 Met [LEL 4.4% Vol]-O2-CO-H2S
with MotionAlert
10092019 - ALTAIR 4 Met [LEL 4.4% Vol]-O2-CO-H2S
10092072 - ALTAIR 4 Met [LEL 4.4% Vol]-O2-CO-H2S [mg/m3]
with MotionAlert
10092073 - ALTAIR 4 Met [LEL 4.4% Vol]-O2-CO-H2S [mg/m3]
10089100 - ALTAIR 4 Pen-O2-CO-H2S
with MotionAlert
10089097 - ALTAIR 4 Pen-O2-CO-H2S
10089101 - ALTAIR 4 Pen-O2-CO
with MotionAlert
10089098 - ALTAIR 4 Pen-O2-CO
10091474 - ALTAIR 4 Pen-O2-H2S
with MotionAlert
10091473 - ALTAIR 4 Pen-O2-H2S
|
Data Sheet
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
