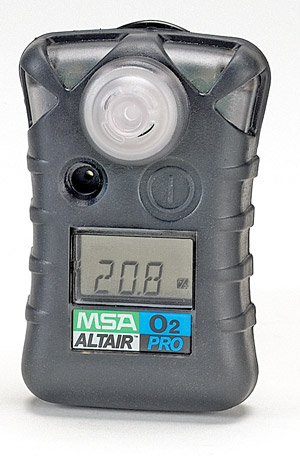

MSA Altair Pro Single-Gas Detector


This product is now obsolete.

ALTAIR PRO features a broad range of field proven, fastresponding 20 series sensors. Choose from O2, CO, H2S, NH3, Cl2, ClO2, HCN, NO2, PH3 and SO2 configurations. All sensors are simple to fit reducing instrument down time.

Some outstanding features include:

  1-button operation
  Bump check confirmation [lasts 24 hours]
  Configurable alarm setpoints
  High performance audible, visual and vibrating alarm
  Full data-logging as standard
  IP67 rated
  Fast-responding 20 series sensors
  Easy to read gas concentration display
  Replaceable sensor and CR2 battery
  Multiple clip options

The replacement of both the sensors and batteries is incredibly simple, minimising any maintenance downtime. The highly efficient, commercially available battery ensures the ALTAIR PRO will run for over a year when used over a standard working week.

ALTAIR PRO features an extra thick rubberised housing which provides resistance to water and dust ingress. With the rugged suspension clip fitted as standard the ALTAIR PRO can be securely attached to clothing. A highly comprehensive datalogging facility is standard on ALTAIR PRO. Via the built-in Infra-Red link data is transferred to a PC where information can be assessed quickly and easily.

Hazards

  Fire
  Flame
  Oxygen Deficiency
  Toxic Atmosphere (IDLH)
  Toxic Atmosphere (Non-IDLH)

Approvals & Standards

  Europe: ATEX II 2G EEx ia IIC T4 -20°C to +50°C
  US and Canada: CSA cUL for Class 1, Division 1, Groups A, B, C and D US Bureau of Shipping
  Australia: Ex ia IICTa -20°C to +50°C


Applications

  Chemical
  CO-monitoring in iron and steel production
  Fire Fighting
  Oil & Gas

Part Numbers

  10074137 ALTAIR PRO, O2, 19.5/23 Vol %
  10074135 ALTAIR PRO, CO, 25/100 ppm
  10076724 ALTAIR PRO, Steel CO, 75/200 ppm
  10076725 ALTAIR PRO, H2S, 5/10 ppm
  10076730 ALTAIR PRO, NH3, 25/50 ppm
  10076716 ALTAIR PRO, Cl2, 0.5/1 ppm
  10076717 ALTAIR PRO, ClO2, 0.1/0.3 ppm
  10076729 ALTAIR PRO, HCN, 4.7/10 ppm
  10076731 ALTAIR PRO, NO2, 2/5 ppm
  10076735 ALTAIR PRO, PH3, 0.3/1 ppm
  10076736 ALTAIR PRO, SO2, 2/5 ppm


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
