Oldham iTrans

Oldham iTrans

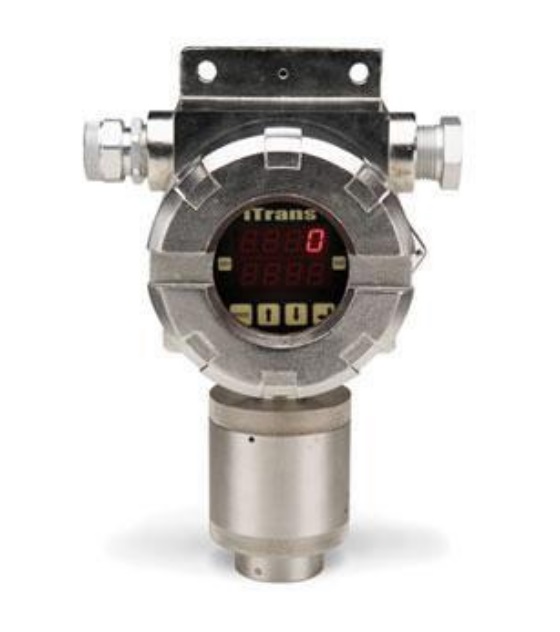

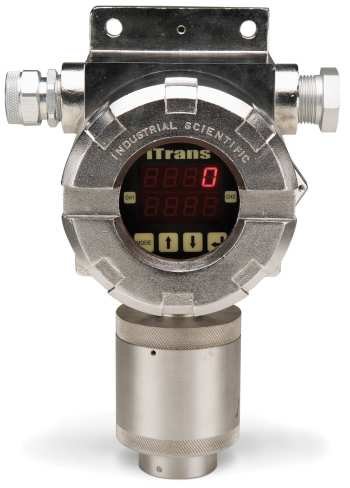

The Oldham iTrans fixed-point gas monitor employs an intelligent electronics platform to provide one or two points of detection from a single head for maximum flexibility, superior performance and lower installation costs.

Key Features

  • Unique dual sensor Platform (remote placement)
  • 4-20 mA and ModBus RTU interface for direct communication to any control device or PLC
  • Optional built-in relays
Get a Quote
Oldham

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

  • • Highly visible, split-screen LED display
  • • Detects O2, combustible and toxic gases
  • • Available in stainless steel

Able to monitor any combination of gases for a specific environment, iTrans utilizes our industry-proven "smart" sensor technology and safety features including automatic sensor recognition, access code security, and zero and cal fault protection - all enclosed within an explosion-proof aluminum or stainless steel housing.

The microprocessor-controlled transmitters are capable of independent operation or multi-point system configuration. With optional on-board relays, the monitor has the added ability of stand-alone operation, activating alarms, horns, or fans and can also shut down a system without the need to wire back to a central control panel.

iTrans & iTrans 2™ Replacement Sensors
  • 77024404 Combustible gas - catalytic (LEL) replacement sensor for iTrans and iTrans 2

  • 77024412 Oxygen (O2) replacement sensor for iTrans and iTrans 2

  • 77024420 Hydrogen Sulfide (H2S) replacement sensor for iTrans and iTrans 2

  • 77024438 Carbon Monoxide (CO) sensor for iTrans and iTrans 2

  • 77024446 Hydrogen (H2- ppm) replacement sensor for iTrans and iTrans 2

  • 77040003 Ammonia (NH3) replacement sensor for iTrans (rev 9 or above) and iTrans 2

  • 77024461 Hydrogen Chloride (HCl) replacement sensor for iTrans and iTrans 2

  • 77024479 Chlorine (Cl2) replacement sensor for iTrans and iTrans 2

  • 77024487 Nitric Oxide (NO) replacement sensor for iTrans and iTrans 2

  • 77024495 Nitrogen Dioxide (NO2) replacement sensor for iTrans and iTrans 2

  • 77024503 Sulfur Dioxide (SO2) replacement sensor for iTrans and iTrans 2

  • 77024511 Chlorine Dioxide (ClO2) replacement sensor for iTrans and iTrans 2

  • 77025872 Phosphine (PH3) replacement sensor for iTrans and iTrans 2

  • 77025898 Hydrogen Cyanide (HCN) replacement sensor for iTrans and iTrans 2

  • 77027944 Carbon Monoxide (CO) - Hydrogen-Null replacement sensor for iTrans and iTrans 2

  • 78105035 Methane 100% vol infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED

  • 78105036 Methane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED

  • 78105037 Propane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED

  • 78105039 Pentane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED

  • 78105040 Butane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED

  • 78105043 Hexane 100% LEL infrared(IR) replacement sensor for iTrans 2 only - NOT CSA CERTIFIED

  • 78105044 CO2 100% vol infrared(IR) replacement sensor for iTrans 2 only

  • 78105045 CO2 5%vol infrared(IR) replacement sensor for iTrans 2 only

  • 78105046 CO2 0.5%vol infrared(IR) replacement sensor for iTrans 2 only

iTrans & iTrans 2™ Mounting Kits
  • 78104312-STND Duct mount kit for iTrans & iTrans 2 catalytic/toxic/oxygen sensors (also iTrans 2 infrared sensors)

iTrans & iTrans 2™ Parts and Accessories
  • 78100008 iTrans Chassis without Relays (iTrans Rev.8 or below)

  • 78104635 iTrans Chassis without Relays (iTrans Rev.9 or above)

  • 78100008R iTrans Chassis with Relays (iTrans Rev.8 or below)

  • 78104635R iTrans Chassis with Relays (iTrans Rev.9 or above)

  • 78100008-S Stainless Steel iTrans chassis without Relays (iTrans Rev.8 or below)

  • 78104635-S Stainless Steel iTrans chassis without Relays (iTrans Rev.9 or above)

  • 78100008R-S Stainless Steel iTrans chassis with Relays (iTrans Rev.8 or below)

  • 78104635R-S Stainless Steel iTrans chassis with Relays (iTrans Rev.9 or above)

  • 78105049 itrans 2 Chassis with electronics module, without relays

  • 78105049R itrans 2 Chassis with electronics module, with relays

  • 78105049H itrans 2 Chassis with electronics module, with HART

  • 78105049HR itrans 2 Chassis with electronics module, with HART & Relays

  • 78105049-S Stainless Steel itrans 2 Chassis with electronics module, without relays

  • 78105049R-S Stainless Steel itrans 2 Chassis with electronics module, with relays

  • 78105049H-S Stainless Steel itrans 2 Chassis with electronics module, with HART

  • 78105049HR-S Stainless Steel itrans 2 Chassis with electronics module, with HART & Relays

  • 77023760 iTrans and iTrans 2 terminal power board without relays (iTrans Rev.9 or above)

  • 77022184 iTrans and iTrans 2 terminal power board with relays (iTrans Rev.9 or above)

  • 77026078 iTrans and iTrans 2 terminal board , Remote housing (all revisions)

  • 77023812 iTrans Main electronics board assembly & display module (iTrans Rev.8 or below)

  • 77023919 iTrans and iTrans 2 Main electronics board assembly & display module (iTrans Rev.9 or above)

  • 77026988 iTrans Stainless Steel Smart sensor enclosure w boards includes (rev.8 or below)

  • 77025888 iTrans Smart sensor enclosure Asy w/ boards includes 77024812 (rev.8 or below)

  • 77025948 iTrans and iTrans 2 Smart sensor enclosure Asy w/ boards includes 77024812 (rev.9 or below)

  • 77026912 iTrans and iTrans 2 Stainless Steel Smart sensor enclosure Asy w/ boards (iTrans Rev.9 or above)

  • 77026367 iTrans remote sensor enclosure with terminal board (itrans rev.8 or below)

  • 77025286 iTrans Sensor enclosure for CL2, CLO2, NH3 (iTrans Rev.9 or above)

  • 77026094 iTrans Enclosure for LEL, O2, Toxic (iTrans Rev.9 or above)

  • 77036379 iTrans and iTrans 2 remote sensor enclosure with terminal board (iTrans rev.9 or above)

  • 77024812 iTrans Sensor Board Stack (iTrans rev.8 or below)

  • 77024396 iTrans and iTrans 2 Sensor Board Stack (rev.9 or above)

  • 77036303 iTrans 2 electronics module (rev.9)

  • 77023927 iTrans and iTrans 2 Smart sensor O2

  • 77022606 iTrans and iTrans 2 Smart sensor LEL

  • 77023828 iTrans and iTrans 2 Smart sensor H2S

  • 77023836 iTrans and iTrans 2 Smart sensor CO

  • 77023513 iTrans & iTrans 2 calibration cup

  • 77023588 iTrans & iTrans 2 splash guard

  • 77015303 iTrans & iTrans 2 splash guard / remote cal cup for catalytic/toxic/oxygen sensors and iTrans 2 infrared sensors

  • 77018083 Replacement filter for 77015303

  • 77014579 iTrans and iTrans 2 by-pass/flow-thru kit (not suitable for iTrans infrared sensor)

  • 77024065 iTrans and iTrans 2 calibration wand

  • 17049927 iTrans and iTrans 2 Gore-Tex water barrier

  • 77025971 iTrans Ribbon cable

  • 77022333 iTrans Keypad

  • 37000352 Flame Arrestor
