RAE Systems MeshGuard

RAE Systems MeshGuard

The RAE Systems MeshGuard is a battery-powered wireless gas detector. One of the key building blocks of the MeshGuard intelligent network of connected sensors, the RAE Systems MeshGuard is a battery-powered wireless gas detector. The MeshGuard network is used for gas detection in oil and gas applications, as well as industrial safety. The MeshGuard system has been designed for rapid deployment in areas where low cost/high ROI solutions are required. Toxic and flammable gases are detectable with the MeshGuard, which also has field replaceable precision sensors.

RAE Systems MeshGuard Key Features:

  • Self-forming wireless network; units come online automatically
  • Compact and lightweight
  • IP-65 rated weather resistant, and splash guard equipped for sensor protection
  • Multiple controller options for real-time wireless data collection and viewing
  • Self-healing network automatically routes data back to controller through best wireless path available
  • Battery powered operation for up to 6 months
  • SolarPak provides 24/7 uptime
  • Intrinsically Safe
  • Magnetic mounting option for quick and easy MeshGuard installation
Get a Quote
RAE Systems

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.


MeshGuard Applications

  • Oil and gas drilling operations
  • Oil and gas production
  • Plant maintenance turnarounds
  • Industrial safety
  • Tank farms
  • Shipyards and maritime

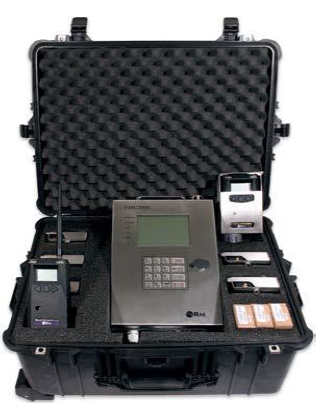

MeshGuard System Kits
  • D01-M144-203 MeshGuard Hydrogen Sulfide Compliance Kit 6x H2S Detectors + 1x Router Disposable batteries needs to be ordered separately. See also *note below. Minimum 15 disposable batteries are recommended to be ordered separately.
  • D01-M044-203 MeshGuard Hydrogen Sulfide Extension Kit (same as Compliance Kit w/o controller) 6x H2S Detectors + 1x Router Disposable batteries needs to be ordered separately. See also *note below. Minimum 15 disposable batteries are recommended to be ordered separately.
  • D01-M140-003 MeshGuard Hydrogen Sulfide Compliance Kit 4x H2S Detectors Disposable batteries needs to be ordered separately. See also *note below. Minimum 12 disposable batteries are recommended to be ordered separately.
  • D01-M188-203 MeshGuard Carbon Monoxide Compliance Kit 6x CO Detectors + 1x Router Disposable batteries needs to be ordered separately. See also *note below. Minimum 15 disposable batteries are recommended to be ordered separately.
  • D01-0001-001 MeshGuard LEL Kit including external power paks (comes in 3 ruggedized transportation cases) 4x LEL Detectors Disposable batteries needs to be ordered separately. See also *note below. Minimum 8 disposable batteries are recommended to be ordered separately.
  • D01-0002-001 MeshGuard LEL and H2S Kit including external power paks (comes in 3 ruggedized transportation cases) 4x LEL Detectors + 4x H2S Detectors Disposable batteries needs to be ordered separately. See also *note below. Minimum 8 disposable batteries are recommended to be ordered separately.
  • *Note: All Kits will not include disposable batteries. The batteries need to be ordered separately and will be shipped separately as dangerous goods. Please use following part numbers to order the batteries as required: P/N: 500-0111-000-01: Battery, Cell, Li/SO Cl2, D-Size, 3.6V, each or P/N: 500-0111-000-05: Battery, Cell, Li/SO Cl2, D-Size, 3.6V, pack of 5
    Accessories included in the MeshGuard Compliance Kit
    • D01-0300-001 Kit, MeshGuard Detector stainless steel mounting bracket, with pole mounting
    • 019-2034-010 SENSOR FILTER, PACK of 10
    • 019-3020-000 CALIBRATION CAP
    • 081-0014-000 SERVICE TOOL
    • 430-0377-002-10 O-ring for sensor cover, PACK OF 10
    • 430-0377-004-10 O-ring for filter cover, PACK OF 10
    • 430-0377-003-10 O-ring for battery cover, PACK OF 10
    • 300-3002-000 ANTENNA, EXTENSION, 2.4GHZ, SMA CONNECTOR
    • D01-4013-000 QUICK START GUIDE
    • D01-4005-001 RESOURCE CD
      Accessories included in the MeshGuard Compliance Kit
      • F01-0001-001 KIT, MULTI CONTROLLER, 2.4GHZ 1.5DB, FMC2000 Supports 24 detectors
      • W021-0020-000 RadiantReader Real-Time Wireless Communication. Modem Mesh 2.4GHZ. STD.
      • W021-0030-000 RadiantReader - Russia Real-Time Wireless Communication. Modem Mesh 2.4GHZ. STD.
        MeshGuard Detectors
        • D01-B001-011 MeshGuard Detector, Hydrogen Sulfide H2S Range: 0.1 to 100 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B00G-011 MeshGuard Detector, Flammables LEL* Range: 1 to 100% LEL Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B00J-011 MeshGuard Detector, Flammables LEL IR* Range: 1 to 100% LEL Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B003-011 MeshGuard Detector, Carbon Monoxide CO Range: 0 to 2000 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B00P-011 MeshGuard Detector, Carbon Dioxide CO2 Range: 0 to 5% vol Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B00Q-011 MeshGuard Detector, Carbon Dioxide CO2 Range: 0 to 100% vol Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B00D-011 MeshGuard Detector, Oxygen Range: 0 to 25% vol Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B00A-011 MeshGuard Detector, Ammonia NH3 Range: 0 to 100 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B008-011 MeshGuard Detector, Chlorine CI2 Range: 0 to 10 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B005-011 MeshGuard Detector, Sulfur Dioxide SO2 Range: 0.1 to 20 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
        • D01-B006-011 MeshGuard Detector, Sulfur Dioxide SO2 Range: 0.1 to 100 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered separately.
          Accessories
          • F03-0002-000 Stainless Steel PowerPak (4 cell) - no charger
          • F04-B111-100 Mesh Router, 2.4 GHz Disposable batteries needs to be ordered separately. See also **note above. Minimum 1 disposable battery is recommended to be ordered separately."
          • F04-C111-100 EchoView, 2.4 GHz Disposable batteries needs to be ordered separately. See also **note above. Minimum 1 disposable battery is recommended to be ordered separately."
          • F06-0002-000 SolarPak Kit with LEL detector and PowerPak - US (Includes LEL detector in Stainless Steel housing, PowerPak, Mounting plate, SolarPak, Pole/Wall mount, AC charger, all in a single Pelican case)
          • F06-0002-001 SolarPak Kit with LEL detector and PowerPak - EU (Includes LEL detector in stainless steel housing, PowerPak, Mounting plate, SolarPak, Pole/Wall mount, AC charger, all in a single Pelican case)
          • F06-0002-002 SolarPak Kit with LEL detector and PowerPak - UK (Includes LEL detector in stainless steel housing, PowerPak, Mounting plate, SolarPak, Pole/Wall mount, AC charger, all in a single Pelican case)
          • F06-0001-000 SolarPak (Solar panel charger for PowerPak with pole/wall mount assembly)
          • F06-0002-100 SolarPak Kit - (SolarPak, PowerPak Mounting Plate, Pelican Case )
          • F06-3006-000 SolarPak pole/wall mount assembly (no solar panel)
          • F06-3007-000 SolarPak pole/wall mount assembly replacement screws/washers/nuts. Pack of 10.
          • F03-0005-000 Kit, 2 stainless steel PowerPaks (4 cell) + chargers in pelican case (US cables)
          • F03-0005-001 Kit, 2 stainless steel PowerPaks (4 cell) + chargers in pelican case (EU cables)
          • F03-0005-002 Kit, 2 stainless steel PowerPaks (4 cell) + chargers in pelican case (UK cables)
          • D01-3003-000 Connection cable for RAE PowerPak to MeshGuard 1m (C1D1 / Zone 0)
          • D01-3004-000 Connection cable for RAE PowerPak to MeshGuard 5m (C1D1 / Zone 0)
          • 701-0010-200 Transportation box for 2 PowerPaks (PowerPak Kit)
          • 701-0010-300 Transportation box for SolarPak (Pelican case with custom foam that holds SolarPak, PowerPak, detector, mounting plate, AC charger)
          • 701-0021-000 Transportation box for 8 MeshGuard detectors (Extenstion Kit)
          • 701-0027-000 Transportation box for controller and 8 MeshGuard detectors (Compliance Kit)
          • F03-3016-000 Steel mounting board Kit for PowerPak
          • D01-0300-001 Kit, MeshGuard Detector stainless steel mounting bracket, with splash guard, with pole mounting
          • D01-0300-002 Kit, MeshGuard Detector stainless steel mounting bracket, with splash guard, with magnet mounting
          • 019-2055-000 MeshGuard detector stainless steel mounting bracket
          • 033-2004-000 Splash Guard for stainless steel mounting bracket
          • D01-3002-000 Magnet Mount, Stainless Steel, MeshGuard
          • 019-2052-000 Pole Mount, Aluminium, MeshGuard
          • 032-0102-003 Sensor, H2S for MeshGuard, 0 to 100 ppm
          • 032-0100-000 Sensor, CO for MeshGuard, 0 to 2000 ppm
          • D01-3012-000 Sensor, CO2 IR for MeshGuard, 0 to 5% Vol
          • D01-3013-000 Sensor, CO2 IR for MeshGuard, 0 to 100%Vol
          • 014-0212-000 Sensor, LEL for MeshGuard, 0 to 100% LEL
          • D01-3011-000 Sensor, LEL IR for MeshGuard, 0 to 100% LEL
          • 045-1113-000 Sensor, SO2 for MeshGuard, 0 to 20 ppm
          • 045-1113-000 Sensor, SO2 for MeshGuard, 0 to 100 ppm
          • 045-1116-000 Sensor, Cl2 for MeshGuard, 0 to 10 ppm
          • 045-1118-000 Sensor, NH3 for MeshGuard, 0 to 100 ppm
          • 046-1161-000 Sensor, O2 for MeshGuard, 0 to 25 % vol
          • 081-0014-000 Maintenance tool for MeshGuard battery and sensor replacement
          • 019-3020-000 Detector Calibration Cap
            Consumables and Spares
            • 019-2034-010 SENSOR FILTER, PACK of 10
            • 019-2046-010 Carbon Filter, CO Sensor, MeshGuard, pack of 10
            • 500-0111-000-01 Battery, Cell, Li / SO Cl2, D-SIZE, 3.6V, each
            • 500-0111-000-05 Battery, Cell, Li / SO Cl2, D-SIZE, 3.6V, pack of 5
            • 550-7024-000 Antenna,rubberized, 5dBi,SMA Connector(standard on detector and controller)
            • D01-3005-000 Antenna, Fiberglass, Outdoor, 8 dbi, pole mount, 10m/30ft extension cable
            • D01-3005-001 External Antenna with 10m RF cable and lightning arrester, N(MALE)
            • 019-2015-000 Sensor cover, MeshGuard
            • 430-0377-002-10 O-ring for sensor cover, PACK OF 10
            • 019-2014-000 Battery cover, MeshGuard
            • 430-0377-003-10 O-ring for battery cover, PACK OF 10
            • 019-2025-000 Filter Cover, Stainless Steel, MeshGuard
            • 430-0377-004-10 O-ring for filter cover, PACK OF 10
            • 490-3027-002 Replacement keys for FMC-2000 controller.
            • 430-4031-000-10 Replacement screws and washers for detector steel mounting bracket. Pack of 10.
            • F03-3014-000 CHARTGER KIT, RAE POWERPAK, W/ EU POWER CABLE
            • F03-3014-001 CHARTGER KIT, RAE POWERPAK, W/ US POWER CABLE
            • F03-3014-002 CHARTGER KIT, RAE POWERPAK, W/ UK POWER CABLE
            • F01-3010-001 Replacement wall mounting bracket for FMC-2000
            • F03-3021-000 Replacement screws for PowerPak steel mounting board.
              Fixed Head Wireless Relays
              • F08-0011-010 KIT,RAEPOINT W/ ALARM BAR,REMOTE,2.4G
              • F08-0001-010 KIT,RAEPOINT W/ ALARM BAR,REMOTE,2.4G,ATEX/IECEX
              • F08-0011-000 RAEPOINT,RRA2000.CSA.REMOTE.RM2400A_2.4GHZ.W/ O ALARM BAR.STD. KIT
              • F08-0001-000 RAEPPOINT, RRA2000.ATEX/IECEX.REMOTE.RM2400A_2.4GHZ.W/O ALARM BAR.STD.KIT
              • F08-0013-000 RAEPOINT,RRA2000.CSA.ROUTER.RM2400A_2.4GHZ.W/ O ALARM BAR.STD. KIT
              • F08-0003-000 RAEPOINT, RRA2000.ATEX/IECEX.ROUTER.RM2400A_2.4GHZ.W/O ALARM BAR.STD.KIT
                Accessories
                • 550-7024-000 Antenna, rubberized, 5dBi, SMA Connector (standard)
                • D01-3005-000 Antenna, Fiberglass, Outdoor, 8dBI, Pole mount, 10m/30ft extension cable
                • F08-2005-000 Replacement steel antenna base cover (for standard antenna)
                  Calibration Gases
                  • GASNH3-50-N2-58 50 PPM AMMONIA IN NITROGEN 58L
                  • GASCO-500-AIR-34 500 PPM CARBON MONOXIDE IN AIR 34L
                  • GASCO2-5000N2-34 5000PPM(0.5%) CO2INN2 34L
                  • GASCL2-5-N2-58 5 PPM CHLORINE IN NITROGEN 58L
                  • GASH2S-25-N2-58 25 PPM HYDROGEN SULPHIDE IN NITROGEN 58L
                  • GASCH4-22-AIR-58 2.2% CH4 IN AIR (ATEX = 50% LEL) 58L
                  • GASCH4-25-AIR-58 2.5% CH4 IN AIR (US = 50% LEL) 58L
                  • GASSO2-5-N2-58 5 PPM SULPHUR DIOXIDE IN NITROGEN 58L
                    Regulators and Kit Case
                    • REG-0.50 FIXED FLOW REG. 0.5 LPM
                    • REG-1.00 FIXED FLOW REGULATOR 1 LPM
                    • CK-01 Calibration kit case (no gas or regulator) holds two 34 or 58 liter cylinders
