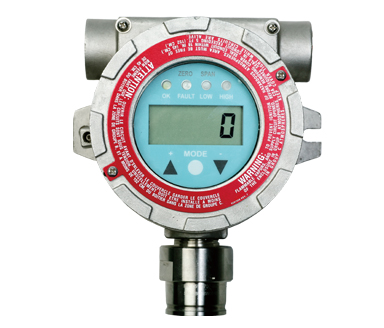

RAE Systems RAEGuard IR

Fixed Hydrocarbon Gas Monitor, 4-20 mA transmitter

The RAEGuard IR is a permanently mounted (fixed) hydrocarbon gas transmitter that operates from 9 to 36 VDC power source and provides a 4-20mA analog output in the range of 0-100%LEL hydrocarbon equivalent or ppm concentration of CO2.

The RAEGuard IR is based on RAE's patented technology of non-dispersive infrared (NDIR) for methane, hydrocarbon, or carbon dioxide measurement.

The microprocessor based circuit is housed in an explosion-proof enclosure, the RAEGuard IR is equipped with a local digital display of the gas concentration and function keys for performing calibration.

The RAEGuard IR is operated with a standard 4-20mA controller or as a stand-alone sensor module.

Key Features

  Non-dispersive infrared technology with built-in temperature compensation
  4-20mA analog output of 0-100%LEL hydrocarbons including methane, acetylene, propane or 0-50,000 ppm of CO2
  No poison problem on catalytic beads
  Explosion-proof enclosure for hazardous environment application
  Magnetic key interface eliminates need to open explosion-proof housing when making calibration or other minor adjustments
  Long life infrared source and detector
  Operation at 9 to 36 VDC
  Dry contact output (<30V, 2A)


  Oil production
  Chemical plants
  Industrial safety
  Waste water treatment plants
  Shipyard and maritime
  Power plants
  Steel mills

Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
