3M Scott Safety ACSfx Self-Contained Breathing Apparatus 3M Scott Safety ACSfx Self-Contained Breathing Apparatus 3M Scott Safety ACSfx Self-Contained Breathing Apparatus

3M Scott Safety ACSfx Self-Contained Breathing Apparatus

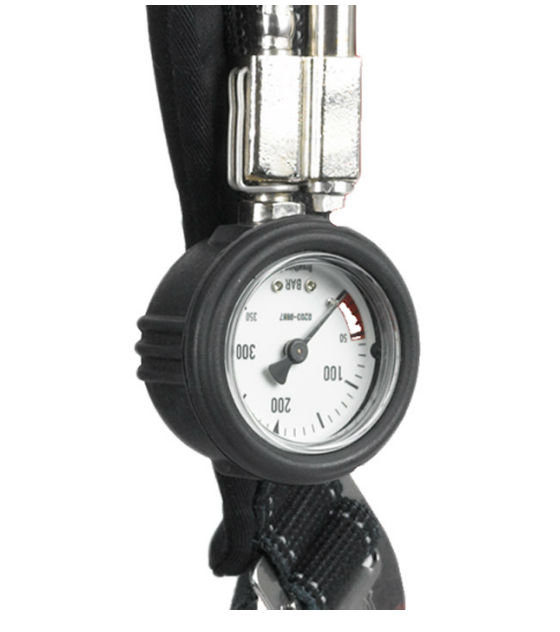

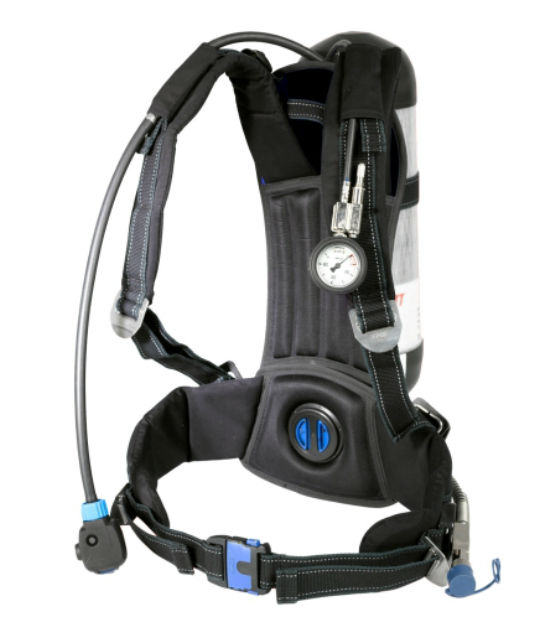

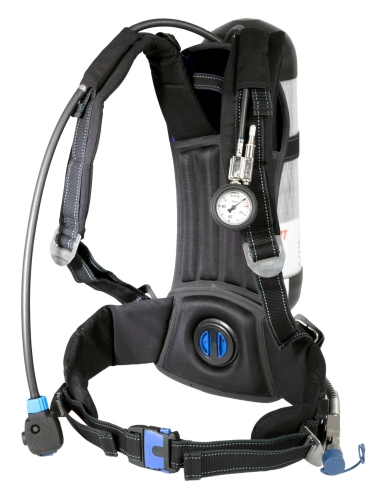

The 3M Scott Safety ACSfx is an open circuit, self-contained, compressed air breathing apparatus. It consists of an adjustable back plate, padded carrying harness and pneumatic system, containing a cylinder connector, reducer, pressure gauge, whistle and demand valve.

Key Features

  • Approved to EN137: 2006 Class II, incorporating the stringent flame engulfment test
  • Lightest BA set in its class3 point adjustable backplate
  • Proven Tempest Demand Valve
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The Scott ACSfx is an open circuit, self-contained, compressed air breathing apparatus. It consists of an adjustable back plate, padded carrying harness and pneumatic system, containing a cylinder connector, reducer, pressure gauge, whistle and demand valve.

The ACSfx can be configured in a number of different ways with various size single cylinders. There are also a range of variants available including Airline (AC), and Split Demand Valve Coupling (SDC).

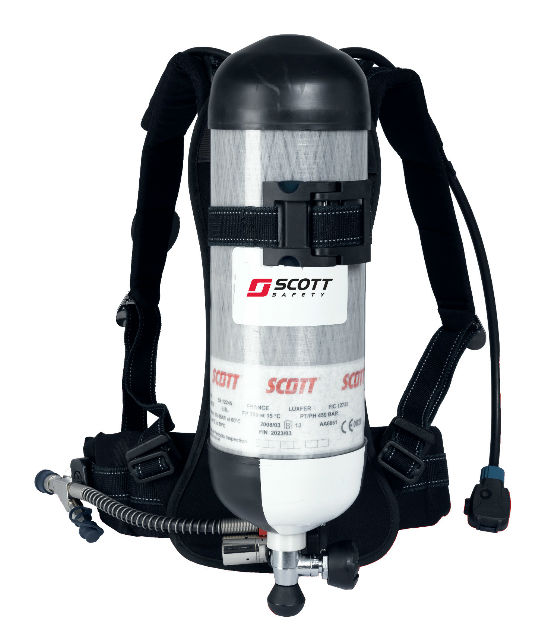

The ACSfx is used in conjunction with a range of composite or steel cylinders and the choice of Vision 3, Panaseal, Panavisor or Promask PP facemask.

Applications

The ACSfx is specifically designed as a professional fire fighting SCBA, but is also suitable for providing respiratory protection in any IDLH environment.

ACSFX
  • 2018329 ACSFX ACSfx self contained breathing apparatus for single cylinder use, comprising lightweight flexible backplate with Kevlar blend cylinder band and fully adjustable padded body harness with swivel movement waistbelt.

  • 2018363 ACSFX-AC ACSfx fitted with Airline attachment*.

  • 2018361 ACSFX-SDC ACSfx fitted with Split demand valve

  • 2018365 ACSFX-AC-SDC ACSfx fitted with Split demand valve and Airline attachment*.

  • 2018864 ACSFX-Y2C ACSfx fitted with Y-piece (2 CEN socket) in demand valve hose

  • * Please note the airline attachment has both air in and air out functionality so therefore serves as both an RSM and decontamination attachment as well as Airline.

  • -QC Cylinder Quick Connect on reducer. Please add suffix -QC to required part number to receive a set fitted with the Quick connect system. Please note cylinder adaptor 2020714 also required - sold seperately.

  • -DUO As above with modified cradle and extended cylinder band to allow single or two cylinder use (Man-200 or Man-300 also required)
