3M Scott Safety Cenpaq Self-Contained Breathing Apparatus

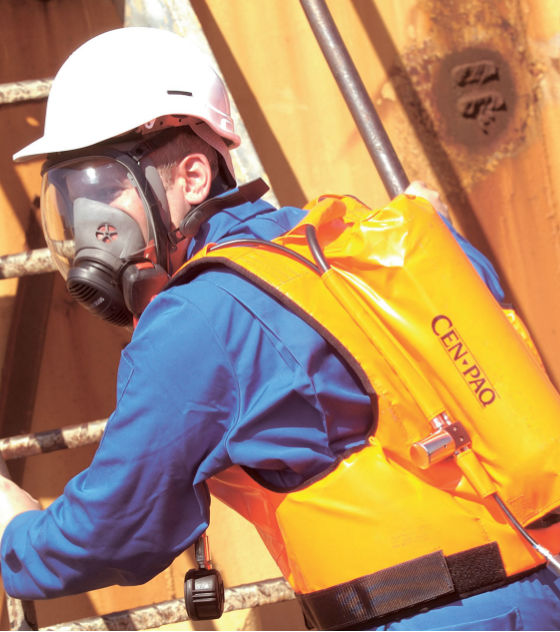

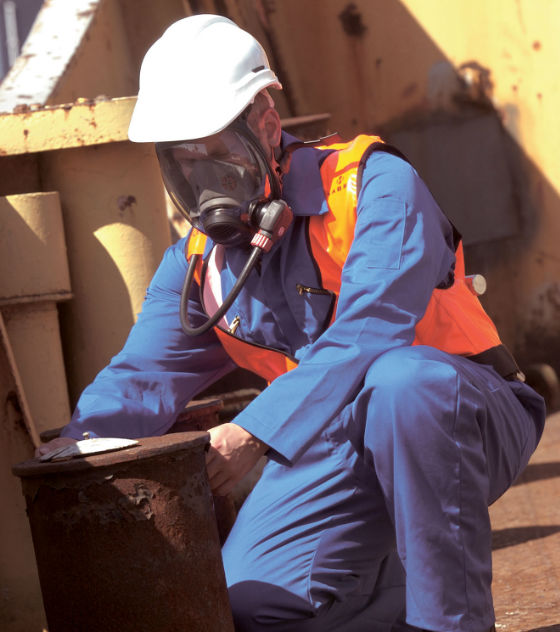

The 3M Scott Safety Cenpaq Self-Contained Breathing Apparatus is a short duration breathing apparatus mounted in an easy to don orange high visibility or black anti-static jacket.

Key Features

  • Proven, effective pneumatic system with first breath mechanism for use with PanaSeal/PanaVisor or Vision 3 facemasks
  • Available in Anti-Static Material
  • CE marked to EN137 & EN139
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The Cen-Paq is ideal for situations where speed of response is required or it can be worn for a shift with the facemask stowed in its pouch to be used when necessary.

Suitable for snatch rescue, intervention and rescue applications where a full sized SCBA may be too bulky.

CE marked in accordance with EN137 and also EN139 when fitted with an airline attachment.

TECHNICAL DESCRIPTION

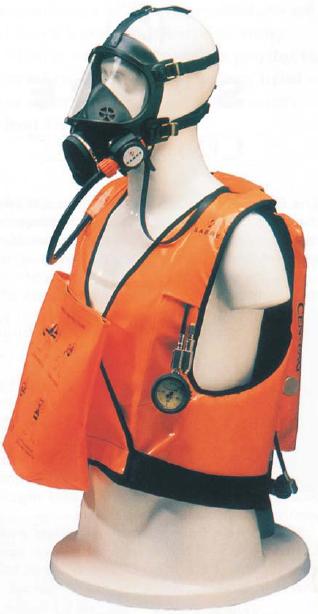

The Cen-Paq is a waistcoat mounted short duration self contained breathing apparatus. It comprises of a waistcoat, a high pressure air cylinder and a two stage pneumatic system with pressure reducer and demand valve. The full face mask (Promask PP or Vision 3) and cylinder are purchased separately.

The full face mask (Promask PP or Vision 3) used with the Cen-Paq in conjunction with the high performance demand valve ensures that positive pressure is maintained within the facepiece, thus providing the highest level of respiratory protection.

The cylinder is mounted in a pouch on the back of the jacket. The two versions of cylinder allow a total duration of 15, 20 or 30 minutes when used at an average wearer consumption rate of 40L/min.

The Cen-Paq utilises a waistcoat fabricated from high visibility PVC and features a double breasted velcro fastening system. The waistcoat is designed to fit a wide range of body sizes with minimal adjustment required. Anti-static jacket options are also available.

CEN-PAQ SCBA
  • 1044778 CEN-PAQ Cen-Paq apparatus with high visibility waistcoat featuring "VELCRO" closure and detachable facemask stowage pouch c/w two stage pneumatic system featuring automatic positive pressure demand valve with by pass. Shoulder mounted combined pressure indicator and 68 bar warning whistle, first stage pressure reducing valve and 200/300 bar cylinder connector hose. Apparatus supplied less facemask and cylinder assembly. Apparatus CE marked to EN 137 in conjunction with Scott facemasks and Scott cylinders. Apparatus weight c/w facemask and 15 minute cylinder - 7.5kg.

  • 1044983 CEN-PAQ-AS Cen-Paq apparatus with black anti-static waistcoat featuring dual buckle closure and high visiblity reflective tape. All other details as above. Apparatus supplied less facemask and cylinder assembly. Apparatus CE marked to EN 137 in conjunction with Scott facemasks and Scott cylinders. Apparatus weight c/w facemask and 15 minute cylinder - 7.5kg.

  • 1044972 CEN-PAQ-AC Cen-Paq airline apparatus, as CEN-PAQ, except jacket features high visibility PVC material, dual buckle closure and waistbelt mounted airline attachment complete with CEN couplings. Apparatus supplied less facemask and cylinder assembly. Apparatus CE marked to EN 137 & EN 139 in conjunction with Scott facemasks and Scott cylinders. Apparatus weight c/w facemask and 15 minute cylinder - 7.9kg.

  • 1044984 CEN-PAQAS- AC Cen-Paq airline apparatus as CEN-PAQ-AC except supplied with anti-static waistcoat. Apparatus supplied less facemask and cylinder assembly. Apparatus CE marked to EN 137 & EN 139 in conjunction with Scott facemasks and Scott cylinders. Apparatus weight c/w facemask and 15 minute cylinder - 7.9kg.

  • 2014958 Cen-Paq airline apparatus as CEN-PAQ-AS-AC except supplied with Foster/ Hansen Mil spec airline attachments (Cen-paq-AS-AC-Foster/Hansen mil spec) Apparatus supplied less facemask and cylinder assembly. Apparatus CE marked to EN 137 in conjunction with Scott facemasks and Scott cylinders. Apparatus weight c/w facemask and 15 minute cylinder - 7.9kg.

  • 2014957 Cen-Paq airline apparatus as CEN-PAQ-AS-AC except supplied Hansen HK airline attachments (Cen-paq-AS-AC-Hansen HK) Apparatus supplied less facemask and cylinder assembly. Apparatus CE marked to EN 137 in conjunction with Scott facemasks and Scott cylinders. Apparatus weight c/w facemask and 15 minute cylinder - 7.9kg.

  • 1044960 CEN-PAQ-30 Cen-Paq apparatus as CEN-PAQ but with larger cylinder pouch to take CYLFWC- 1300 giving rated duration of 30 minutes* Apparatus supplied less facemask and cylinder assembly. Apparatus CE marked to EN 137 in conjunction with Scott facemasks and Scott cylinders. Apparatus weight c/w facemask and 30 minute cylinder - 8.0kg. This apparatus is also available in anti-static and airline versions.

ACCESSORIES
  • 1035686 089.124.01 Testkit only.

  • 1034002 074.286.00 Toolkit only.

  • 1034001 074.285.00 Additional toolkit for airline apparatus.

  • 1023116 035.016.03 Cylinder pressure test gauge 200/300 bar.

  • 1034919 084.177.00 User instruction handbook.

  • 1034744 084.059.00 Breathing apparatus log book - Fire Brigade version.

  • 1034745 084.059.01 Breathing apparatus log book - Industrial version.

  • 2014810 2014810 Moulded B.A. Carrying case for 1 apparatus c/w cylinder.
