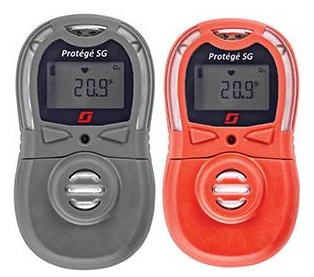

3M Scott Safety Protege SG Gas Detector

3M Scott Safety Protege SG Gas Detector

The 3M Scott Safety Protege SG is a reusable single gas monitor that can be configured to detect 13 gases which provides maximum flexibility to deal with unknown gas hazards.

Key Features

  • Users can change sensors on the go with no programming required
  • One-button activation, adjustable alarm settings and easy-to-read, multi-language display
  • IP66/67 ingress protection
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The Protege SG is a reusable single gas monitor that can be configured to detect 13 gases which provides maximum flexibility to deal with unknown gas hazards.

With interchangeable smart sensors, including both low power IR and electrochemical options, the Protege SG offers maximum versatility in a reusable solution.

Maximum Flexibility:

The plug-and-play swappable smart sensors allow a single monitor to detect several different toxic and combustible gases, supporting multiple applications. Users can change sensors on the go and the monitor will automatically recognise the sensor type and update the gas label on the display. The versatility of the SG allows users to efficiently manage their time. No programming is required when switching sensors.

Easy to Use:

With one-button activation, adjustable alarm settings and an easy-to-read, multi-language display, the Protege SG is intuitive and user-friendly. Turn it on, and the monitor does the rest. With data logging of up to 5,000 events and a customisable LCD display capable of displaying real-time gas readings, the Protege SG is packed with features and functionality, but requires minimal training.

The Protege SG is highly versatile and allows the user to configure the monitor based on their application or specific company requirements.

Durable and Reliable:

The Protege SG is available in IP66/67 ingress protection. Using a Lithium replaceable battery provides service life of 1.5 to 2 years for toxic sensors and two months for Low Power LEL. The sturdy case can withstand the rigours of most industrial environments and is reliable in operating temperatures of -20°C to +50. The Protege SG performs self-diagnostics at start-up giving users confidence to focus on the job. Turn it on and forget about it.

Sensors:

Sensor Options: LEL IR, H2S, CO, O2, O3, HCN, NO, NO2, PH3, SO2, NH3, Cl2 and ClO2.

Accessories:

  • • MasterDock II - Bump and Calibration Station
  • • Calibration Adaptor
  • • PDG Application Software
  • • IR Connect
  • • Calibration Gas
  • • Standard and Demand flow regulators

PROTEGE SG - REUSABLE SINGLE GAS
  • 2032387 RSG-RL20N-B Protege Single Gas - Reusable, Red, Oxygen

  • 2032373 RSG-GL20N-B Protege Single Gas - Reusable, Grey, Oxygen

  • 2032388 RSG-RL20N-C Protege Single Gas - Reusable, Red, Hydrogen Sulfide

  • 2032374 RSG-GL20N-C Protege Single Gas - Reusable, Grey, Hydrogen Sulfide

  • 2032389 RSG-RL20N-D Protege Single Gas - Reusable, Red, Carbon Monoxide

  • 2032375 RSG-GL20N-D Protege Single Gas - Reusable, Grey, Carbon Monoxide

  • 2032390 RSG-RL20N-E1 Protege Single Gas - Reusable, Red, Hydrogen Sulfide, Low Range

  • 2032376 RSG-GL20N-E1 Protege Single Gas - Reusable, Grey, Hydrogen Sulfide, Low Range

  • 2032391 RSG-RL20N-F Protege Single Gas - Reusable, Red, Sulfur Dioxide

  • 2032377 RSG-GL20N-F Protege Single Gas - Reusable, Grey, Sulfur Dioxide

  • 2032392 RSG-RL20N-G Protege Single Gas - Reusable, Red, Chlorine

  • 2032378 RSG-GL20N-G Protege Single Gas - Reusable, Grey, Chlorine

  • 2032393 RSG-RL20N-H Protege Single Gas - Reusable, Red, Nitrogen Dioxide

  • 2032379 RSG-GL20N-H Protege Single Gas - Reusable, Grey, Nitrogen Dioxide

  • 2032394 RSG-RL20N-I Protege Single Gas - Reusable, Red, Chlorine Dioxide

  • 2032380 RSG-GL20N-I Protege Single Gas - Reusable, Grey, Chlorine Dioxide

  • 2032395 RSG-RL20N-J Protege Single Gas - Reusable, Red, Ammonia

  • 2032381 RSG-GL20N-J Protege Single Gas - Reusable, Grey, Ammonia

  • 2032396 RSG-RL20N-K Protege Single Gas - Reusable, Red, Hydrogen Cyanide

  • 2032382 RSG-GL20N-K Protege Single Gas - Reusable, Grey, Hydrogen Cyanide

  • 2032397 RSG-RL20N-L Protege Single Gas - Reusable, Red, Ozone

  • 2032383 RSG-GL20N-L Protege Single Gas - Reusable, Grey, Ozone

  • 2032398 RSG-RL20N-M Protege Single Gas - Reusable, Red, Carbon Monoxide, Hydrogen Resistant

  • 2032384 RSG-GL20N-M Protege Single Gas - Reusable, Grey, Carbon Monoxide, Hydrogen Resistant

  • 2032399 RSG-RL20N-N Protege Single Gas - Reusable, Red, Nitric Oxide

  • 2032385 RSG-GL20N-N Protege Single Gas - Reusable, Grey, Nitric Oxide

  • 2032400 RSG-RL20N-R Protege Single Gas - Reusable, Red, LEL

  • 2032386 RSG-GL20N-R Protege Single Gas - Reusable, Grey, LEL

  • 2032693 RSG-RL20N-U Protege Single Gas - Reusable, Red, Phosphine

  • 2032694 RSG-GL20N-U Protege Single Gas - Reusable, Grey, Phosphine

PROTEGE SG - SPARE PARTS
  • 8002115 8002115 Calibration Cup

  • 8002113 8002113 Internal Dust Filter

  • 8001860 8001860 Battery, Omnicel ER14335

  • 8000727 8000727 Alligator Clip

PROTEGE SG - ACCESSORIES
  • 2025940 2025940 Protege IR Connect with USB Cable

  • 2025958 2025958 Protege IR Connect Spare USB Cable

  • 8005942 8005942 Protege SG MasterDock II Auto Bump & Calibration Station

PROTEGE SG - CALIBRATION GAS & EQUIPMENT
  • 2019125 2019125 Fix flow regulator 0.5 l/min

  • 99115 99115 Stainless Steel Fix Flow Regulator

  • 99118 99118 Demand Flow Regulator

  • 2019127 2019127 58L 25ppm H2S Balance Air

  • 2019138 99168 103 Litre Carbon Monoxide 50 PPM/ Air Balance

  • 2026297 2026297 110 LTR 16% Oxygen/Nitrongen Balance

  • 2019131 077-0278 34L 10 ppm HCN/N2

  • 2019134 077-0203 58L 25 ppm NO/N2

  • 077-0204 077-0204 58L 5 ppm NO2/N2

  • 077-1239 077-1239 34L 1 ppm PH3/N2

  • 99147 99147 58 Litres, 10PPM SO2/Air Balance

  • 99153 99153 58 Litres, 50PPM NH3/Air Balance

  • 077-0151 077-0151 58L 2 ppm Cl2/N2 (use CI2 as surrogate gas for CIO2 & O3)

  • 077-0358 077-0358 103L 1.62% methane/air (32%LEL)

PROTEGE SG - REPLACEMENT SENSORS
  • 8001089 8001089 H2S Sensor Module 0 to 500 ppm

  • 8002426 8002426 H2S High Resolution Sensor Module 0 to 100 ppm

  • 8001093 8001093 CO Resistant Sensor Module 0 to 1000ppm

  • 8001391 8001391 CO H2 Resistant Sensor Module 0 to 2000ppm

  • 8001091 8001091 O2 Sensor Module 0 to 30%

  • 8001099 8001099 HCN Sensor Module 0 to 100 ppm

  • 8001096 8001096 O3 Sensor Module0 to 3 ppm

  • 8001100 8001100 NO Sensor Module 0 to 350 ppm

  • 8001101 8001101 NO2 Sensor Module 0 to 100 ppm

  • 8001095 8001095 PH3 Sensor Module 0 to 20 ppm

  • 8001094 8001094 SO2 Sensor Module 0 to 150 ppm

  • 8001102 8001102 NH3 Sensor Module 0 to 300 ppm

  • 8001097 8001097 Cl2 Sensor Module 0 to 50 ppm

  • 8001098 8001098 ClO2 Sensor Module 0 to 5 ppm

  • 8002057 8002057 LEL CH4 Module 0 to 100% LEL
