3M Scott Safety Sabrecom 2 Radio Communications Interface

3M Scott Safety Sabrecom 2 Radio Communications Interface

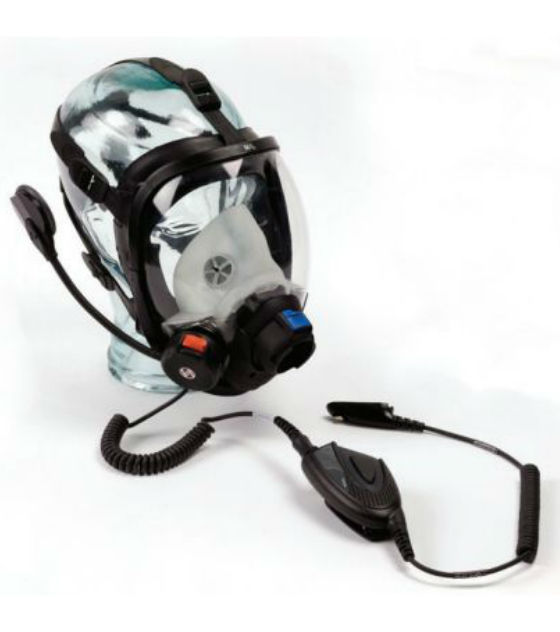

The 3M Scott Safety Sabrecom 2 is a unique radio communications interface that fully integrates with your choice of Scott facemask.

Key Features

  • Available as a complete communications solution on the Vision 3, Vision AMS, Promask, PanaSeal and PanaVisor facemasks
  • Approved to EN136 Class III
  • Large push to talk button assembly with two PTT buttons
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Available as a complete communications solution on the Vision 3, Vision AMS, Promask, PanaSeal and PanaVisor facemasks, Sabrecom is approved to EN136 Class III. The advantage of the Sabrecom 2 communications system is that it can be fully integrated with the facemask and is approved to meet all tests for flame and heat resistance, plus IP67 rating for water and dust penetration as well as being intrinsically safe to Ex iaIIC T4 (radio dependant).

This system has a large push to talk button assembly with two PTT buttons which can be used independantly as a lapel mic to enable the comms to be used when a BA facemask isn't being worn. The facemask interface is simply plugged into the PTT via a robust jack plug connector. This allows the system to be used when a BA set is not being worn and it can also be used with other types of RPE.

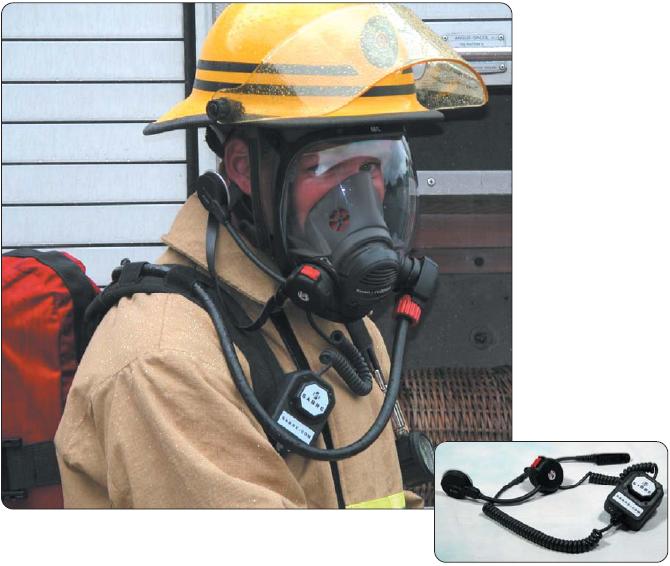

The primary headset is the facemask mounted interface which allows intergration with the full range of Scott facemasks. The microphone is positioned for optimum speech clarity, on the inside of the facemask. This provides excellent speech reproduction in high ambient noise atmospheres and has been tested above 100dBA. The flexible boom earphone can be positioned for wearer preference and even fits inside close fitting helmets.

The communications interface is connected to the mask via a simple bayonet mechanism with locking catch to provide security and yet is easily removed for cleaning.

The PTT has a radio adaptor hardwired into it and this adaptor is generally specifc to the type of radio or range of radios that it is to be connected to. The radio that the unit is to be used with should therefore be specifed at the time of ordering.

Lapel Mic PTT Assembly
  • 2022906 Motorola GP340 EX

  • 2023375 Motorola GP344

  • 2023378Motorola DP3400

  • 2023380 Motorola XTR446

  • 2027243 Motorola MTP850ex

  • 2023383 Sepura STP8000

  • 2023374 Entel HT981 EX

  • 2023367 Kenwood TK350

  • 2023377 ICOM F61

  • 2023379 EADS TPH7000

Non Lapel Mic PTT Assembly*
  • 2030483 Motorola DP4401 EX Motrobo

  • 2030484 Molex adaptor PMLN6047

  • 2022907 The Sabrecom 2 radio communications QF facemask interface integrates with the Vision 3, PanaSeal, PanaVisor and Promask PP facemasks for breathing apparatus. Please note this requires an REQF facemask to be used.

SELECTED SPARES and ACCESSORIES
  • 2009944 Voice amplifier (non IS)

  • 2009940 Inner mask for use with voice amp (Vision) - small

  • 2009941 Inner mask for use with voice amp (Vision) - large

  • 2001703 Communications port/REQF port blank plug

  • 2008820 Spares O-rings for comms body
