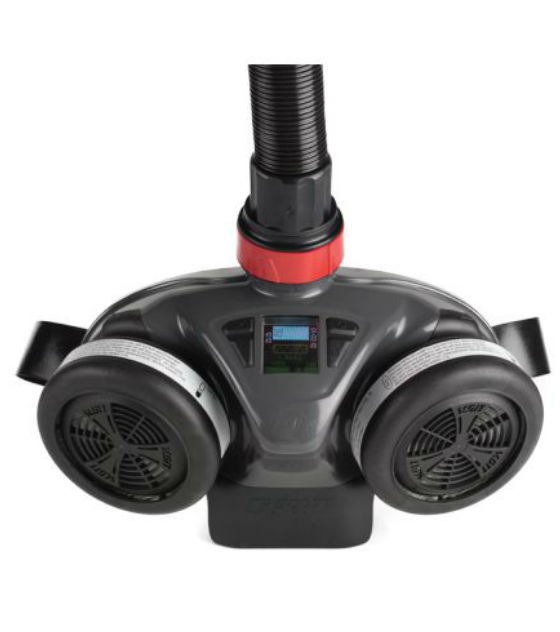

3M Scott Safety Spirit SX Powered Air Respirator

3M Scott Safety Spirit SX Powered Air Respirator

The 3M Scott Safety Spirit SX Powered Air Respirator unit contains a motor powered centrifugal fan running at a maximum RPM of approximately 17,000. The flow is measured in real time and uses a microprocessor to control the closed loop flow measurement system.

Key Features

  • Controllable and Adaptable
  • Application Specific
  • Low Through-Life Costs
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Spirit SX

  • • TFT colour display displaying flow rate / filter type/ battery status % / time and date / user ID and alarm conditions
  • • Automatic recognition and display of filter andhead top types
  • • Programmable inspection / service intervals andoptional product blocking with digital indication
  • • Alarm if filter is not fitted and prevent start up or dislodged in use (Combi filters)
  • • Non-operation until two same type filters correctly fitted
  • • Additional vibrate alarm
  • • On-board data logging of hours run, flow rates and alarm events, downloadable by User via mini USB
  • • User ID features which includes programmable user name, clock number and ability to select ID colour
  • • Real-time date and time display

Introducing the next generation of powered air respirators, the Spirit range offers an advanced level of electronic controllability and is fully programmable to meet the precise needs of both the user and their application.

CONTROLLABLE AND ADAPTABLE

  • • Two models, Spirit and Spirit SX, provide a choice for the owner to select the level of controllability and programmability required for their application.
  • • Both models offer airflow adjustment with particle filters to allow for site specific settings and providing comfort for the user no matter the environmental hazard.
  • • Many other preference settings, inspection intervals, and operating acknowledgements can be adapted , providing customised alarms for improved user safety.

APPLICATION SPECIFIC

  • • Scott provides the widest choice of both general and specialised powered air headtops and facemasks, allowing you to select the most appropriate for the user and the most suitable for the application.
  • • The Spirit system operates with a choice of particle (P) and several combination (AP, ABEP and ABEKP) filters.

LOW THROUGH-LIFE COSTS

  • • The motor is guaranteed for 3 years or 1800 hours run time (excluding battery), keeping PAPR maintenance costs to a minimum.
  • • Airflow is optimised and set at a constant level to ensure maximum service life from combination filters while providing comfort to the user.
  • • Drop in replacement modules allow for fast and simple replacement of parts to minimise down time & costs associated with replacing parts that get damaged.
Spirit Powered Air Units
  • 2025316 2025704 Spirit Base unit (inc charger, battery pack & belt)

  • 2025317 2025705 Spirit SX unit (inc charger, battery pack & belt)

Spirit Readypak
  • 2026312 2026312 Spirit Base unit readypak with FH31 headtop inc comfort belt/PU stretch hose/battery & charger

Spirit Headtops
  • 2022948 2025473 FH1 Half-hood no hose TH3

  • 2022949 2025480 FH2 Full-hood no hose TH3

  • 2025833 2025835 FH3 with PC visor (1mm) no hose TH3

  • 2025837 2025839 FH3 with Anti-mist PC visor (1mm) no hose TH3

  • 2025841 2025843 FH3 with Acetate visor (1mm) no hose TH3

  • 2023098 2025486 FH21 Anti-Static Full Hood no hose TH3

  • 2024478 2025499 FH22 Full Hood no hose TH3

  • 2023084 2023086 FH31 no hose TH2

  • 2031388 2031399 FH32 Litehood TH3

  • 2023114 2025601 FH5 with PC visor no hose TH2

  • 2025301 2025602 FH5 with AC visor no hose TH2

  • 2023116 2025521 FH51 PC Helmet & Hood no hose TH3

  • 2024481 2025522 FH51 AC Helmet & Hood no hose TH3

  • 2025515 FH52 (Anti-Static version of FH51 PC Helmet) TH3

  • 2025516 FH52 (Anti-Static version of FH51 AC Helmet) TH3

  • 2025531 2025535 FH53/PC/CS Helmet & Full Hood

  • 2025532 2025536 FH53/AC/CS Helmet & Full Hood

  • 2023068 2023070 FH6/Procap Helmet with PC visor no hose TH2

  • 2023097 2023100 FH61/Procap Weld (Helmet welding visor) no hose TH2

  • 2023118 2023121 FH62 (Helmet & Gold visor) no hose TH2

  • 2023123 2023125 FH63 (Helmet & Shade 3 visor) no hose TH2

  • 2023128 2023130 FH65 (Helmet & Shade 5 visor) no hose TH2

  • 2023539 2025648 FM1 PAPR half mask (S/M) no hose TM2

  • 2023538 2025649 FM1 PAPR half mask (M/L) no hose TM2

  • 2023639 2023641 FM2/Sari (Natural Rubber) PAPR full face mask no hose TM3

  • 2023643 2023645 FM2/Sari (Silicone) PAPR full face mask no hose TM3

  • 2023647 2023657 FM3/Promask PAPR full face mask no hose TM3

  • 2023659 2023661 FM3/Promask PAPR full face mask (Small) no hose TM3

  • 2023663 2023665 FM3/Promask PAPR full face (Silicone Yellow) mask no hose TM3

  • 2024413 2025686 FM4/Vision PAPR (M/L) full face mask no hose TM3

  • 2024412 2025685 FM4/Vision PAPR (M) full face mask no hose

Spirit Hose Options
  • 2025908 Self adjusting PU hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 2025910 Fixed length PU hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 2024458 EPDM Rubber hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 2029863 Longer (100cm) EPDM Rubber hose for use with FH1, FH2, FH21, FH22, FH3, FH31, FH5, FH51

  • 2025909 Self adjusting PU hose for use with FH6, FH61, FH62, FH63, FH65

  • 2025911 Fixed length PU hose for use with FH6, FH61, FH62, FH63, FH65

  • 2024461 EPDM Rubber hose for use with FH6, FH61, FH62, FH63, FH65

  • 2025912 Fixed length PU hose for use with FM1, FM2, FM3, FM4

  • 2024463 EPDM Rubber hose for use with FM1, FM2, FM3, FM4

Spirit Filters
  • 5045060 SF-10 PSL filter for use against solid and liquid toxic, radioactive particles and micro-organisms, e.g. bacteria and viruses.

  • 5045061 SF-20 A2PSL For use against:Gases and vapours from organic compounds and solid and liquid toxic particles.

  • 5045062 SF-30 A2B2E2PSL For use against:Organic, inorganic and acid gases and vapours and solid and liquid toxic particles.

  • 5045063 SF-40 A1B2E2K1PSL Organic, inorganic and acid gases and vapours, ammonia and solid and liquid toxic particles.

Spirit Spares/Accessories
  • 2026111 Spirit spare battery charger

  • 2023276 Spirit belt spare

  • 5063597 Comfort belt

  • 2023334 Spirit - threaded headtop hose spares

  • 2023306 Spirit spare battery pack

  • 2027247 FH1/FH2/FH21 Peel offs (10 pack)

  • 2032150 Pack of Spirit Pre-filter holders (2) with pads (6)

  • 5052691 RXPF/PACK Prefilters (20)
