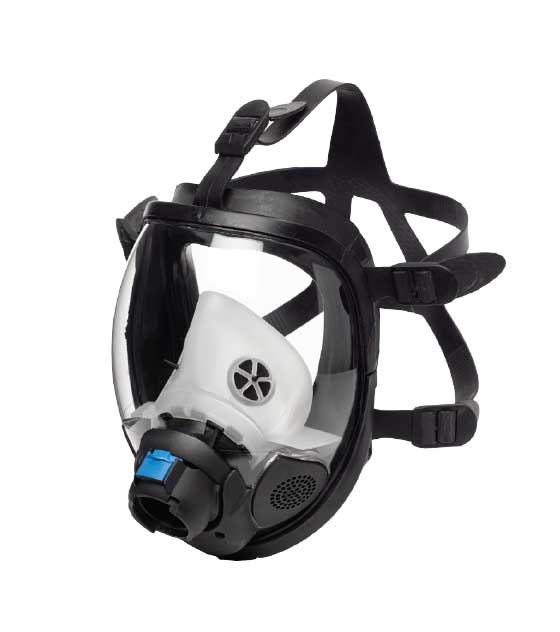

3M Scott Safety Vision AMS Silicone Face Mask

3M Scott Safety Vision AMS Silicone Positive Pressure Face Mask

The Scott Vision AMS Silicone is offered in 3 different sizes and will accommodate a wide range of facial shapes and sizes. The facemasks are positive pressure and feature a Silicone outer mask and a TPE ori-nasal inner mask. The facemask visor is multi curvature and made of a scratch and impact resistant polycarbonate material with a flame-retardant coating and provides excellent panoramic vision. The visor is held in place by two U-shaped clamps. The mask allows the wearer to wear integrated spectacle frames, without compromising the facemask seal. The facemask is available with either a five-point fully adjustable neoprene strap style harness or a two-point adjustable polyester net style harnesses.

Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The facemask is a true dual use facemask with an exhale valve that can operate in a true negative pressure mode for use with filters and then when a DV is attached via a bayonet adaptor it switches automatically to a positive pressure exhale valve. This is all done via the front fitting of the facemask. An option of an additional right quick-fit port is available to take a communications interface if required. A speech diaphragm is mounted at the left of the mask to offer unimpeded speech transmission. Variants are also available with an ESA demand valve fitting in place of the standard bayonet adaptor. The Vision AMS is specifically designed for use with the Scott range of breathing apparatus from the Professional Fire Fighting SCBA through to the Airline and escape breathing apparatus range. In conjunction with Scott breathing apparatus it is suitable for providing respiratory protection for an IDLH environment. It can also be used with the full range of Scott Din 40 filters.

Materials

Visor Polycarbonate with scratch resistant coating
Inhale Valve Flaps Silicone rubber
Exhale valve flaps Polyisoprene Rubber
Exhale valve housing Polyamide
Exhale valve spring Stainless Steel
Speech Diaphragm Mylar (Polyester) film membrane in a supportive grid
Visor Surround Polyamide 6-6
Outer mask Silicone
Front Cover Glass filled polyamide
Demand Valve Port Glass filled polyamide
Inner Mask Thermoplastic elastomer
Screws Stainless Steel
Nuts Nickel plated brass
Buckles Polyamide
Headharness 5 point Neoprene, net head harness in polyester material
Packing specification 265x190x150mm 1.0kg
