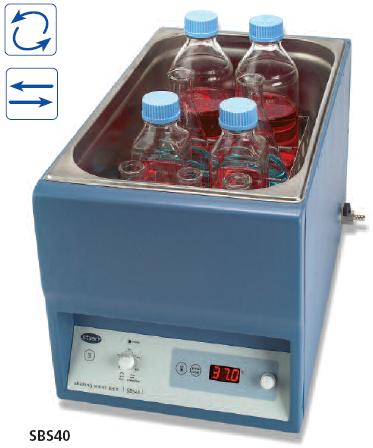

Stuart SBS40 Shaking Water Bath

  Choice of linear or orbital shaking action
  Digital display and selection of temperature
  Low level water sensor
  Integral drain
  Range of accessories

A water bath with integral shaking, a choice of platform is available to provide linear or orbital shaking action. The platforms require no special fitting and use strong magnets, which couple to the drive unit underneath the stainless steel tank. Vessels are securely held in place on the stainless steel platforms by a series of high-tension springs, which will accommodate almost any size and combination of vessel. The heater is mounted underneath the tank to allow easy cleaning. A low-level water sensor causes a warning to flash on the display to indicate when the water level is low, cutting power to the heater to prevent the bath from boiling dry. A drain is also incorporated to aid emptying of the bath. The platforms will accommodate the following Erlenmeyer flasks: 8 x 250ml, or 6 x 500, or 4 x 1000ml capacity.

The speed and temperature controls are easy to use. The shaking speed is adjustable and electronic feedback control ensures accurately maintained speed. The water bath temperature is set and monitored via the easy to read LED display. In addition, the design incorporates an over temperature protection system that tracks the set temperature and controls the heater in the event of a fault.

A range of stainless steel accessories is available designed to accommodate popular tube types ranging from 1.5ml micro tubes up to 50ml centrifuge tubes. A choice of cover is also available, designed to reduce heat loss and evaporation in either stainless steel or plastic. The polycarbonate cover allows the cover to be hinged either side of the bath depending on working conditions and preference.

Data Sheet

Ordering Information

SBS40 - Water bath, shaking (without platform)
SBS40/1 - Platform, linear shaking action
SBS40/2 - Platform, orbital shaking action
SBS40/3 - Platform, perforated
SBS40/4 - Polycarbonate cover, hinged
SWB3/1 - Stainless steel cover
SBS40/5 - Test tube rack, 143 x 1.5ml micro tubes
SBS40/6 - Test tube rack, 120 x 13mm culture tubes
SBS40/7 - Test tube rack, 72 x 16mm culture tubes
SBS40/8 - Test tube rack, 56 x 15ml centrifuge tubes
SBS40/9 - Test tube rack, 30 x 26mm culture tubes
SBS40/10 - Test tube rack, 25 x 50ml centrifuge tubes

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
