Stuart SI30H Hybridisation, Incubator & Shaker
 Compact design
Rotisserie and rocker in one unit
Up and over door for accessibility
Accurate temperature control
Advanced safety features
Variable speed control
A very versatile 20 litre hybridisation incubator and combined rocker
shaker which only requires a minimum of bench space. The incubator
temperature is accurately set via the easy to use encoder controls and
displayed by a bright LED. Forced air circulation combined with
microprocessor control means outstanding temperature uniformity.
The 'safety first' design includes an over-temperature protection system
that automatically tracks the set temperature and controls the heater
in the event of a fault. The smart system displays error codes indicating
a fault has occurred or if the set temperature has been interrupted.
The incubator also cuts power to the motor if it overheats or stalls.
The incubator has a stainless steel interior, whilst the door is
constructed from a double glazed panel of smoked acrylic and
polycarbonate to provide radiation protection. The 'up and over' door
mechanism gives excellent access to the incubator.

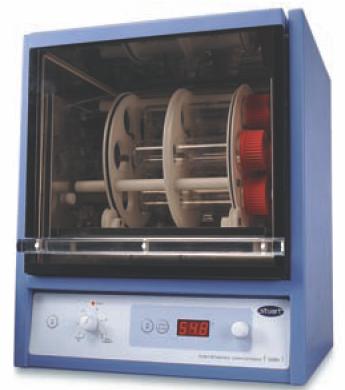

The SI30H is supplied with a rotisserie that accepts 7 x 40mm diameter
bottles. It rotates at speeds variable between 2 and 10rpm inside the
incubator. It also acts as a bottle stand when removed from the
incubator. Accessory rotisseries are available to hold 2 x 75mm
diameter glass bottles and for 24 x 50ml centrifuge tubes which are
popular for small scale hybridisations. Conversion of the unit to a

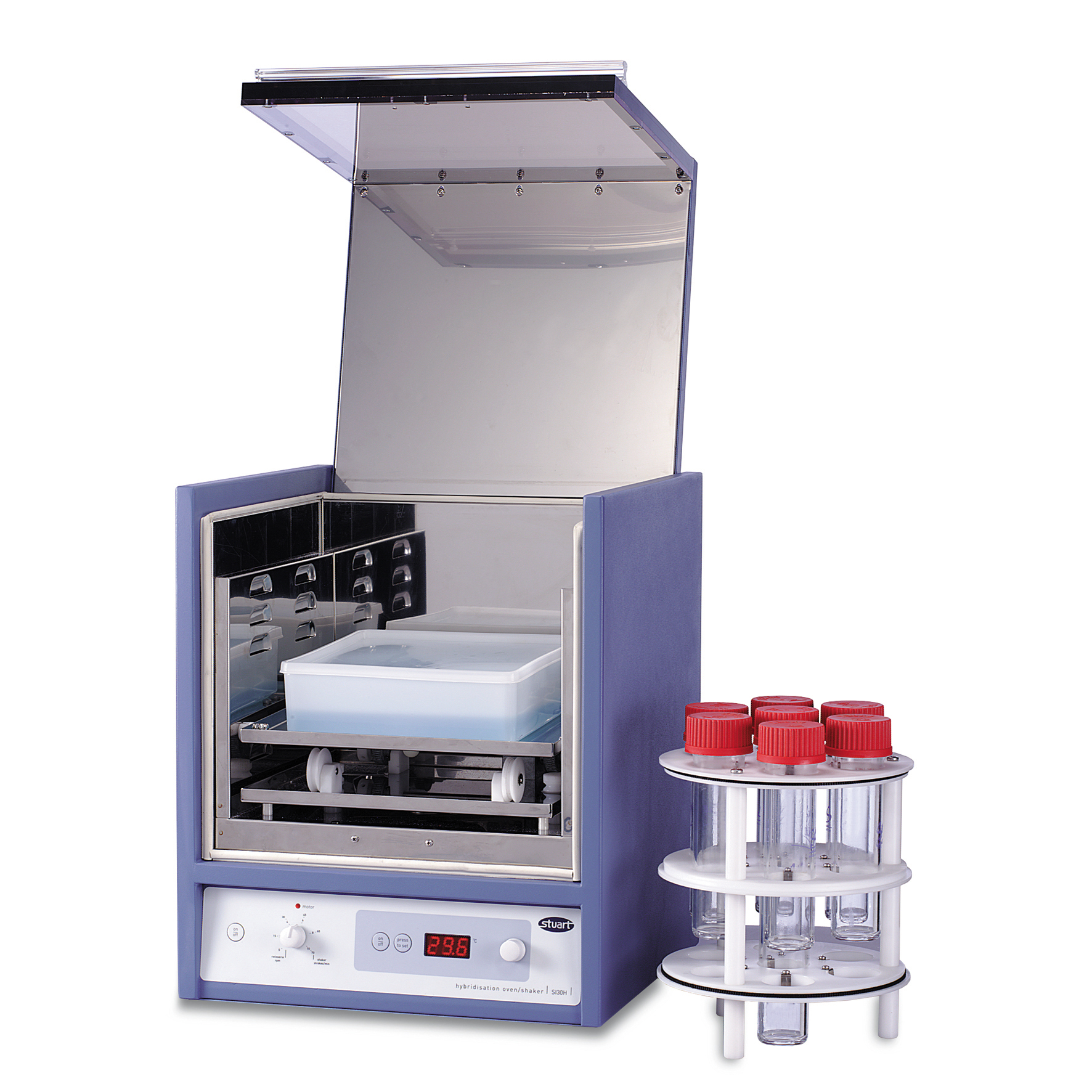

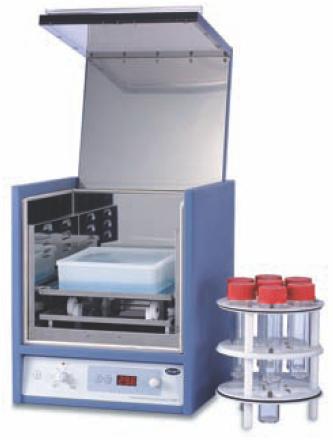

rocker shaker is fast and easy. Simply remove the rotisserie and pull
forward the platform located at the rear of the incubator. The gentle
rocking action is ideal for the washing stage of most hybridisation
procedures. Rocking speed is fully variable allowing optimisation
depending on application. A range of hybridisation bottles are
available made from tough Pyrex glass and leak proof PTFE faced
screwcaps (see PDF).
Data Sheet
Manual
|

For larger views, please click on the small photos above.
Ordering Information
|
SI30H - Hybridisation incubator / shaker (supplied with 1 x rotisserie SI20H/1)
SI20H/1 - Spare rotisserie for 7 x 40mm diameter bottles (holds 6 plus 1 in the centre)
SI20H/2 - Accessory rotisserie for 2 x 75mm diameter bottles
SI20H/7 - Accessory rotisserie for 24 x 50ml tubes |
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
