Linear reciprocating shaking action
  Digital speed selection to 250rpm with soft start
  Built-in digital timer
  Reliable quiet drive mechanism
  Fully adjustable cradle system

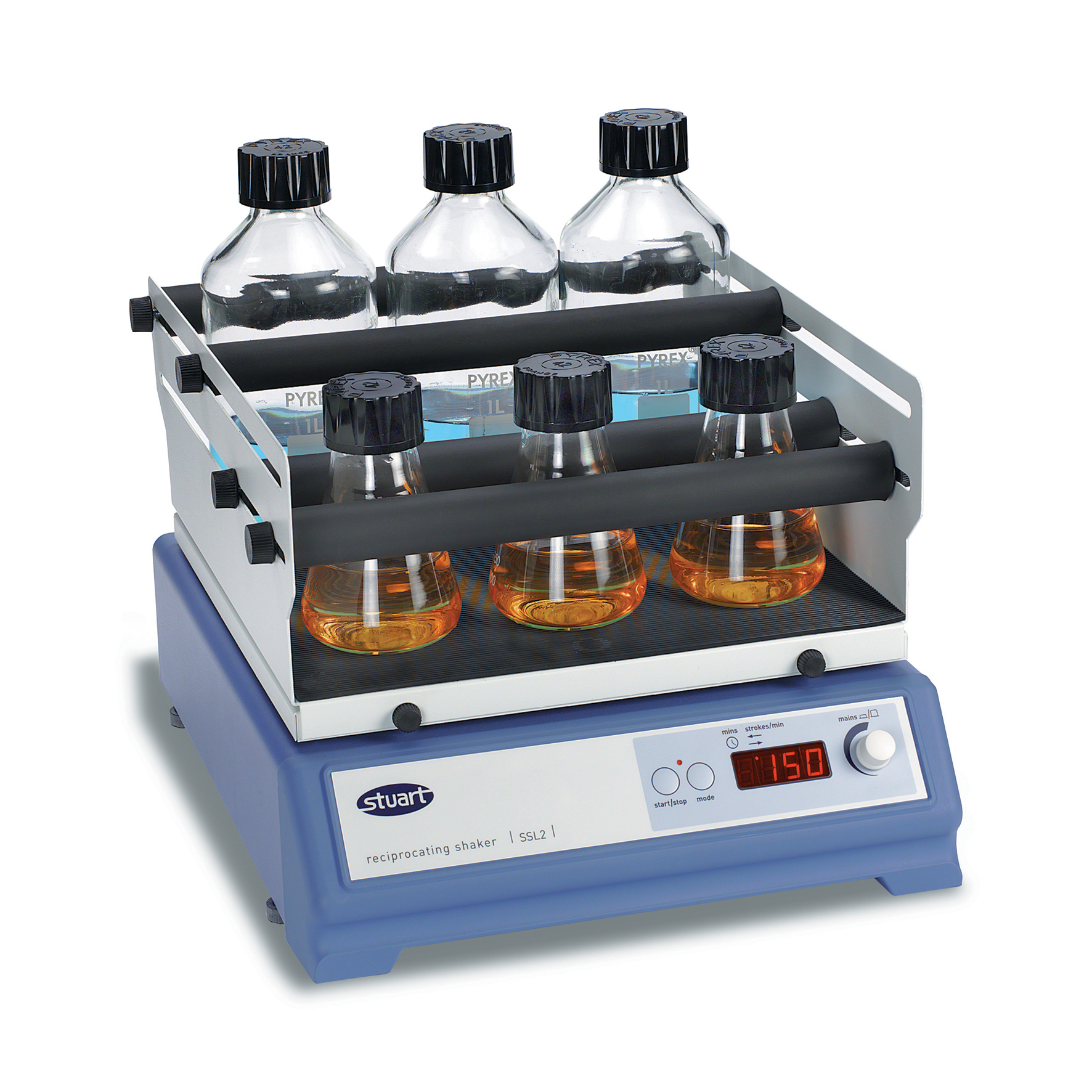

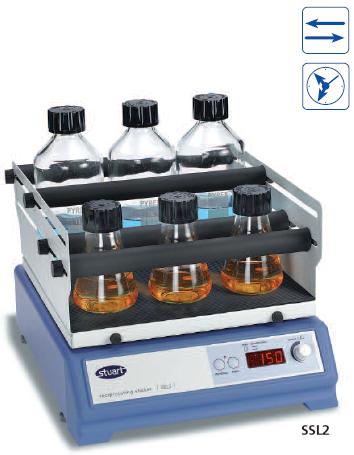

This lab scale platform shaker has a powerful yet quiet shaking mechanism that has been designed for problem free continuous use. Model SSL2 provides a linear reciprocating shaking action with an amplitude of 20mm and speed range of 20 to 250rpm, ideal for extractions. It can be used in environmental chambers and CO2 incubators.

The cradle type platform has four rubber cushioned horizontal securing bars with quick release handles. They can be easily adjusted both vertically and horizontally to hold most sizes and types of vessel, including flasks, bottles and beakers. For example, they will accommodate the following Erlenmeyer flasks or bottles: 12 x 250ml or 9 x 500ml or 6 x 1000ml or 2 x 2000ml.

The main advantage of this cradle system is that it can accommodate different sizes of vessel, a common requirement where shakers are used by different people in the laboratory. Speed is fully variable and is set digitally for consistency. The speed is microprocessor controlled and accurately maintained even over long runs. A digital built-in timer allows shaking times from 1 to 999 minutes to be set. After the timer has counted down, the shaker stops and sounds an alert. Alternatively the unit can be set for continuous operation.

Data Sheet
Manual

For a larger view, please click on the photo.
