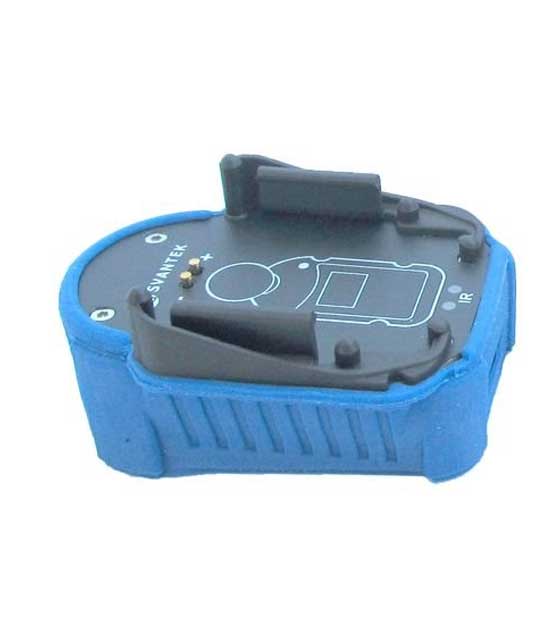

Svantek SA 104-1 Single Docking Station

The SA 104-1 docking station supports simultaneous battery charging and data download from SV 104IS noise dosimeter . The instrument is positioned on the docking station with a holders system that ensures the correct position for battery charging. The SA 104-5 uses the mini USB port for battery charging and connection with PC. The data download is handled by the infra-red interface. The status of the dosimeter battery is indicated by the LED diode located next to the handle system.

SV 104-1 Docking Station Features:

Communication with PC	micro USB 2.0, 5 VDC; SC 156 cable
Communication with instrument:	infrared
Power supply	SA 54, 5 VDC, min. 1 A
Charging contacts voltage	5.6 VDCÂ Umax = 6.6 V

Get a Quote

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

We accept the following currencies: GBP (Pound Sterling), EUR (Euros) and USD (United States Dollars).

SV 104 K1	SV 104 K1 kit including:
	1 x SV 104 Personal noise dosimeter including windscreen
	1 x SA 54 Charger for 1 x SV 104
	1 x SV 34 Class 2 acoustic calibrator: 1000 Hz/114 dB
	1 x SA 147 Carrying case for 1 x SV 104 dosimeter and accessories
	1 x SC 156 Micro USB cable
SV 104 K5	SV 104 K5 kit including:
	5 x SV 104 personal noise dosimeters including windscreens
	1 x SA 156 USB HUB for charging and data download from 5 x SV 104
	1 x SV 34 class 2 acoustic calibrator: 1000 Hz/114 dB
	1 x SA 73 Carrying case for 5 x SV 104 dosimeters and accessories
	1 x SC 156 Micro USB cable
SV 104	Personal noise dosimeter
	SV 104 - accessories included :
	SV 27 microphone, SA 122 windscreen, SC 156 USB cable, built-in rechargeable batteries
	(charger/ power supply wall adapter not included) CD with instruction, transport box
SV 104 - available options
SF 104 OCT	1/1 octave analysis option
SF 104 WAV	Audio events recording option

SV 104 - available accessories:
SV 27	Microphone for SV 104 dosimeter
SV 34	class 2 acoustic calibrator: 1000 Hz/114 dB
SA 54	Charger/power supply for 1 x SV 104
SA 73	Carrying case for 5 x SV 104 dosimeters and accessories only, waterproof, no space for SA104-5
SA 147	Carrying case for 1 x SV 104 dosimeter and accessories (waterproof)
SA 122_3	Windscreens for SV 104 dosimeter 3 pcs pack magnetic fixing
SA 122A	Windscreens for SV 104A dosimeter 3 pcs pack thread fixing
SA 156	USB HUB for charging and data download from 5 x SV 104
SC 156	Micro USB cable
