Svantek SV 102A+

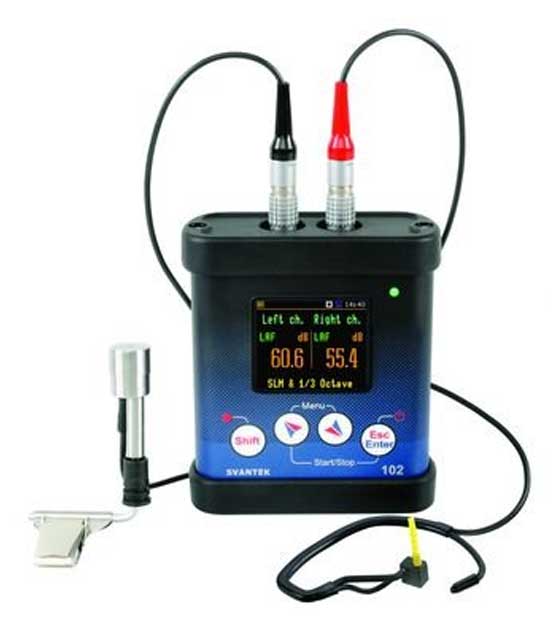

Svantek SV 102A+ Class 1 Dual Channel Dosimeter

SV 102A+ Class 1 Dual Channel Dosimeter is presenting new approach to occupational health and safety acoustic monitoring task. This dosimeter can be also used as a dual-channel Class1 sound level meter and real-time 1/1 octave & 1/3 octave analyser.

SV 102A+ Features:

  • Dual-channel Sound Level Meter conforming to Class 1: IEC 61672
  • Prepolarised 1/2" microphone
  • Dual channel 1/1 octave analysis (option)
  • Single measurement range
  • Measurement range 45 dBA RMS ÷ 141 dBA Peak
  • MIRE measurement technique with SV 25S (option)
  • Three parallel independent profiles
  • Advanced data logger, up to 12 results per channel logged simultaneously including spectral analysis
  • Audio-events-recording (option)
  • MicroSD card
  • USB  interface
  • Large OLED display
  • Integration time programmable up to 24 h
  • Power supply by two AA rechargeable or standard batteries
  • Extremely compact, light weight and robust case
Get a Quote
Svantek

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Octave analysis, providing direct data for the design of the ear-protectors, together with Audio Events Recording (AER) function show the new reference standard on acoustic dose measurement field. The binaural dose measurement and octave analysis are simultaneously performed by this compact-size instrument. Three acoustic profiles per channel allow parallel measurements with independently defined filters and RMS detector time constants. Advanced time-history logging in each profile, together with spectra saving and Audio Events Recording provide a complete information about the measured signal. Data is stored in large 8 GB memory and can be easily downloaded to any PC using USB interface and Supervisor software.

The small and compact SV 15 preamplifier together with special mounting clip and dedicated headband enables an easy attachment of the microphone in extremely short distance to human ears. Calibration by measurement can be easily performed by direct usage of common acoustic calibrators.

SV 102A+ is also able to perform the measurement inside human ear - with the usage of SV 25S - smart microphone with an automatic calibration function (TEDS). The SV 102A together with SV 25S are designed for individual real-world test of the earmuffs noise reduction ratio by means of MIRE technique (Microphone-In-Real-Ear)-measurements under headphones or earmuffs. With a special adapter, SV 25S can be also calibrated with available acoustic calibrators.



SV 102A+ Dual Channel Noise Dosimeter, class 2 including one SV 25D
SF 102A+ OCT 1/1 octave analysis option (single and dual channel instrument versions)
SF 102A+ 3OCT 1/1 & 1/3 octave analysis option (statistics in 1/3 octave band not available)
SF 102A+_REC Audio events recorder option
SV 102A+ - accessories included :
SV 25D_B microphone with cable, SA 25 windscreen, SC 56 USB cable, 2 x AA batteries
4 GB uSD memory card, CD with instruction, transport box
SV 102A+ - available accessories:
SV 15 Dosimeter preamplifier with TEDS, integrated cable for SV 102A
SV 7052E Prepolarised condenser microphone cartridge 1/2" / 32 mV
SV 25S MIRE microphone with TEDS, integrated preamplifier and cable for SV 102+ (2 x SA 25S_16, 2 x SA 25S_PFIX, 1x SA 125P_16)
SV 33 Class 1 acoustic calibrator: 1000 Hz/114 dB
SC 19 LEMO 2-pin (plug) to BNC (socket) integrated connector for SV102+
SC 102/J Cable for measurement manual triggering or audio recording for SV 102+
SC 122 Preamplifier extension cable LEMO 2 pin socket to LEMO 2 pin plug
SA 25S_16 MIRE probe for SV 25S microphone length 16 millimetres
SA 25S_PFIX Spare MIRE probe fixing element for SV 25S microphone
SA 35D Microphone SV 25D tripod mounting adapter (length 20 cm)
SA 47_M Carrying bag for SV 102+ and accessories (fabric material)
SA 49 Carrying belt-bag for SV 102+ (fabric material)
SA 54 Power supply unit by USB interface using cables SC 16 or SC 56 (cables not included)
SA 125P_16 Soft silica protection pipes for SA 25S_16 probe (16 millimetres) package of 45 units
SA 131 Calibration adapters for SV 25S microphone with SA 25S_16 16 millimetres probe
SA 142 Carrying case for SV 102+ and accessories
