Svantek SV 271

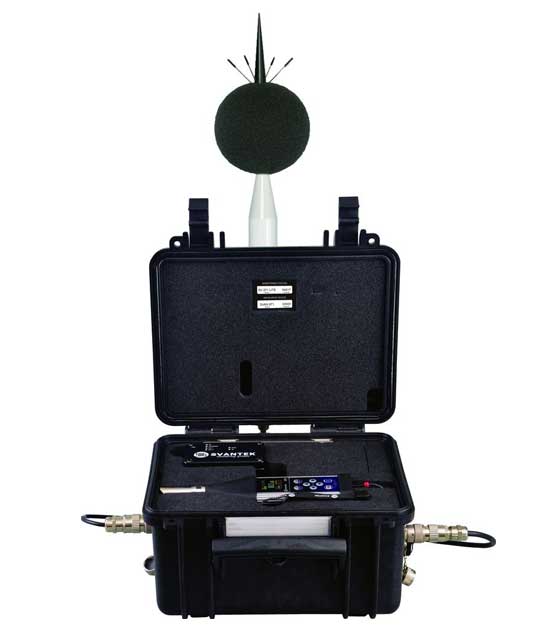

Svantek SV 271 LITE Noise Monitoring Station

The Svantek SV 271 LITE is an outdoor monitoring system based on type approved SVAN 971 Class 1 sound level meter. The IP 65-rated case contains a lead-acid battery which operating life can be easily extended by connecting an external battery or a solar panel. The intelligent charging unit enables use of a solar panel without expensive controllers or heavy batteries. The case is fitted with very robust, waterproof connectors (military standard) and is supplied with an IP 65 external power supply

  • SV 271 LITE is a portable monitoring system housed in a waterproof case dedicated for periodic OUTDOOR measurements
  • The station is based on SVAN 971 which can be easily removed from the case and used as a hand-held sound level meter
  • SVAN 971 is a Class 1 TYPE APPROVED sound level meter in accordance with IEC 61672-1 standard
  • The TIME-HISTORY of results such as Leq, Max, Min and Peak with two simultaneous logging steps is saved on a 8 GB microSD card (upgradeable up to 128 GB)
  • The light-weight microphone protection kit gives an easy access for calibration with an acoustic calibrator. Once the calibration
    signal is detected, the system starts the AUTO-CALIBRATION
Get a Quote
Svantek

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

More Features:

  • The LARGE WINDSCREEN is highly efficient in reduction of a wind noise effects even at high wind speeds
  • Military standard CONNECTORS provide reliable, robust and waterproof cable connections
  • Station uses waterproof CHARGER that is designed for outdoor use
  • Station can be powered from, internal battery or external DC power supply and is ready for direct connection of a SOLAR
  • PANEL. The powering is managed by the intelligent charging unit
  • The option for 1/1 OR 1/3 OCTAVE REAL-TIME ANALYSIS allows the analysis of the noise frequency contents. It can be activated at any time by entering an activation code
  • The option of EVENT RECORDING works during measurement and is logged in parallel to time history. Once downloaded to PC it can be played back. Settings such as triggers or recording time are adjustable. It can be activated at any time by entering an activation code
  • SvanPC++ Environmental Monitoring is designed for post-processing of data recorded by monitoring station. The module offers a powerful calculator and an automated noise event finder for noise source identification. Thanks to its “Projects” functionality, SvanPC++_EM allows to combine and compare data from multiple measurements as well as create and save reports in MS Word™ templates. The module can be activated at any time by entering the activation code
