Svantek SV 277

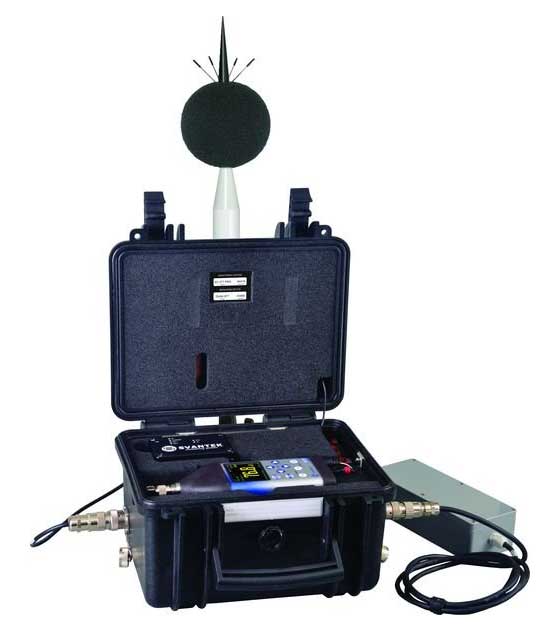

Svantek SV 277 PRO Noise Monitoring Station

The Svantek SV 277   PRO is an outdoor monitoring system based on the SVAN   977 Class   1 sound level meter. The IP   65-rated case contains a lead-acid battery which operating time can be easily extended by connecting an external battery or a solar panel. The intelligent charging unit enables use of a solar panel without expensive controllers or heavy batteries. The case is fitted with very robust, waterproof connectors (military standard) and is supplied with an IP  65 external power supply. The light-weight microphone protection kit can be easily installed on a mast with standard mounting threads.

  • SV 277 PRO is a portable monitoring system housed in a waterproof case dedicated for periodic OUTDOOR measurements.
  • The station is based on the SVAN 977 which can be easily removed from the case and used as a hand-held sound level meter.
  • CLASS 1 noise measurements are performed over a very wide dynamic range over 110 dB from 10 Hz up to 20 kHz.
  • The TIME-HISTORY of results such as Leq, Max, Min and Peak with two simultaneous logging steps is saved on 8 GB microSD card (upgradeable up to 128 GB).
  • The station can perform real-time frequency analysis in 1/1 OCTAVE bands and save it as time-history data.
Get a Quote
Svantek

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

More Features:

  • The option for 1/3 OCTAVE REAL-TIME ANALYSIS allows the analysis of the noise frequency contents. The statistical analysis in 1/3 octave band is used for verification of noise sources in the environment. It can be activated at any time by entering the activation code.
  • The option of TIME DOMAIN SIGNAL RECORDING to WAVE format works during measurement and is logged in parallel to a time history. Once downloaded to PC it can be played back. Settings such as triggers or recording time are adjustable.
    In addition to audio play-back, WAVE file can be post-processed in SvanPC++ software that provides calculation of overall results such as Leq, Lmax, Lmin, Lpeak as well as 1/3 octave and FFT calculations or tonality. It can be activated at any time by entering the activation code.
  • The 3G MODEM provides fast data transfer over the Internet to PC with standard Internet connectivity.
  • Once you insert SIM card the remote communication settings are automatically adjusted to connect to SvanNET.
  • Station can be powered from an internal battery or external DC power supply and is ready for direct connection of a SOLAR PANEL. The powering is managed by the intelligent charging unit.
  • Station uses waterproof CHARGER that is designed for outdoor use.
  • Military standard CONNECTORS provide reliable, robust and waterproof cable connections.

All accessories fit conveniently into a second carrying case. The system provides broad-band results such as Leq, Max, Min and Peak with all standard weighting filters together with an incredible time-history logging feature with two adjustable logging steps. The broad-band results can be recorded in three acoustic profiles which enable measurements to be taken with 3 different filters (e.g. A, C, Z) as well as 3 different detector time constants (e.g. Fast, Slow, Impulse).

The SVAN  977 can be easily removed from the case and used as a hand-held sound level meter. The monitoring station uses a 3G modem for the remote communication with Internet. SvanNET, a relay server, supports the connection between PC and station. The SvanNET allows the usage of all types of SIM cards with the system, regardless if they have public or private IP. The connection over the SvanNET allows users to use a mobile phone or tablet to check the status of the noise monitoring station.



SV 277 Pro
Noise monitoring station with SVAN 977 instrument and 3G remote communication
including:
SVAN 977A Class 1 Sound & Vibration Analyser including 1/1 octave
SM 277 Pro Outdoor monitoring station for SVAN 977 including 17Ah battery
SP 270 3G modem
SB 270 waterproof power supply
SC 277 Preamplifier cable for SV 12L (SA 277) and SV 277, 6 meters
SA 270D Desiccator for outdoor protection kits SA271, SA277, SA279
SA 277 Outdoor protection kit for SVAN 977 microphone (microphone, desiccator and cable not included)
SvanNet Web interface and connectivity support
SA 250 Carying case for SA 277, SB 270, cables and accessories
SV 277 Pro - options:
SvanPC++_RC_1 Remote communication & data transfer module (GPRS, LAN, WLAN) for the SvanPC+ software for first unit
SvanPC++_RC_2 Remote communication & data transfer module (GPRS, LAN, WLAN) for the SvanPC+ software for second and next unit
SF 277_2 1/3 octave analysis for SV 277
SF 277_4 FFT analysis for SV 277
SF 277_15 Time domain signal recording and audio events recording for SV 277
SV 277 Pro - accessories:
SV 33 Class 1 acoustic calibrator: 1000 Hz/114 dB
SB 272 External battery for SV 27x, SV 258 monitoring stations series SV 27x (33 Ah) including indoor charger
SB 271 Solar panel for SV 27x, SV 258 monitoring stations (40 W)
SA 206 Mast with adjustable height from 1.5 meter to 4 meters (SA 21_45 included)
SV 277 Pro - spare parts:
SM 277 Lite Outdoor monitoring station for SVAN 977 including 17Ah battery, SB 270 power supply
SM 277 Pro Outdoor monitoring station for SVAN 977 including 17Ah battery, SP 270 3G modem, SB 270 power supply
SP 270 3G modem for SV 27x Pro stations
SC 277 Preamplifier cable for SV 12L (SA 277) and SV 277, 6 meters
SB 270 Waterproof power supply for SV 27x
SA 277 Outdoor protection kit for SVAN 977 microphone (microphone, desiccator and cable not included)
SA 270D Desiccator for outdoor protection kits SA271, SA277, SA279
SA 250 Carying case for SA 277, SB 270, cables and accessories
SA 209 Windscreen for SA27x and SV 200 diameter 130mm
