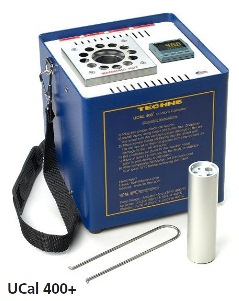

Techne UCal 400+ Portable Dri-Block Calibrator

The Techne UCAL400+ Calibrator provides a safe, dry and constant temperature source, and can be used either on a bench top or as a portable field unit. The unit covers the temperature range from 5°C above ambient up to 430°C using a machined aluminum insert block as the heat transfer medium. The temperature control circuit is built into the unit.

Techne UCal 400+ Key Features

  • Wide temperature range
  • Built in program for thermal switch testing
  • Maximum temperature of 430°C/806°F
  • Fast heat up and cool down
  • 10 insert formats available
  • Independent over-temperature protection
  • Only 4Kg with included multi-well insert and NIST cert
Get a Quote
Techne

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

    Even though the unit heats up rapidly, highly efficient insulation ensures that the case remains cool enough to handle even at maximum operating temperatures. This calibrator has been designed to comply with all relevant Radio Frequency interference and electrical safety regulations.

    The UCAL400+ Calibrator provides a safe, dry and constant temperature source, and can be used either on a bench top or as a portable field unit. The unit covers the temperature range from 5°C above ambient up to 430°C using a machined aluminum insert block as the heat transfer medium.

    The temperature control circuit is built into the unit. Even though the unit heats up rapidly, highly efficient insulation ensures that the case remains cool enough to handle even at maximum operating temperatures. This calibrator has been designed to comply with all relevant Radio Frequency interference and electrical safety regulations.

Parameter UCal 400+
Temperature range 5°C (9°F) above ambient to 430°C (806°F)
Cooling rate 400°C to 100°C 21 minutes
Heating rate 20°C to 400°C 12 minutes
Over-temperature cut-out Approximately 450°C
Stability at 200°C ± 0.03°C
Stability at 400°C ± 0.05°C
Accuracy at 200°C ± 0.3°C
Accuracy at 400°C ± 0.5°C
Uniformity at 200°C 0.015°C
Uniformity at 400°C 0.025°C
Display resolution 0.1°C
Fan cooling Automatic
Weight 4 kg (9 lbs)
lnsert immersion depth 114 mm (4.5 inches)




FDBU400D UCal 400+ Dri-block calibrator, including block lnsert FINSALG, block extraction tool, power cable & userguide (230V)

FDBU400P UCal 400+ Dri-block calibrator, including block lnsert FINSALG, block extraction tool, power cable & userguide (120V)

7032718 Carrying case (ordered seperately)

FDB00CP Cooling Probe for models: Tecal 425, Tecal 650, Tecal 700X & UCal400+

FINSALF Aluminium lnsert 5 x 1 / 4 inch probes

FINSALG Aluminium lnsert 3 / 8 inch, 5 / 16 inch, 1 / 4 inch, 3 / 16 inch, 1 / 8 inch probes (supplied as standard)

FINSALH Aluminium lnsert 2 x 3 / 8 inch and 2 x 1 / 4 inch probes

FINSALI Aluminium lnsert 2 x 1 / 2 inch and 2 x 1 / 4 inch probes

FINSALJ Aluminium lnsert 1 x 1 / 4 inch probes

FINSALK Blank aluminium lnsert
