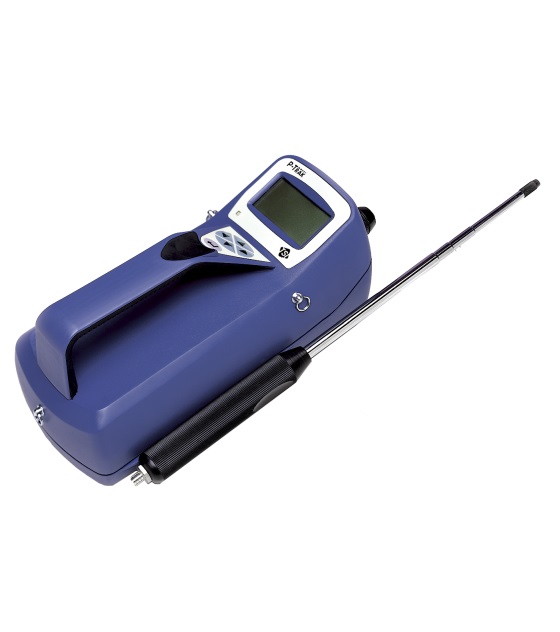

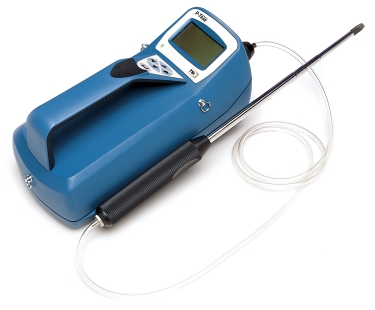

TSI 8525 P-TRAK Particle Counter

The TSI 8525 P-TRAK Particle Counter is an ideal instrument measuring workplace ultrafine particulate levels, as well as helping eliminate indoor air quality (IAQ) problems.

Key Features

  • Real-time ultrafine particle counter
  • Solves tough IAQ problems
  • Data log information
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product. We offer distribution of TSI products to the UK and Ireland.

This portable instrument detects and counts ultrafine particles (smaller than 1 micrometer) that often accompany or signal the presence of a pollutant that is the root cause of complaints.

Ultrafine particles are defined as having a diameter less than 0.1 µm (or 100 nm). Engineered nanoparticles(nanomaterials) are a subset of ultrafine particles with dimensions from 1 to 100 nm. Nanomaterials are produced and used for industrial and high-tech applications, while ultrafine particles are the byproducts of combustion and other chemical reactions. Unfortunately, the occupational health risks associated with manufacturing and using nanomaterials are not clearly understood. As a result, a need has arisen to assess workplace conditions. Using TSI's proven technology, the P-Trak gives direct, real-time measurement of workplace ultrafine particulate levels.

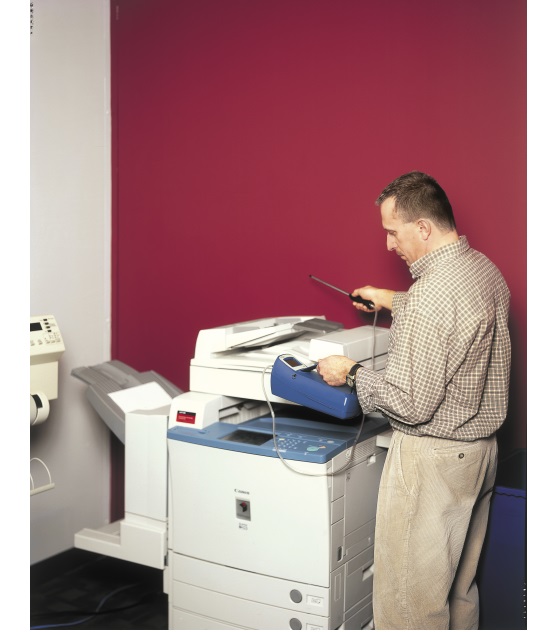

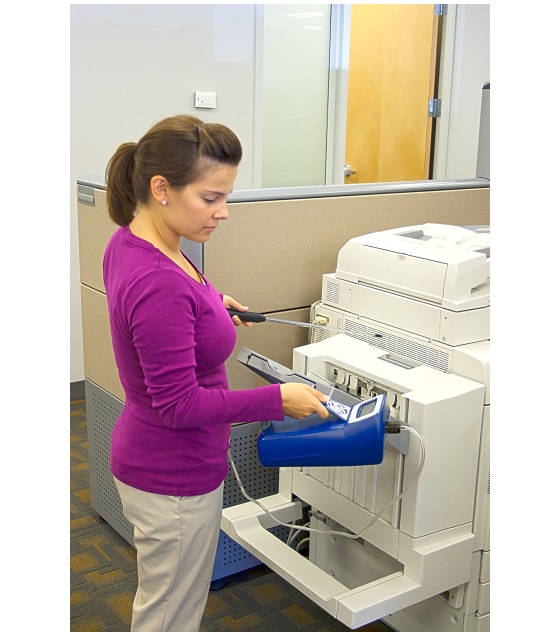

The P-Trak UPC also locates obvious pollutant sources such as boilers, furnaces, and vehicles, and it also detects the not-so-obvious sources such as photocopy machines and printers. Use this instrument to detect the migration of toxic exhaust gases, malfunctioning office equipment, pinhole gasket leaks in boilers and a wide variety of other problems.

INCLUDED ITEMS

  • • Telescoping sample probe
  • • Sample tube
  • • Inlet screen
  • • Spare wicks (2)
  • • Battery holder
  • • Alkaline batteries (6 AA)
  • • Alcohol fill capsule with storage cap
  • • Alcohol cartridge
  • • 30ml bottle Reagent Grade Isopropyl alcohol (16)
  • • Zero filter (2)
  • • Carrying case
  • • TrakPro software
  • • Computer cable
  • • Operation and service manual
  • • Calibration certificate
  • • Two-year warranty

Models
  • 8525 P-Trak Ultrafine Particle Counter, 20-1000 nm

Accessories and Replacement Parts
  • 8016 30ml alcohol bottles (16 bottles)

  • 8023 Alcohol Wicks w/screens, pkg. of 10

  • 800563 Cable, Computer, 9-Pin, 6-ft (1.8 m), DB9F-RJ45M

  • 801613 Carrying case, Hard-sided

  • 801615 Sample tubing (4 ft. /1.2 m)

  • 801616 Inlet screen assembly

  • 801622 Telescoping sample probe

  • 801623 Battery Holder

  • 801624 Alcohol cartridge

  • 801625 Zero filter (qty. 2)

  • 800169 AC adapter, 230V, UK

  • 1083070 Alcohol fill capsule and storage cap

  • 1083071 Storage cap

  • 2613171 PWR SPLY 100/230VAC EC 7.5VDC 1.6A
