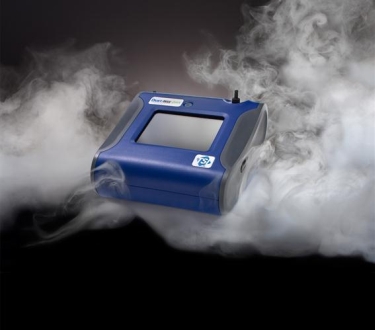

TSI 8533EP DustTrak DRX Aerosol Monitor

Only TSI DustTrak DRX Aerosol Monitors can simultaneously measure both mass and size fraction - no other monitor can do both.

Key Features

  • Energy-efficient, long lasting external pump for continuous, unattended, 24/7, outdoor monitoring applications
  • Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5, Respirable, PM10 and Total PM size fractions
  • STEL alarm setpoint
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product. We offer distribution of TSI products to the UK and Ireland.

DustTrak DRX monitors are battery-operated, data-logging, light-scattering laser photometers that give you real-time aerosol mass readings. They use a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance.

The DustTrak DRX Model 8533EP is outfitted with an external pump module that is designed to handle the rigors of continuous 24/7/365 monitoring applications such as construction sites and fugitive emissions monitoring at environmental sites, as well as other outdoor applications.

The DustTrak DRX Aerosol Monitor measures aerosol contaminants such as dust, smoke, fumes and mists.

Features and Benefits

  • • Energy-efficient, long lasting external pump for continuous, unattended, 24/7, outdoor monitoring applications
  • • Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5, Respirable, PM10 and Total PM size fractions
  • • STEL alarm setpoint
  • • Automatic zeroing (with optional zero module) minimizes the effect of zero drift
  • • Perform in-line gravimetric analysis for custom reference calibrations
  • • Manual and programmable data logging functions
  • • Desktop unit
  • • Aerosol concentration range 0.001 to 150 mg/m3

Applications

  • • Outdoor environmental monitoring
  • • Baseline trending and screening
  • • Engineering control evaluations
  • • Remote monitoring
  • • Process monitoring
  • • Emissions monitoring
  • • Aerosol research studies

Included Items

  • • Carrying case
  • • External pump
  • • Analog alarm outputs
  • • Rechargeable 6600 mAH Li-Ion battery
  • • Switching power supply with universal line cords
  • • TrakPro™ Data Analysis Software CD
  • • Zero filter
  • • USB (device and host) computer cables
  • • Analog/alarm output connector
  • • Inlet cap (x2)
  • • 37-mm cassette with mesh filter
  • • Calibration impactor kit (with PM2.5 impactor, impactor plates (x2) and impactor oil)
  • • Sample extension tube (3-ft/1-m)
  • • Sheath air HEPA filters (x4)
  • • Filter removal tool
  • • Operation service manual
  • • Calibration certificate
  • • 2-year warranty

Models
  • 8533EP Includes: Carrying case, External Pump Module (with Power Cable, Flow Adapter and Flow Tube), Rechargeable 7800 mAH Li-Ion Battery, Switching Power Supply with Universal Plugs, TrakPro Data Analysis Software CD, zero filter, USB (device and host) computer cables, analog/alarm outputs, analog/alarm output connector, inlet cap (2), 37-mm cassette with mesh filter, calibration impactor kit (with PM2.5 impactor, impactor plates (2) and impactor oil), sample extension tube (3-ft/1-m), sheath air HEPA filters (4), filter removal tool, operation & service manual, calibration certificate and 2-year warranty.

DustTrak II and DRX Accessories
  • 800663 Zero filter. Qty 1.

  • 801666 Internal Filter Kit, DustTrak II and DRX Handheld Models; 8 filters per

  • 801667 Impactor kit, DustTrak II (only) Models 8530/8531/8532. Includes: PM1,

  • 801668 Filter Removal Tool, Models 853X(ALL MODELS)

  • 801669 Case, DustTrak II and DRX Handheld Models 8532/8534

  • 801670 Case, DustTrak II and DRX Desktop Models 8530/8531/8533

  • 801671 Standard Calibration Kit for DustTrak DRX Models 8533/8534. Includes

  • 801685 External Battery Charger for 6600 or 7800 mAh batteries (both 801680)

  • 801681 Battery, 3600 mAH Li-Ion, for Handheld DustTrak 8532, 8534.

  • 801680 Battery, 7800 mAH Li-Ion for DeskTop Models 8530, 8530EP, 8533, 8533EP.

  • 801674 Impactor Oil for DustTrak II/DRX/AM520/AM520i; 5 ml bottle.

  • 801673 Internal Filter Kit/37 mm Replacement Filter, DustTrak II and DRX

  • 801686 External Battery Charger for 3600 mAh battery (801681) used in Handheld

  • 801690 Autozero Module, DustTrak II and DRX

  • 801691 10 mm nylon Dorr-Oliver Cyclone with cyclone clip and tubing

  • 801692 AC Adaptor / Power Supply to power the instrument and charge batteries

  • 801694 AC Adapter / Power Supply to power instrument and charge batteries

  • 801652 Analog / alarm output connector

  • 801698 Inlet Cap (x2), DustTrak II and DRX Models 853x (all models)

  • 801688 Tubing, Conductive (3ft-1 m) DustTrak II and DRX Models 853x (all

  • 801687 Hard sided, wheeled carry case for DustTrak II/DRX and PortaCount

  • 1303740 Cable, Computer, USB, 6-ft/1.8-meter, USB-A Male to USB-B Male

  • 801675 DustTrak II/DRX Complete Replacement External Pump Kit. Fully assembled

  • 801795 DustTrak II/DRX External Pump Service Kit, includes: (x2) HEPA Filters;

  • 801797 External Pump Power Cable (to DustTrak)

  • 801798 External Pump Flow Tube (to DustTrak)

  • 801799 DustTrak External Pump Replacement Kit. Includes: replacement pump and

  • 801907 Wireless Router Mounting Hardware for DustTrak

  • 801903 Wireless Router, USB Cable and 1dB Antenna for Environmental DustTrak
