TSI 9535 & 9545 VelociCalc Air Velocity Meters TSI 9535 & 9545 VelociCalc Air Velocity Meters TSI 9535 & 9545 VelociCalc Air Velocity Meters

TSI 9535 & 9545 VelociCalc Air Velocity Meters

The TSI 9535 & 9545 VelociCalc Air Velocity Meters are like having multiple meters-for the price of just one.

Key Features

  • Simple to operate
  • Accurate air velocity measurement
  • Simultaneously measure temperature and velocity
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product. We offer distribution of TSI products to the UK and Ireland.

These meters simultaneously measure and data log several ventilation parameters using a single probe with multiple sensors.

Both models measure velocity, temperature and calculate flow. The Model 9545 also measures relative humidity, and calculates dew point, and wet bulb temperature.

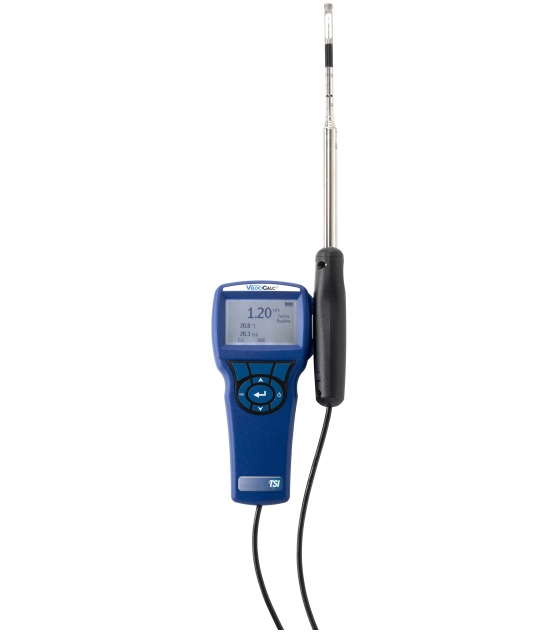

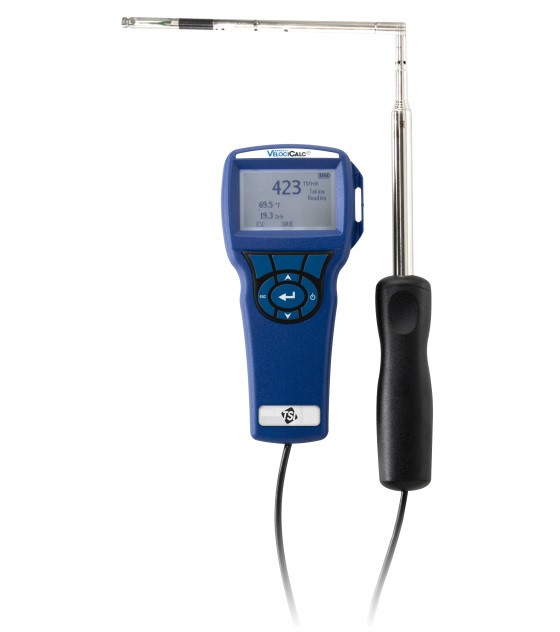

Models 9535 and 9545 have telescopic straight probes; Models 9535-A and 9545-A have telescopic articulated probes.

FEATURES & BENEFITS

  • • Displays up to three measurements simultaneously
  • • Measures humidity (Model 9545 and 9545-A)
  • • Calculates volumetric flow and actual/standard velocity
  • • Data log 12,700+ samples and 100 test IDs
  • • LogDat2TM downloading software included
  • • Articulated probe versions available (9535-A and 9545-A)

APPLICATIONS

  • • HVAC system performance
  • • Commissioning
  • • Plant maintenance
  • • Critical environment certification
  • • Duct traverses

Models
  • 9535 Air Velocity Meter, Straight Probe, Temp, Basic Data Logging

  • 9535-A Air Velocity Meter, Articulated Probe, Temp, Basic Data Logging

  • 9545 Air Velocity Meter, Straight Probe, Temp, Humidity, Data Logging

  • 9545-A Air Velocity Meter, Articulated Probe, Temp, Humidity, Data Logging

Accessories and Replacement Parts
  • 801752 Carry Case, Basic Thermal Anemometer

  • 801757 Carry Case, Air Velocity Meter with Data Logging

  • 801751 Carry Case, Multi-Function Meter

  • 801761 Universal Power Supply

  • 372000000 8' (2.5 m) Norprene tubing

  • 800681 IAQ Probe Stand

  • 801748 RV Telescopic Rod

  • 801749 Air Cone Kit TSI

  • 3002017 Static pressure probe

  • 801395 Electrochemical Sensor, Carbon Monoxide (CO)

  • 1303754 USB Cable (1 Meter / 3 ft), USB-A to USB Mini-B)

  • 801758 Large Carry Case for Multi-Function Meter and multiple probes - TSI

  • 634640006 Duct plug, 1/4" (6.4mm) diameter - 5000 pieces

  • 634640008 Duct plug, 1/2" (12.7mm) diameter - 1000 pieces

  • 634650002 Duct plug, 3/8" (9.5 mm) diameter - 1000 pieces

  • 634650003 Duct plug, 3/8" (9.5 mm) diameter - 5000 pieces

  • 801775 RV Replacement handle LCA501/RVA501/5725/995

  • AFL82488801 Air Cone Duffle Bag - Replacement
