TSI AM520 SidePak Personal Aerosol Monitor

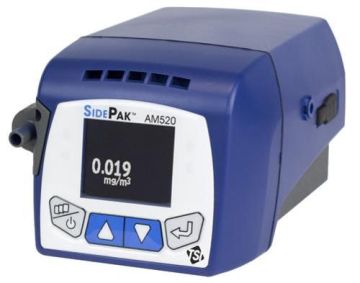

The TSI AM520 SidePak Personal Aerosol Monitor is a small, portable, battery-operated, data-logging, light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone.

Key Features

  • Robust impactors for higher mass concentration range---MORE THAN EVER BEFORE!
  • Audible and visual alarms---THAT CAN TRULY BE SEEN AND HEARD!
  • 0.8 µm DPM impactor---THE FIRST OF ITS KIND!
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product. We offer distribution of TSI products to the UK and Ireland.

Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM 10 , PM 4 (Respirable), PM 5 (China Respirable), PM 2.5 , PM 1 and 0.8 µm Diesel Particulate Matter (DPM).

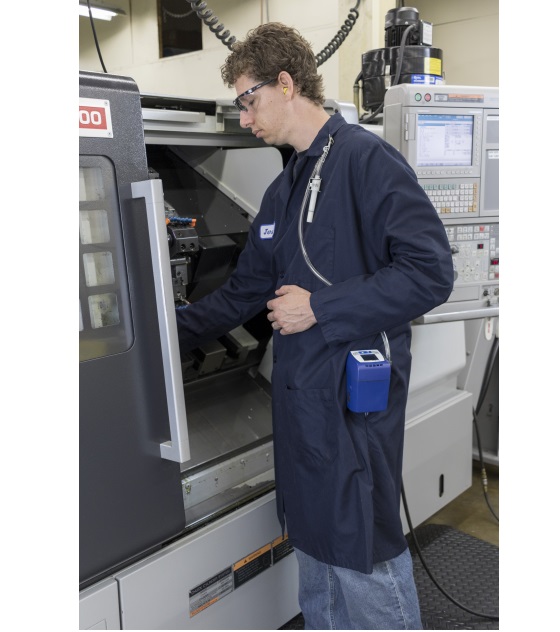

This monitor is the perfect solution for real-time, personal aerosol sampling in a variety of workplace environments, including but not limited to general industry, foundries, construction sites, chemical plants, refineries, petrochemical, power and utilities, transportation, aerospace, maritime, confined spaces and mining.

FEATURES AND BENEFITS

  • • PM 5 China respirable size fraction impactor
  • • High capacity battery---ENABLING 20+ HOURS OF CONTINUOUS OPERATION TO ENSURE ULTIMATE FLEXIBILITY!
  • • Color OLED display
  • • Real-time mass concentration measurement and data logging for "in-the-field" data analysis
  • • Push button menu operation or programmable through newly improved TrakPro™ v5 Software
  • • User-selectable alarm levels to alert workers to high aerosol concentrations
  • • Newly designed robust impactors enable reliable size fraction measurements at higher aerosol concentrations over longer run times

APPLICATIONS

  • • Aerospace
  • • Automotive
  • • Chemical
  • • Construction
  • • General Industry
  • • Healthcare
  • • Manufacturing
  • • Mining
  • • Petrochemical
  • • Pharmaceutical
  • • Power Generation
  • • Transportation

KITS INCLUDE

  • • Soft single-unit carrying case
  • • 100-240VAC power supply
  • • USB cable
  • • Impactor kit
  • • Dorr-Oliver Cyclone kit
  • • DPM cyclone kit
  • • Screwdriver
  • • Micro USB cable
  • • Zero filter
  • • Sample tube
  • • Calibration certificate
  • • User guide
  • • Quick reference card
  • • 2-year warranty

Models
  • AM520 Includes: x1, 5400 mAH Li-Ion rechargeable Battery Pack, Carrying Case; Universal Power Supply (US, Euro, UK and Australian adapters); x1, Zero Filter; x1, Door Oliver Cyclone Kit with U-Tube and 3 ft/1 m Tygon Tubing; x1, Impactor Kit (with x1, each of PM1/PM2.5/PM5/PM10/Nondescript inlets) with bottle of impactor oil, x3, impactor disks and x1, impactor replacement gasket; x1, 0.8 µm DPM Cyclone; x1, USB Cable; x1, #2 Philips Head Screwdriver; x1, User Manual; x1, Quick Start Guide; Calibration Certificate and 2-Year Limited Warranty.

Accessories and Replacement Parts
  • 803300 Battery pack. 5400 mAH Li-Ion Rechargable battery with attachment

  • 803306 AM520/AM520I Field Servic Kit. Includes: USB plus (3), Inlet gaskets

  • 800669 Rotameter flow calibrator (0 - 2.5 lpm)

  • 803310 CALIBRATION JAR, 1-LITER

  • 803301 AM520/AM520I Impactor Kit. Includes: PM1/PM2.5/PM5/PM10/Non-descript

  • 803302 AC Adaptor with Universal Plug Set; SidePak AM520/AM520i.

  • 803303 AM520/AM520I DPM CYCLONE KIT. Includes: 0.8 um DPM Cyclone and DPM

  • 803305 AM520/AM520I USB Cable (6 ft /1 m) (USB-A to USB Micro-B)

  • 801701 AM520/AM520i/AM510 Cyclone Kit, includes: 10 mm Nylon Dorr-Oliver

  • 801703 Sample tube, Tygon®, 1/4 in.(6.4 mm) inside diameter x 3/8 in.(9.5 mm)

  • 801704 U-tube kit, includes U-tube, connector tube and lapel clip

  • 1309156 Cyclone clip for Dorr-Oliver Cyclone (holds inlet onto cyclone body)

  • 801674 Impactor Oil for DustTrak II/DRX/AM520/AM520i; 5 ml bottle.

  • 800663 Zero filter. Qty 1.

  • 803307 Screw driver, #2 Phillips head

  • 1319289 Soft Sided Carrying Case with TSI Logo
