TSI PH731 ProHood Capture Hood

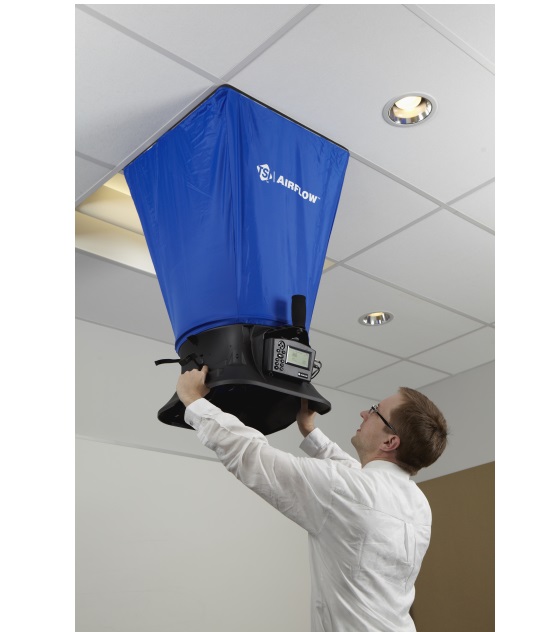

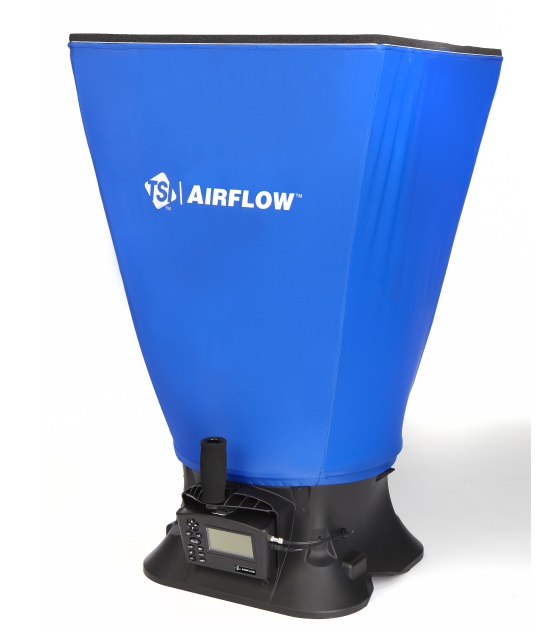

The TSI PH731 ProHood Capture Hood is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings at diffusers and grilles.

Key Features

  • Detachable micromanometer
  • Durable, trouble-free operation
  • Helps you create healthy and energy efficient environments
Get a Quote
TSI Instruments

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product. We offer distribution of TSI products to the UK and Ireland.

It features a detachable micromanometer which can be used with optional probes for increased flexibility in multiple measurement applications.

Offering durable, trouble-free operation, this lightweight, ergonomically designed capture hood kit saves time and money by combining multiple measurement tools into one package.

The ProHood Capture PH731 helps you create healthy and energy efficient environments while meeting local codes, guidelines and regulations for ventilation systems.

CAPTURE HOOD FEATURES AND BENEFITS

  • • Ergonomic design and ultra light weight for easy, one-person operation
  • • Automatically senses and displays supply or return flows, saving time on the job
  • • Back pressure compensation ensures accurate readings
  • • Multiple hood sizes available for easy, cost effective use across multiple jobs
  • • Detachable digital micromanometer offers flexibility to use in multiple applications

DETACHABLE MICROMANOMETER FEATURES AND BENEFITS

  • • Accurately measures pressure, velocity and flow to help you meet industry standards
  • • Auto-zeroing pressure sensor reduces user-steps and saves time
  • • Automatic density correction increases reading accuracy
  • • Intuitive menu structure allows for ease of use and setup
  • • Large graphic display with backlight offers easy-to-use interface
  • • Integrated Log-Tchebycheff duct traverse application simplifies calculations
  • • Bluetooth communications for transferring data or remote polling
  • • Includes downloading software with USB cable
  • • Accommodates optional pitot, air flow (straight pitot), temperature/relative humidity, velocity matrix, or thermoanemometer probes for use in multiple applications

APPLICATIONS

  • • HVAC commissioning
  • • Clean room certification
  • • Troubleshooting HVAC systems
  • • Testing and balancing HVAC systems

INCLUDED ITEMS

  • • 2 ft. x 2 ft. (610 mm x 610 mm) air capture hood/frame/base
  • • Detachable micromanometer
  • • Swirl X Flow Conditioner
  • • (4) AA size rechargeable NiMH batteries
  • • Multi-country AC adapter
  • • 18 in. (46 cm) Pitot probe
  • • (2) Static Pressure probes
  • • 16 ft. (4.8 m) Neoprene tubing
  • • Wheeled luggage-style carrying case
  • • NIST traceable calibration certification
  • • Downloading software
  • • USB interface cable
  • • Manual

Models
  • PH731 PH731 610 X 610 Capture Hood Kit

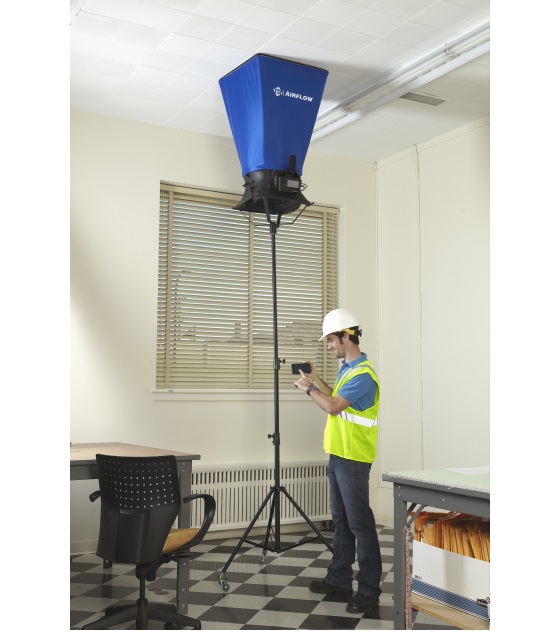

  • PH731-STA PH731 with CH-Stand and Tablet

Accessories and Replacement Parts
  • 801208 Airflow - 610mm X 610mm Hood and Frame Kit

  • 801200 1' X 4' (305mm X 1220mm) Hood and Frame Kit

  • 801201 2' X 4' (610mm X 1220mm) Hood and Frame Kit

  • 801202 1' X 5' (305mm X 1525mm) Hood and Frame Kit

  • 801206 1' X 4' (305mm X 1220mm) and 2' X 4' (610mm X 1220mm) Hood Expansion Kit

  • 801207 1' X 5' (305mm X 1525mm) and 3' X 3' (915mm X 915mm) Hood Expansion Kit

  • 801204 8-in x 21-in (200mm x 530mm) Biological Safety Cabinet Hood Kit

  • 801205 10-in x 21-in (255mm x 530mm) Biological Safety Cabinet Hood Kit

  • 372000000 8' (2.5 m) Norprene tubing

  • 801092 NiMH battery holder with (4) AA NiMH batteries

  • 801096 Foam Nitrile ADH BK 0.5" x 0.5" x 64' for frame channels

  • 1208048 NiMH Battery - AA (each)

  • 2913011 Carrying strap/tether

  • 534513021 Hood frame channel #4

  • 534513020 Hood frame channel #3

  • 534513017 Hood frame channel #2

  • 534513018 Hood frame channel #1

  • 3002017 Static pressure probe

  • 801090 Velocity Matrix, telescopic handle, two 8' (2.4 cm) neoprene tubes

  • 800187 Air flow probe 18" (46 cm)

  • 801203 3' X 3' (915mm X 915mm) Hood and Frame Kit

  • 534513040 Hood frame channel #5

  • 534513041 Hood frame channel #6

  • 804240 Repl pins, springs and c-clips

  • 804241 Velocity Matrix Stand-off Kit

  • 534593173 Foam handle

  • 1083682 Support Poles, Qty 4

  • 801040 Power cord for EBT720/EBT721/EBT730/EBT731/8710/

  • 801209 16-in X 16-in (406mm x 406mm) Hood and Frame Kit

  • 534513031 Hood frame assembly - 2' x 2' (610mm X 610mm)

  • 800526 Hood fabric - 2' x 2' (610 mm x 610 mm) Airflow

  • 800521 Hood fabric - 2' X 4' (610mm X 1220mm)

  • 800522 Hood fabric - 1' X 4' (305mm X 1220mm)

  • 800523 Hood fabric - 3' X 3' (915mm X 915mm)

  • 800524 Hood fabric - 1' X 5' (305mm X 1525mm)

  • 801210 5.25-in X 48-in (133mm x 1220mm) Hood and Frame Kit

  • 801211 28-in X 28-in (710mm x 710mm) Hood and Frame Kit

  • 801212 28-in X 50-in (710mm x 1270mm) Hood and Frame Kit

  • 801213 Swirl X Flow Conditioner

  • 960 Air Velocity Probe, Straight, Velocity, Temp.

  • 962 Air Velocity Probe, Articulated, Velocity, Temp.

  • 964 Air Velocity Probe, Straight, Velocity, Temp., Humidity

  • 966 Air Velocity Probe, Articulated, Velocity, Temp., Humidity

  • 800220 Temperature and humidity probe

  • 801214 Support Poles, BSC Hood Kit, Qty 4

  • 801192 New Base Temperature Probe Kit

  • 1303754 USB Cable (1 Meter / 3 ft), USB-A to USB Mini-B)

  • 800888 PH730 Micromanometer Only

  • 800881 PH731 base only, 2' x 2' (610 mm x 610 mm) hood, carrying case

  • CH-STAND Capture Hood Stand

  • 801215 1'X3' (305 mm X 915 mm) Hood and Frame Kit

  • 534593155 Folding, collapsible frame - 2' x 2' (610 mm x 610 mm)

  • 634640006 Duct plug, 1/4" (6.4mm) diameter - 5000 pieces

  • 634640008 Duct plug, 1/2" (12.7mm) diameter - 1000 pieces

  • 634650002 Duct plug, 3/8" (9.5 mm) diameter - 1000 pieces

  • 634650003 Duct plug, 3/8" (9.5 mm) diameter - 5000 pieces

  • 800528 Hood fabric for 801205 BSC kit

  • 800527 Hood fabric for 801204 BSC kit

  • 2609083 Replacement slides for BSC Kit 801205

  • 2609092 Replacement Hood Frame for 801204 BSC kit

  • 2609093 Replacement Hood Frame for 801205 BSC kit

  • 2609082 Replacement slides for BSC Kit 801204

  • 2609094 Replacement Velocity Matrix for 801090

  • 2609081 Telescopic, articulated probe for Velocity Matrix

  • 2609095 Support Pole Extenders(4) for 801211 and 801212 kits

  • 802601 Soft carrying case, wheeled with handle
