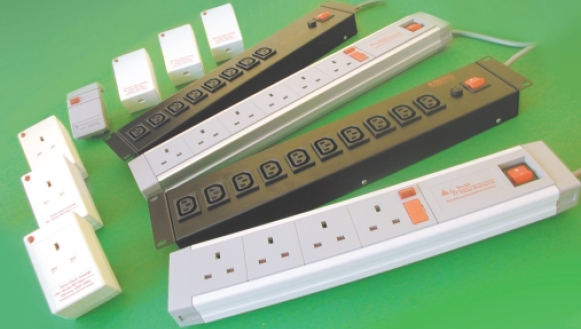

Bowthorpe Professional Grade Surge Protectors


Ideal for business applications, these products are used similarly to conventional plugs and sockets. All dissipate incoming and outgoing surges to or from electronic equipment. Power consumption is negligible and all reset automatically. The internal surge suppressors are tested against ‘worst case’ conditions as defined in International Standards IEEE C62.41-1991 Cat B3 and comply with the recommendations of BS6651: 1999 Annex C.

TRANQUEL PROTECTOR - TRANQ/TE

solution to dirty mains. Ideal for modern office environments it is wired and used as an ordinary plug.

  Rated 10 Amps with 3 Amp fuse fitted.
  Grey flame retardant moulding.
  Thermal overload protection.
  Approved to EN60950.
  Neon indication to denote: Protection unit is intact and Supply fuse is not ruptured.

FILTER PLUG AND ADAPTOR - FP and FA

The Filter Plug replaces a normal plug and provides protection against the dangers of surge and Radio Frequency Interference (RFI).

It allows you to permanently wire your equipment to a clean power supply. The Filter Adaptor offers the same protection levels as the Filter Plug but allows you to connect your existing plug into a clean power unit.

  Beige flame retardant housing.
  Thermal overload protection.
  Filter Plug is ideal for business applications where the Filter Adaptor may be mislaid!
  3 Amp version is most commonly used for microprocessor based products.
  7 Amp version is most commonly used for telephone exchanges.
  13 Amp version is most commonly used for general business applications.
  Neon indication to denote: Protection unit is intact and Supply fuse is not ruptured.
  Complies with BS 5733, IEC61643 and the IT Safety Standard EN60950.

4 & 6 WAY SURGE AND RFI PROTECTOR - 431 & 631

Comply with BS1363 and BS6396. These models are aimed at the business or industrial market where a unit is required to overcome both Surge and Radio Frequency problems. The unit is supplied in an attractive two-tone housing suitable for free standing or wall mounting.

An easily accessible earth connection is provided to assist the user in complying with the requirements of BS6396.

  Rated 13 Amps.
  Outlets protected from RFI and surges to ensure a clean power supply.
  2 metres of cable supplied with a UK type plug.
  Power ON/OFF switch.
  Flame retardant moulding.
  Cool grey and dark grey coloured housing.
  Thermal overload protection.
  Typical RFI attenuation of -50dB.
  RFI protection in both common and transverse modes.
  External earth connector.
  Intersocket surge protection.
  Allows user to comply with BS 6396 by fitting a 7 Amp fuse.
  Neon indicator to denote: Protection unit is intact and Supply fuse is not ruptured.
  Available with 4 or 6 socket outlets.
  Solid busbar construction for high reliability.


10 WAY IEC 19" SURGE PROTECTOR - 1028 IEC

Provides surge protection for ten IEC socket outlets.

  For main characteristics see features list above.

8 WAY IEC 19" SURGE & RFI PROTECTOR - 838 IEC

Provides surge and RFI protection for eight IEC socket outlets.

  RFI protection in both common and transverse modes.
  Typical RFI attenuation of -50dB.
  For main characteristics see features list above.

19" RACK MOUNTED IEC STRIPS

Designed for use in 19” rack applications, these power distribution socket strips provide a convenient means of distributing mains power to equipment installed in rack mounted systems.

Units are supplied in a robust steel 2U high enclosure and are supplied with a 2 metre lead and BS1363 plug.

These units are fused and are provided with a main power ON/OFF switch with neon indicator. Surge protection is fitted as standard and exceeds the requirements of BS6651: 1999 Annex C, location category B.

  Rated 10 Amps.
  Supplied with 2 metre lead and UK type plug.
  Robust steel powder coated 2U high enclosure.
  Illuminated power ‘ON/OFF’ switch and fused.
  Thermal overload protection.
  Intersocket surge protection.


Data Sheet

Part numbers in this range include TRANQ/TE, FP3-BOW/FA3-BOW, 431GBA/BOW-CP, 1028IEC/GB/BOW, 838IEC/GB/BOW, FP7-BOW/FA7-BOW, 631GBA/BOW-HP and FP13-BOW/FA13-BOW.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
