Bowthorpe Small/Home Office Surge Protectors


Designed for Small Office / Home Office applications where a cost-effective means of protecting often expensive and sensitive microprocessor based equipment is required. All units are designed to BS 6651:1999 Annex C location category B.

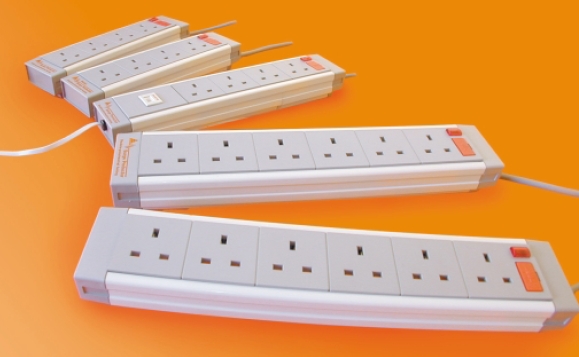

4 & 6 WAY SURGE PROTECTOR - 423 & 623

Comply with BS 1363 and BS 6396. Ideal for where up to six outlets require surge protection. These units are used in the same way as an ordinary socket strip.

An easily accessible earth connection is provided to assist the user to comply with the requirements of BS 6396 and is also fitted with a 7 Amp fuse as per the BS specification covering office furniture.

However both models are fully rated at 13 Amps for other applications.

  Rated 13 Amps with 7 Amp fuse fitted.
  Cool grey and dark grey coloured aesthetically pleasing housing.
  Thermal overload protection.
  2 metres of cable supplied with UK type plug.
  Flame retardant moulding.
  Intersocket protection.
  Suitable for wall mounting via optional brackets.
  External earth connector.
  Neon indication to denote: a) Protection unit is intact. b) Supply fuse is not ruptured.
  Solid busbar construction for high reliability
  Available with 4 or 6 socket outlets.

4 WAY MODEM/TELECOM PROTECTOR - 423GBD

The 423 GBD has a BT type surge protected socket which allows the user to protect telecommunications equipment, single modems, fax/telex machines and telemetry equipment against high current surges and induced lightning by the incorporation of high energy components with extremely fast reaction time.

Pins 2 and 5 are protected and the electrical earth supply is commoned with the telecom circuit to provide protection from high voltage interference.

  Rated 13 Amps with 7 Amp fuse fitted.
  Cool grey and dark grey housing.
  Thermal overload protection.
  Flame retardant moulding.
  Intersocket protection.
  2 metres of cable supplied with UK type plug.
  Suitable for wall mounting via optional brackets.
  Neon indication to denote: a) Protection unit is intact. b) Supply fuse is not ruptured.
  Fitted with 1.5 metre BT type patch lead.


4 & 6 WAY SURGE & RFI PROTECTOR - 443 & 643

Comply with BS 1363 and BS 6396. Ideal for where up to six outlets require surge and RFI protection. An easily accessible earth connection is provided to assist the user to comply with the requirements of BS 6396 and is also fitted with a 7 Amp fuse as per the BS specification covering office furniture.

However both models are fully rated at 13 Amps for other applications.

  Rated 13 Amps with 7 Amp fuse fitted.
  Cool grey and dark grey coloured aesthetically pleasing housing.
  Thermal overload protection.
  Typical RFI attenuation of -20dB.
  2 metres of cable supplied with UK type plug.
  Flame retardant moulding.
  Intersocket surge protection.
  Suitable for wall mounting via optional brackets.
  External earth connector.
  RFI protection in both common and transverse modes.
  Neon indication to denote: a) Protection unit is intact. b) Supply fuse is not ruptured.
  Solid busbar construction for high reliability.
  Available with 4 or 6 socket outlets.


Data Sheet

Part numbers in this range include 423GBA/BOW-CP, 443GBA/BOW-HP, 423GBD/BOW-CP, 623GBA/BOW-CP and 643GBA/BOW-PB.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
