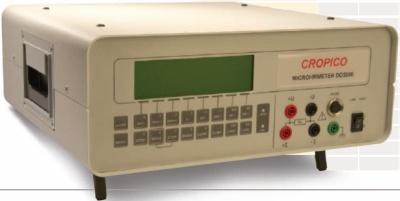

The D05000 series of digital micro ohmmeters offer flexibility of measurement with high accuracy and exceptional functionality. The D0500 series encompass all the features required in an ohmmeter in one practical instrument.

This series of instruments have programmable measuring current in 100 steps, ensuring that we have a model in the range suitable for your application.

Automatic temperature compensation references the measurement to 20oC and Hi / Lo limits permits sorting of components with the minimum of fuss. The D05000 series all have the ability to take an external PRT 100 sensor, this is easily plugged into the socket on the front of the unit.

All these functions are available as standard as well as a data logging function which stores up to 4000 date and time stamped readings. Statistical analysis of these values allows you to display the Max / Min / Average values as well as the peak to peak and standard deviation.

The range of D05000 instruments is ideally suited for laboratory testing of samples, production line testing, and with the addition of the IEEE-48 or PLC interfaces, the D05000 series may be remotely controlled and integrated into an automated testing system.

When the units are used in the fast measuring mode they can easily do 50 measurements per second.

These features are available on all of the models in the range. The D05001 only differs from the D05000 in that it can be mains and battery powered. The D05002 has a lower current capability than both of the other models.

Data Sheet

Key Features

  True 4 terminal measurement eliminates lead resistance errors (D05000, DO5001 & D05002)
  Measuring range from 3 milli ohm to 30 kilo ohm (D05000 & DO5001)
  10 micro ohm resolution (D05002)
  Measuring range from 200 milli ohm to 30 kilo ohm (D05002)
  100 nano ohm resolution (D05000, DO5001 & D05002)
  True zero capabilities (D05000, DO5001 & D05002)
  Digital Calibration (D05000, DO5001 & D05002)
  Automatic temperature compensation with programmable coefficients (D05000, DO5001 & D05002)
  Open circuit lead warning LED (D05000, DO5001 & D05002)
  Current range from 10mA to 10A (D05000, DO5001 & D05002)
  Programmable measuring current 10% to 100% in 1% steps (D05000, DO5001 & D05002)
  High Accuracy 0.03% (D05000, DO5001 & D05002)
  Fast measuring capability of 50 measurements per second (D05000, DO5001 & D05002)
  Programmable High Low Limits with red / green lamps on front panel (D05000, DO5001 & D05002)
  Open Circuit voltage limit mode 20mV / 50mV maximum (D05000, DO5001 & D05002)
  Measuring current selection +I / -I and Auto average (D05000, DO5001 & D05002)
  Data logging with statistical analysis (D05000, DO5001 & D05002)
  Cable length calculations (D05000, DO5001 & D05002)
  Rechargeable batteries built in (DO5001)

Measurement

4 terminal Kelvin/Thomson principle eliminates errors due to lead resistance

Display

LCD graphics panel with backlit 30,000 count

Ranges

8 automatic or manual selection

Terminals

4mm safety sockets

Working Temperature

0°C to +45°C rel. humidity 80% max. non-condensing

Storage Temperature

-20°C to +60°C

Mains Supply

115/230V +10% -10% 47Hz to 163Hz 20VA

Safety

EN 61010-1 EMC-EN 61236

Dimensions

339mm x 324mm x 131mm (W H D) approx

Mass

12kg approx. 12kg packed in carton

Auto Zero

Permits the zero of measurement values

Average

Automatic average and display of measurement with forward and reverse current

Auto Temperature Compensation

Automatically references measurement to temperature of 20°C or user defined temperature. User coefficients may be used. External Pt100 senses temperature manual value can be used.

Hi / Lo Limits

Limit values can be set over entire measurement range

Calibration

Digital pass code protected

Protection

415 Vrms maximum at the measuring terminals will blow internal protection fuse
