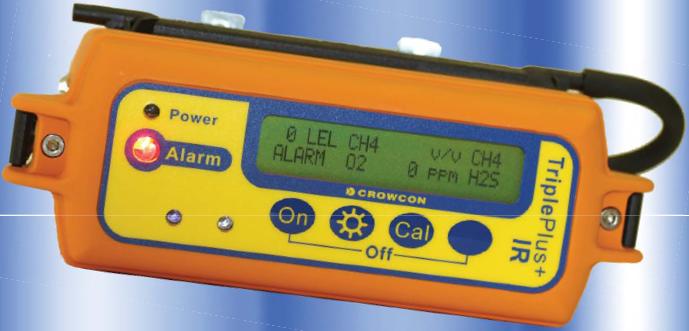

Crowcon Triple+IR Portable Monitor for Flammable Hydrocarbons or Carbon Dioxide, Oxygen and Toxic Gases


Incorporating the latest infrared detection technology Triple Plus + IR extends the capability of the established Triple Plus range for detection of carbon dioxide as a toxic gas, or for the measurement of hydrocarbons in inert backgrounds at both % volume and % LEL levels for tank purging and inert atmosphere monitoring.

The infrared hydrocarbon sensor is equally suitable for detection of hydrocarbons in air for confined space entry and other safety applications.

Infrared hydrocarbon sensor

  Volume % measurement for purging applications
  % LEL measurement in air or inert background
  Single or dual range measurement
  Calibration for methane, propane, butane, pentane or ethylene
  No poisoning effects
  No sensor burnout at high concentration
  Fail safe
  Long sensor lifetime reduced cost of maintenance

Infrared CO2 sensor

  Range 0 - 2%
  Alarms at 0.5% and 1.5%


Convenient and easy to use

  Large four channel simultaneous display
  Loud and clear alarms
  Visual and audible confidence indication
  Low battery alarm
  Rugged and reliable

Flexible

  Available for diffusion, manual aspirator or pumped sampling
  Interchangeable sensors
  Comprehensive Datalogging with user and site names
  Simple Windows software interface to PC


Data Sheet

Ordering Information


IR Flammable Sensors

S011316/U 0-100% LEL methane IR (UL)
S011316/A 0-100% LEL methane IR (ATEX)
S012997 0-100% LEL pentane
S011317/U Dual range 0-100% LEL and 0-100% vol. methane IR UL S011317/A Dual range 0-100% LEL and 0-100% vol. methane IR ATEX
S011318 0-100% LEL Propane
S011319 Dual range 0-100% LEL and 0-100% vol. propane IR
S011320 0-100% LEL butane IR
S011321 Dual range 0-100% LEL and 0-100% vol. butane IR
S011322 0-100% LEL ethylene IR
S011323 Dual range 0-100% LEL and 0-100% vol. ethylene IR
S011790 0-100% LEL acetylene IR
S011792 Dual range 0-100% LEL and 0-100% vol. acetylene IR
S012049 0-100% LEL Dutch Natural Gas NGG IR
S012051 Dual range 0-100% LEL and 0-100% vol. Dutch Natural Gas NGG IR

IR Carbon Dioxide Sensor

S011389 0-5% vol. carbon dioxide

IR Flammable Sensors

S011316/U 0-100% LEL methane IR (UL)
S011316/A 0-100% LEL methane IR (ATEX)
S012997 0-100% LEL pentane
S011317/U Dual range 0-100% LEL and 0-100% vol. methane IR UL
S011317/A Dual range 0-100% LEL and 0-100% vol. methane IR ATEX
S011318 0-100% LEL Propane
S011319 Dual range 0-100% LEL and 0-100% vol. propane IR
S011320 0-100% LEL butane IR
S011321 Dual range 0-100% LEL and 0-100% vol. butane IR
S011322 0-100% LEL ethylene IR
S011323 Dual range 0-100% LEL and 0-100% vol. ethylene IR
S011790 0-100% LEL acetylene IR
S011792 Dual range 0-100% LEL and 0-100% vol. acetylene IR
S012049 0-100% LEL Dutch Natural Gas NGG IR
S012051 Dual range 0-100% LEL and 0-100% vol. Dutch Natural Gas NGG IR



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
