Grant Bio PSU-20i Orbital Multi-Platform Shaker

The Grant Bio PSU-20i is a powerful and efficient microprocessor controlled multi-functional orbital shaker providing all that is required - rotation, reciprocation and vibration - for thorough mixing in flasks, beakers, Petri dishes and other laboratory vessels.

  Orbital motion, reciprocation and vibration functions all in one product
  Fully programmable sequence of functions
  Interchangeable platforms, including multi-level platform option
  Loads up to 15 kg
  Orbital and reciprocating speed: 0 to 250 rpm
  Reciprocal rotation: 1 to 360 deg turning angle
  Vibration: 0 to 6 deg turning angle, programmable in a burst of 1 to 5 seconds
  All mixing functions - orbital motion, reciprocation and vibration - can be set for continuous or timed operation, or be linked together in different combinations to ensure optimum and accurately repeatable mixing conditions for your application
  Powerful, reliable and exceptionally quiet motor - combines 15 kg loading capacity with consistent even motion and noise-free operation
  Very easy to operate, with simple set-up of multi-segment programs via push buttons and the 2-line LCD status display
  Universal detachable platform can accommodate vessels of different shapes and sizes for maximum flexibility.

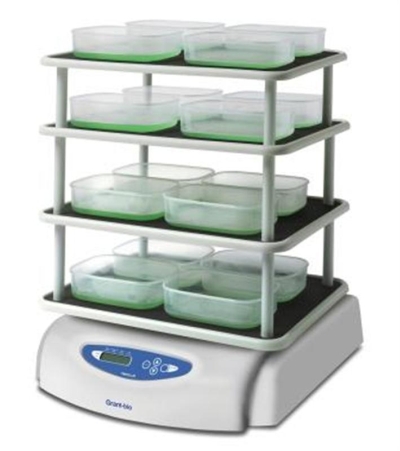

  Optional flat platform PP-20 with non-slip mat accommodates low profile containers. Can be extended to create up to four levels to maximise the throughput per cycle.

Data Sheet

Accessory Platforms

PUP-400 - Universal platform, with adjustable bars and two fixing levels to accommodate high and low level vessels

PP-20 - Flat platform with non-slip rubber mat to accommodate low profile containers such as Petri dishes

PXX-XX - Three-level platform extension for PP-20 with non-slip rubber mats

Ordering Information

Orbital shaker, large, multi-platform, multi-function - rotates, vibrates, reciprocates. Order platform separately PSU-20i

Platform universal flat-bed 4 adjustable bars to hold flasks, beakers, bottles 345 x 430 x 105mm fits PSU-20i PUP-330

Platform flat non-slip mat 480 x 380mm fits PSU-20i PP-20

Platform flat 2-level tower with non-slip mat 480 x 380 x 170mm fits PSU-20i PP-20-2

Platform flat 3-level tower with non-slip mat 480 x 380 x 340mm fits PSU-20i PP-20-3

Platform flat 4-level tower with non-slip mat 480 x 380 x 510mm fits PSU-20i PP-20-4

Platform with spring clamps for 30 x 100ml flasks fits PSU-20i and ES-80 P30-100

Platform with spring clamps for 16 x 250ml flasks fits PSU-20i and ES-80 P16-250

Platform with spring clamps for 9 x 500ml flasks fits PSU-20i and ES-80 P9-500

Platform with spring clamps for 6 x 1000ml flasks fits PSU-20i and ES-80 P6-1000

Adjustable bar additional for PUP-330 platform HB-330

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
