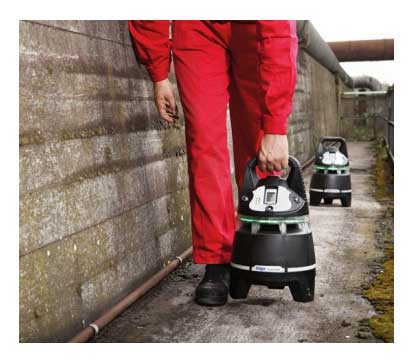

Drager X-zone 5500

Drager X-zone 5500

In combination with the Drager X-am 5000, 5100 or 5600 gas detection instruments, the the Drager X-zone 5500 provides state-of-the-art area monitoring.

The system can be used for the measurement of up to six gases and extends the portable gas detection technology to a unique system with many applications.

INNOVATIVE AREA MONITORING

The Drager X-Zone 5500 transforms the Drager personal gas detection instruments X-am 5000, 5100 and 5600 into innovative area monitoring devices for a wide range of applications.

A patented combination for increased safety - in addition to the personal air monitors carried on the body, these area monitors are positioned where gas hazards are expected.

Get a Quote
Drager

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

CLEAR WARNING

Even from a distance, the illuminated green LED ring indicates that the air is free of toxic and combustible gases. Upon detection of gas hazards, the LED color changes from green to red, thus providing a clear visual warning that gas is present. Additionally, a loud and highly audible evacuation alarm is emitted. The Drager X-zone 5500 gas entry is located that the gas can diffuse into the Drager X-am 5000, 5100 or 5600 from all sides.

CONTINUOUS OPERATION FOR UP TO 120 HOURS

The 24 Ah battery of the Drager X-zone 5500 provides up to 120 hours of continuous operation - a complete working week.

WIRELESS FENCELINE

Up to 25 Drager X-Zone 5500 can be automatically interconnected to form a wireless fenceline. The interconnection of the area monitoring devices allows for rapid establishment of safety networks for larger areas. A Drager X-zone 5500 detecting a gas alarm transmits the alarm signal to all interconnected units.

A red flashing master alarm in the mother unit detecting gas contrasts with red/green flashing alarms of the connected daughter units providing simple recognition of alarm status and the actual location of the hazard.

With the corresponding configuration, the maximum gas concentration in the monitored area is shown on the display. Combined with the display of the X-zone ID a clear containment of the hazard area is possible.




Drager X-zone 5500

Drager X-zone 5500, 868 MHz, 24 Ah battery with diffusion cap 8324819
Drager X-zone 5500 with integrated pump, 868 MHz, 24 Ah battery with diffusion and pump cap 8324821
Gas supply adapter 8323314
Alarm damper 8320110
Socket, 25 cm high (12 in.) 8320645
Set: cap for Drager X-am 5100; for X-zone with pump 8323938

Charging accessories

Inductive charger 8322080
Plug-in charger 8320749

Pump accessories

Float probe with 5 m or 16.4 ft. FKM hose 8318371
Hose set (consisting of water trap, dust and water filter) 8321527
Hose, electronically conductive 1180681
FKM hose, solvent-resistant 1203150
Tygon hose 8320395

Communication accessories

USB DIRA with USB cable 8317409

Optional equipment

Drager X-zone Switch Off 8322260
Drager X-zone Switch On 8322270

X-zone Com GSM-Module

X-zone Com 83 24 383
Cloud license 1 year 8325346
Cloud license 3 years 8325347

External Display

Drager RVP 5000 SC 00 090
Drager RVP 5000 with data logger SC00091
Drager RVP 5000 with web server and data logger SC00092
