pH/ORP/ISE, EC/TDS/Resistivity/Salinity/Seawater Specific Gravity, Turbidity,
DO, Temperature and Atmospheric Pressure
 Field replaceable ISO 7027 compliant turbidity sensor
Ammonium, chloride and nitrate ISE's
Logging from probe or meter
Fully customizable instrument, probe, sensors and
measurement specifications
Display from 1 to 12 parameters with font dimension
adjustment
Field replaceable sensors
pH/ORP or pH, four electrode EC and galvanic DO sensors
Auto-recognition of all sensors
Rugged probe with stainless steel tip has a diameter
under 2" for wells and pipes
Track measurement locations with GPS
Fast Tracker™-Tag I.D. System simplifies periodic
monitoring
HI 9829 features a built-in barometer for DO compensation
Quick or independent sensor calibration feature
Measurement check eliminates erroneous readings
Logged data can be displayed as graphs
Graphic LCD with backlight
USB for PC connectivity
Good Laboratory Practice feature with last
five calibrations recorded
Meter accepts both alkaline and rechargeable batteries
Waterproof protection for meter (IP67) and probes (IP 68)
Intuitive configuration, measurement and dedicated
HELP button

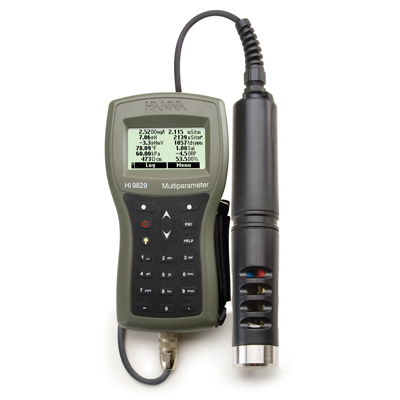

Rugged, waterproof and easy to use, the HI 9829 is the ideal meter
for field measurements of lakes, rivers and seas. The HI 9829
displays 1 to 12 parameters simultaneously from up to 15 user
selectable parameters.
Combined with one of the HI 76x9829 series probes, the HI 9829 can
measure water quality parameters such as pH, ORP, conductivity,
turbidity, temperature, ions ions ammonium, nitrate, chloride (NH4+,
NO3--N or Cl- ), dissolved oxygen concentration, resistivity, TDS,
salinity, and seawater specific gravity. Atmospheric pressure is
measured for DO compensation.
The HI 9829 with the GPS option incorporates a built-in GPS receiver
and antenna that guarantees position accuracy. Measurements from
specific locations are tracked with detailed coordinate information
that can be viewed immediately on the display.
The HI 9829 features a graphic, backlit LCD that scales digits to fit up
to 12 parameters and allows full configuration of each parameter
measured along with an on-screen graphing capability.
The meter incorporates comprehensive GLP features and the
transferring of data via USB connection. The HI 9829's HELP key
displays context sensitive help. The alpha-numeric keypad offers a
user friendly way to complete the input fields.
A Great Combination
The use of HANNA's microprocessor based multiparameter
intelligent probes and new HI 9829 meter will provide reliable data
collection that can lead to an improved scientific understanding of
the interconnections between natural, chemical and geological
processes and man made pollution to effectively evaluate
applications for waste-discharge permits, remediate contaminated
sites and to protect or restore biological resources.
The HI 76x9829 probes feature field replaceable sensors with autorecognition.
The sensors are housed with the probe electronics in a
rugged housing with a water-tight cable connection. The base probe
model permits the measurement of conductivity, pH/ORP (or an ISE),
and dissolved oxygen. Other models permit turbidity and logging.
The probes are available with a choice of cable lengths such as 4 m,
10 m and 20 m (13, 32, 66') that utilize a DIN connection to interface
with the meter. The probes are supplied with a maintenance kit.
These new probes can be connected directly to a PC with the
HI 9828 PC adapter, and the HI 929829 PC software to communicate
directly with the probes.
Reliable temperature measurements are a critical parameter of
aquatic system monitoring. Temperature and temperature changes
due to water releases can affect the ability of water to hold oxygen
as well as the ability of organisms to resist certain pollutants. The
intelligent probes incorporate an accurate thermistor that changes
predictably with temperature changes. Accurate temperature
reading in degrees Celsius, Kelvin or Fahrenheit are displayed and
utilized by other detectors for temperature correction.
The pH or pH/ORP sensors incorporate the technology that has
made HANNA so successful as a pH manufacturer. Reliable pH
measurements are one of the most important indicators of water
chemistry indicating the relative amount of free hydrogen and
hydroxyl ions in the water. HANNA's pH sensors utilize a resilient PEI
body to protect them from solid particulates found water samples.
Consistency and quality are the hallmarks of these sensors. Our
differential measurement system further enhances the
measurement reliability providing temperature corrected pH.
A choice of 3 ion selective electrodes is available for constant
reporting of common surface water contaminants. Nitrate, ammonium and chloride are available. Each ISE is a combination
electrode incorporating an extremely constant reference spiral; all
potentionmetric probes feature a double junction and solid gelled
reference design. By Utilising conductivity, the HI 9829 meter can
convert ion activity measurements to concentration units.
The HANNA 4-electrode conductivity probe using the polarographic
measurement principal ensures stable conductivity readings.
Electrolytic conductivity measures of the ability of water to conduct
an electrical current. It is highly dependent on the amount of
dissolved solids (such as salt) in the water. Absolute conductivity,
temperature corrected conductivity, salinity, specific gravity and
water hardness (TDS) determinations are possible with
measurements from this sensor.
The oxygen dissolved in lakes, rivers, and oceans is crucial for
the organisms and creatures living in it. If dissolved oxygen
concentrations drop below normal levels in water bodies, the water
quality degrades and the organisms begin to die off. The galvanic
sensor does not require long polarization times so is ready for
measurement at a moment's notice. Our sensor also utilizes a
replaceable cap design for ease of maintenance and a safe non-toxic
electrolyte. DO readings are compensated for the effects of
temperature (using the probes built-in temperature sensor) and
atmospheric pressure (using the HI 9829's internal atmospheric
pressure sensor).
The new HANNA turbidity sensor is a replaceable design for
instantaneous turbidity reading that conforms to ISO 7027
standards. It provides measurements from 0.0 to 50.0 FNU; and 50
to 1000 FNU. Turbidity is the amount of particulate matter that is
suspended in water. Turbidity measures the scattering effect that
suspended solids have on light: the higher the intensity of scattered
light, the higher the turbidity. Material that causes water to be turbid
include: clay, silt, finely divided organic and inorganic matter, soluble
colored organic compounds, plankton and microscopic organisms.
Probes with the logging function have a logging memory that allows
storage of up to 140,000 individual samples or 12,000 complete
sample data sets with date and time stamp thus permitting up to a
35 day deployment with all channels logging at 10 minute intervals.
Logging probes work with either rechargeable or standard batteries
The probe incorporates a temperature sensor for temperature
compensation of all parameters.
|
|
The Perfect Monitoring Tool
Water scientists and managers alike utilize data-collection
programs as part of environmental monitoring. These programs are
designed to reveal changes in water and the environment around it
over time. Reliable, dependable measurements are required to
monitor these changes and understand the contributions from
seasonal fluctuations, weathering, as well as manmade pollution.
The HI 7629829 or HI 7639829 intelligent autonomously logging
probes can be left at the application site to autonomously log
results without the aid of the HI 9829 or a PC. When it is time to
retrieve the results the measurement data can be easily transferred
to the HI 9829 or a PC using HI 929829 software.
Sensors
Sensor replacement is quick and easy with screw type connectors and
color coded sensors. The HI 9829 automatically recognizes sensor
presence.
The HI 769829-2 galvanic DO sensor with its fast response time can be
ready at a moment's notice. This probe features a replaceable membrane
cap for easy maintenance.
The HI 769829-3 4-electrode conductivity probe uses a polarographic
measurement principle and ensures stable conductivity readings that are
immune to polarization or surface coating. Absolute conductivity,
temperature compensated conductivity, salinity, specific gravity and TDS
determinations are possible with measurements from this sensor.
The new HI 7609829-4 EC/turbidity sensor is field replaceable and
offers readings from both parameters at the same time.
All potentiometric sensors feature a double junction design and are gel filled to increase
resistance to contamination. An ISE sensor can be used in place of the pH sensor and is
automatically recognized. pH in mV readings are also displayed -ideal for troubleshooting.
Monitoring and Tracking
When data collection or monitoring requires tracking capabilities, two kinds of methods can be included with the data-timestamp and
location. The timestamp expresses the date and the time when the measurement was taken. The time and date (timestamp) are determined
by the internal real time clock of the HI 9829. As for location of measurement, the HI 9829 offers two solutions. One is GPS tracking using the
HI 9829's internal 12 channel GPS receiver. The second is the FastTracker™ Tag ID system using ID encoded TAGs mounted at the location
sites. Users simply touch the TAG receiver to the mounted TAG to store data along with location ID.
GPS (Global Positioning System) Enabled
The new HI 9829 features an internal 12 channel GPS receiver and antenna that calculates its position to track locations along with
measurement data. The GPS tracks your location using satellites to within 30 ft (10 m) so you can be sure that you return to the same location
for repeated measurements.
Users can connect to GPS tracking software such as Google™ Maps* to view locations where samples have been taken. Measurement
information is shown right on the map.
