Jenway 550 & 570 Portable pH Meters

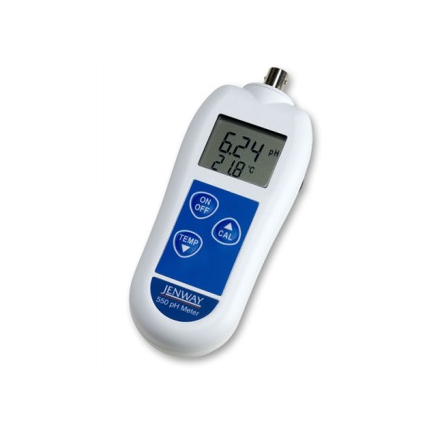

Model 550

  Simultaneously displays pH and temperature
  Automatic calibration
  Manual or Automatic Temperature Compensation (ATC)
  Auto shut off 10 minutes
  5000 hours battery life
  2 year warranty

Model 550 is a general purpose portable pH and temperature meter offering 2 point pH calibration and automatic buffer recognition. This model simultaneously displays both the temperature compensated pH readings and temperature. This small, lightweight meter has an LCD display encompassed in a splash proof housing.

This meter is supplied ready to use with an epoxy bodied electrode (924 001), a temperature probe (170 101) and buffers and is supplied in a handy carry case.

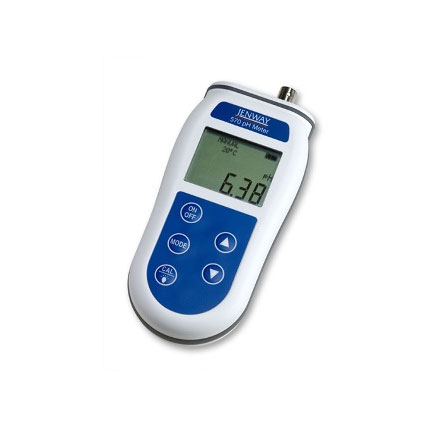

Model 570

  Simultaneously displays pH or mV and temperature
  Automatic calibration
  Manual or Automatic Temperature Compensation (ATC)
  Auto shut off 10 minutes
  2500 hours battery life
  Waterproof housing
  2 year warranty

Model 570 is a general purpose hand held pH, mV and temperature meter. This model offers 2 point calibration and automatic buffer recognition. The unit simultaneously displays either temperature compensated pH readings or electrode potential and temperature. This model has a large easy to read LCD display. The integrated rubber seal ensures that the unit is completely waterproof.

This meter is supplied ready to use with an epoxy bodied electrode (924 001), a temperature probe (170 100) and buffers and is supplied in a bespoke carry case.




Data Sheet
550 Manual
570 Manual

Model550570
TypepH and temperaturepH, mV and temperature
WaterproofNo (IP65)Yes (IP66/ 67)
pH Range0 to 14- 2 to 16
pH Resolution0.010.01
pH Accuracy± 0.05± 0.02
mV RangeN/A- 1000 to 1000mV
mV ResolutionN/A1mV
mV AccuracyN/A± 1mV
ATC0 to 60°C0 to 100°C
Temperature Range0 to 100°C- 39.9 to 149.9°C
Temperature Resolution0.1°C0.1°C
Temperature Accuracy± 0.5°C± 0.4°C ( - 10 to 70°C)
No.of Calibration Points22
Automatic Buffer RecognitionYesYes
Auto Shut Off10 mins10 mins
Operating Temperature0 to 50°C0 to 100°C
Battery Life (hours)50002500
pH ConnectorBNCBNC
Temperature Connector3.5mm jackWaterproof Lumberg screw-locking type
Dimensions (l x w x d)128 x 56 x 25mm141 x 71 x 32mm
Weight130g230g


Ordering Information

Meter with Electrode

550271 550 pH meter supplied in a carry case with epoxy pH electrode ( 924 001), ATC probe ( 170 101), buffer sachets and batteries
570271 570 pH meter supplied in a carry case with epoxy pH electrode ( 924 001), ATC probe ( 170 100), buffer sachets and batteries

Meter without Electrode

550000 550 pH meter supplied in a carry case with ATC probe ( 170 101), buffer sachets and batteries
570000 570 pH meter supplied in a carry case with ATC probe ( 170 100), buffer sachets and batteries



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
