Jenway 74 Series Jenway 76 Series Jenway Nano 7

Jenway 74 & 76 Series Spectrophotometers

The Jenway 7615 UV/Visible split-beam CPLive™-enabled spectrophotometer provides accurate and reliable results and can be used in a multitude of laboratory environments, including, but not limited to: academic, multi-user groups, commercial and QC, molecular, pharma, and research laboratories. The split-beam technology provides a high resolution across the full spectrum. CPLive- enabled spectrophotometers give you the flexibility to reproduce or adapt protocols, whilst saving results seamlessly to the cloud.

Key Features

  • Intuitive 7” HD touchscreen
  • Multiple measurement modes
  • Enhanced connectivity and data storage with CPLive
  • Multi-language options including English, French, German, Spanish and Italian
  • 3-year warranty (including the press to read Xenon lamp)

Get a Quote
Jenway

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

With CPLive connectivity, you can upload results and protocols safely and securely to the cloud, share data with your colleagues, through the CPLive app on your computer, tablet, or smartphone. All your information, from single or multiple instruments, can be stored in one secure location, so data is never lost. Create a free account now at CPLive.coleparmer.com to take advantage of unlimited data storage and share your valuable work with colleagues in your lab or around the world.

The Jenway 74 & 76 Series of Spectrophotometers

Interface Design

  • • Navigation is fast and intuitive
  • • View scans and curves, zoom in and out, and select points right on the screen even when wearing gloves.
  • • Based on a user-friendly Android platform for easy navigation and instrument control.
  • • The home screen gives quick access to the different measurement modes as well as shortcuts to previously
    saved methods and results.
  • • Display allows full spectrum scans; quantitation curves and kinetics runs to be viewed effortlessly.
  • • The touchscreen is fast and responsive even when wearing gloves. Users can zoom in and out and select
    points

  • Measurement modes
  • • Photometric for single wavelength measurement
  • • Concentration calculated using a single standard or a factor
  • • Quantitation with the ability to create a calibration curve using up to 20 standards
  • • Kinetics to monitor change over time
  • • Full spectrum scanning with selectable intervals
  • • Multi-wavelength, where up to 4 wavelengths can be measured simultaneously

    • Enhanced Connectivity and storage

  • • Easy access USB ports that can be used for software updates, data storage and printer connectivity.
  • • Results & methods can be stored as CSV files.
  • • CPLive connectivity allows results to be effortlessly and seamlessly saved and shared.
  • • Save methods and results in the generous 10GB of internal memory for quick recall.

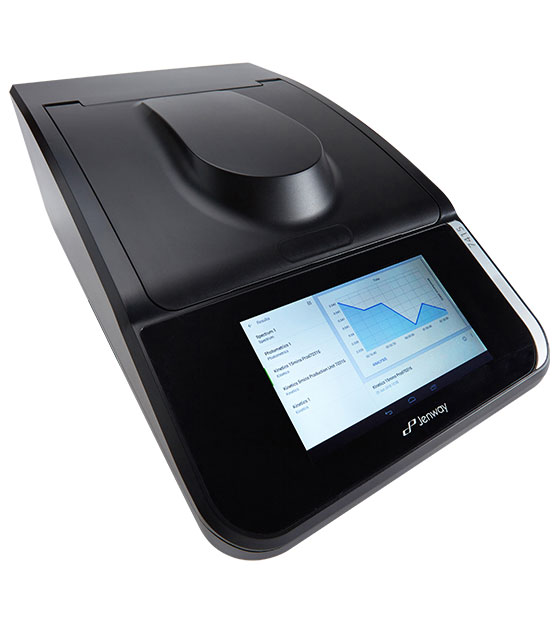

Jenway 7410

Range: 320 to 1000nm
Accuracy: ±2.0nm
Repeatability: ± 1.0nm
Spectral bandwidth: 5.0nm
Transmittance: 0 to 199.9%
Absorbance: -0.300 to 2.500Abs
Accuracy: ± 1%T, ± 0.010Abs at 1.000Abs
Stray Light:<0.5% at 340nm
Curve fit algorithms: Linear through zero, Linear, Quadratic through zero and Quadratic
Measurement time: 2 to 9999 seconds
Calibration: Blank with a single standard or factor
Display: Graphical
Analysis: Concentration, rate of change, initial and final absorbance / %T
Range: 320 to 1000nm
Scan interval: Selectable 1, 2, 5 or 10nm
Analysis: Absorbance or % transmittance and peaks and valleys and area under curve
Light source: Tungsten halogen lamp
Lamp save: Yes

Jenway 7415

Range: 198 to 1000nm
Accuracy: ±2.0nm
Repeatability: ± 1.0nm
Spectral bandwidth: 5.0nm
Transmittance: 0 to 199.9%
Absorbance: -0.300 to 2.500Abs
Accuracy: ± 1%T, ± 0.010Abs at 1.000Abs
Stray Light: <0.5% at 340nm and 220nm
Curve fit algorithms: Linear through zero, Linear, Quadratic through zero and Quadratic
Measurement time: 2 to 9999 seconds
Calibration: Blank with a single standard or factor
Display: Graphical
Analysis: Concentration, rate of change, initial and final absorbance / %T
Range: 198 to 1000nm
Scan interval: Selectable 1, 2, 5 or 10nm
Analysis: Absorbance or % transmittance and peaks and valleys and area under curve
Light source: Xenon lamp
Lamp save: Not applicable

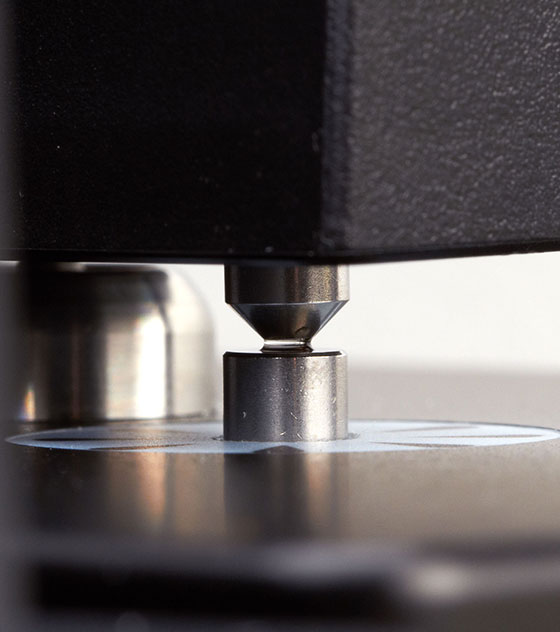

Jenway 7415 Nano

Range: 198 to 1000nm
Accuracy: ±2.0nm
Spectral bandwidth: 5.0nm
Path length: 0.2 or 0.5mm (auto-ranging)
Absorbance Accuracy: ± 0.01Abs at 1.000Abs
Nucleic acid: dsDNA, ssDNA, RNA, Oligonucleotides, 260/280, 260/230, Variable Ratio
Protein: BCA, Bradford, Lowry, Biuret, Direct UV
Maximum concentration: 6000ng / µl (dsDNA) (at 0.2mm)
Detection limit: 2ng/µl (dsDNA) (at 0.5mm)
Measurement time: < 6.5 seconds
Minimum sample size: 0.5µl (at 0.2mm),1.0µl (at 0.5mm)
Maximum sample size: 5µl
Sample pedestal material: Quartz stainless steel
Light source: Press to read Xenon lamp

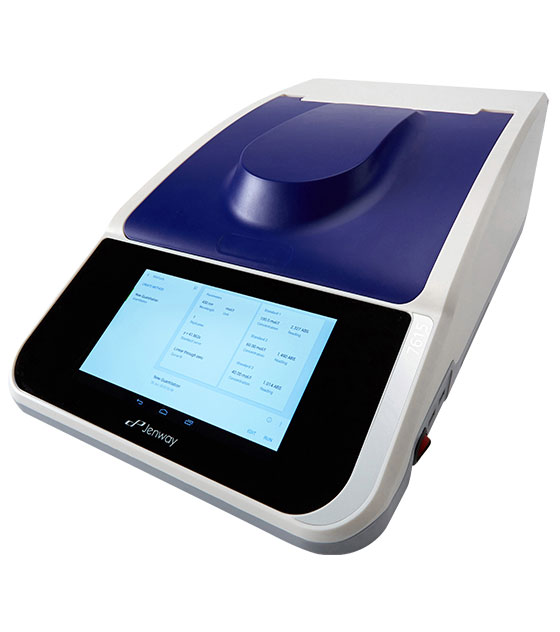

Jenway 7615

Range: 198 to 1000nm
Accuracy: ±2.0nm
Repeatability: ± 0.5nm
Spectral bandwidth: 1.5nm
Transmittance: 0 to 199.9%
Absorbance: -0.300 to 2.500Abs
Accuracy: ± 1%T, ± 0.010Abs at 1.000Abs
Stray Light: <0.5% at 340nm and 220nm
Curve fit algorithms: Linear through zero, Linear, Quadratic through zero and Quadratic
Measurement time: 2 to 9999 seconds
Calibration: Blank with a single standard or factor
Display: Graphical
Analysis: Concentration, rate of change, initial and final absorbance / %T
Range: 198 to 1000nm
Scan interval: Selectable 1, 2, 5 or 10nm
Analysis: Absorbance or % transmittance and peaks and valleys and area under curve
Light source: Xenon lamp
Lamp save: Not applicable
