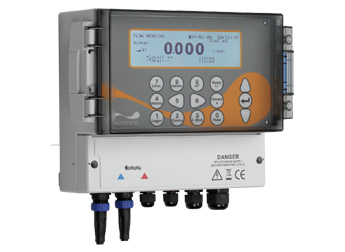

Micronics Ultraflo 3000 & 4000


The new permanent/ fixed clamp-on flow meters from Micronics, for simple, accurate flow measurement from outside the pipe!

The Ultraflo brings simplicity to the non-invasive measurement of liquid flow, offering the user quick and accurate flow measurement with its easy to follow menu and simple set up. A cost-effective alternative to traditional in-line meter installation, plus dry servicing, providing minimum downtime and maximum availability!

Compact, rugged and reliable, the Ultraflow has been designed to provide sustained performance in industrial environments.

  DSP measurement technique
  Reynolds number correction
  Easy to install
  Simple to follow programming menu
  Clamp-on sensors

Hardware & Operation

The Ultraflo electronics are housed in a specifically designed IP65 enclosure, which incorporates the graphic display, keypad, sensor and output facility connections. Programming the unit is carried out by selecting the options displayed in the main menu and by following the simple instructions in any of the user selectable languages.

Signal strength, time and date, as well as flow information are all continuously displayed, keeping the user fully aware of the measurement process.

Flow Transducers

The Ultraflo is able to work with different transducer sets depending on the unit purchased and the application. Sensors are mounted in a guide rail provided with each instrument, to ensure correct mounting and reliable operation on any size pipe, in either diagonal or reflex mode.

Data Logger (U4000 only)

The built in data logger in the U4000 allows site details and flow data to be recorded with a memory, that is able to log 198,000 separate readings. Data can be stored in 5 second to 1 hour intervals.

The data for each site is stored in the memory until it has been cleared. The stored data can be displayed on the instrument in text or graph format.

The instrument is also capable of downloading the stored data via the USB or RS232 output port.


Data Sheet
Manual

Industries:

  Building Services
  Energy Management
  Water
  Power Generation
  Chemical
  Pharmaceutical
  Petrochemical
  Food

Recommended For:

  Hot water
  Chilled water
  Potable water
  Demineralised water
  River Water
  Hydraulic oil
  Diesel and fuel oils
  Chemicals
  Petroleum products

Application/Use:

  Hot water metering and flow measurement
  Flow measurement for Heat Metering
  Chilled water metering and flow measurement
  Flow measurement for chilled water energy metering
  Potable water metering and flow measurement
  Process metering and flow measurement
  Ultrapure water measurement
  Heavy fuel oil metering
  Condensate measurement

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
