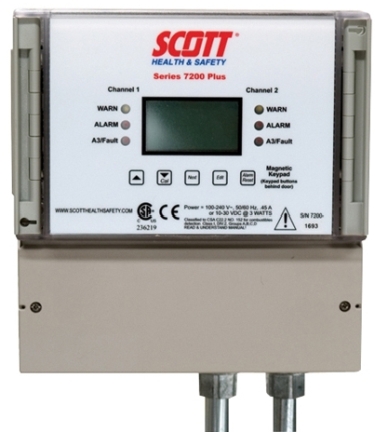

3M Scott Safety 7200 Plus Controller

3M Scott Safety 7200 Plus Controller

The 3M Scott Safety 7200 Plus Controller is designed to provide simultaneous display and alarm functions for up to four monitored variables.

Key Features

  • Centralised Graphic Display and Alarm Controller
  • Seamless Upgrade for Current Loop and Direct Catalytic Bead Detectors
  • MODBUS Interfacing and Output Relay Options for Any Environment
Get Pricing
3M Scott Safety

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

THE SCOTT SAFETY 7200 PLUS AND 7200 Plus CONTROLLERS are designed to provide simultaneous display and alarm functions for up to four monitored variables. A graphic LCD displays monitored data as bar graphs and engineering units. Three adjustable alarm levels are provided per channel. Relay outputs allow control of beacons, horns and other alarm events.

The controllers are easy to configure and are user friendly. Measurement ranges in engineering units, adjustable alarm set-points, optional serial interfaces and many other features offer flexibility to meet most demanding applications.

The controllers utilise NEMA 4X rated enclosures and are CSA certified to CSA C22.2 No. 152 for combustible detection and Class I, Division 2, Groups A, B, C and D hazardous locations. An optional RS-485 MODBUS slave port allows up to 128 controllers to be multidropped onto a single data highway for interrogation by another MODBUS master.

Other 7200 Plus options include six 5 amp SPDT discrete alarm relays per channel, 4 to 20 mA outputs and light stacks. Nonvolatile memory retains all configuration data indefinitely.

Complete 7200 Plus Controller
  • 093-0427 7200 Plus including 4-20 input board, NEMA 4X enclosure, audible alarm

  • 093-0428 7200 Plus including direct cat bead input board NEMA 4X enclosure audible alarm

  • 093-0429 7200 Plus 4-20 input board in a NEMA 7 enclosure

  • 093-0430 7200 Plus Direct catalytic bead board input board in a NEMA 7 enclosure

  • 093-0616 7200 Plus - 2 Channel, NEMA 4X, 4-20 mA Input Board, CSA approved

  • 093-0617 7200 Plus - 2 Channel, NEMA 4X, Direct Catbead Input Board, CSA approved

  • Note: Direct catbead input boards can be configured for 4-20mA input Note: RS 485 output optional

  • Note: RS 485 output optional

7200 Plus Controller Components
  • 093-0431 7200 Plus in NEMA 4X Enclosure

  • 093-0432 7200 Plus in NEMA 7 Enclosure

  • 093-0433 Dual Channel 4-20mA input

  • 093-0434 Dual Bridge Sensor Input

  • 093-0435 Discrete Alarm Relay Board (6, 5A Form C Relays)

  • 093-0436 Dual 4-20 mA Output

  • 093-0438 RS-232 / RS-485 MODBUS RTU Addressable Interface

  • 093-0439 100db Piezo Audible Alarm (added to NEMA 4X Enclosure)

  • 093-0440 Dual light stack (non-hazardous, general purpose; Amber/Red)

7200 Plus Controller Replacement Parts
  • 093-0441 Replacement NEMA 4X Enclosure w/Cover

  • 093-0442 Replacement NEMA 4X Door w/Graphic Overlay

  • 093-0443 "Big Blue" Magnetic Wand for NEMA 7 XP Enclosure

  • 093-0444 "Small Red" Magnetic Wand for NEMA 4X Enclosure

  • 093-0445 Fuse, 2 AMP on Motherboard

  • 093-0446 Motherboard Assembly PCB including Terminal Block and Fuse

  • 093-0447 CD Readout / Microcontroller Assembly PCB Including Ribbon Cable
