SI Analytics TitroLine 6000, TitroLine 7000 and Titronic 500
|
TitroLine 6000 and 7000 and the new
TITRONIC 500 piston burette with
innovative features for simple and
easy operation-without sacrificing
accuracy.
 High visibility, full color display that can be
easily viewed from a distance and at extreme
angles.
Reagent data is securely stored in the intelligent
and interchangeable modules.
Automatic wireless recognition of SCHOTT
Instruments ID electrodes guarantees accurate
calibration and measurements (TitroLine 7000).
Touch keypad interface for error free operation.
Includes three USB and two RS232 ports for
expansion and connection of devices such as USB
storage of methods and data, stirrer, laboratory
balance, PC and additional SI Analytics peripheral
devices.
Versatile and flexible for a
variety of applications.
New intelligent, interchangeable modules:
Size options of 5, 10, 20 and 50 ml.
Compact, space saving footprint for
when bench space is a premium.
All relevant reagent and unit data
are stored in the integrated RFID-chip
including Burette size (ml), Titrant name, Titrant concentration or titer value of solution and Date of manufacturing or expiration date of
the reagent.
Flexible configuration features.
Expand and customize your workstation using the three USB and
two RS232 ports for a total of five connection options for:
Magnetic stirrer
Manual controller
Printer (HP-PCL)
Keyboard
Storage device
USB expansion hub
Balance
Personal computer
Plus, additional SI Analytics devices such as
sample changers and peripherals.

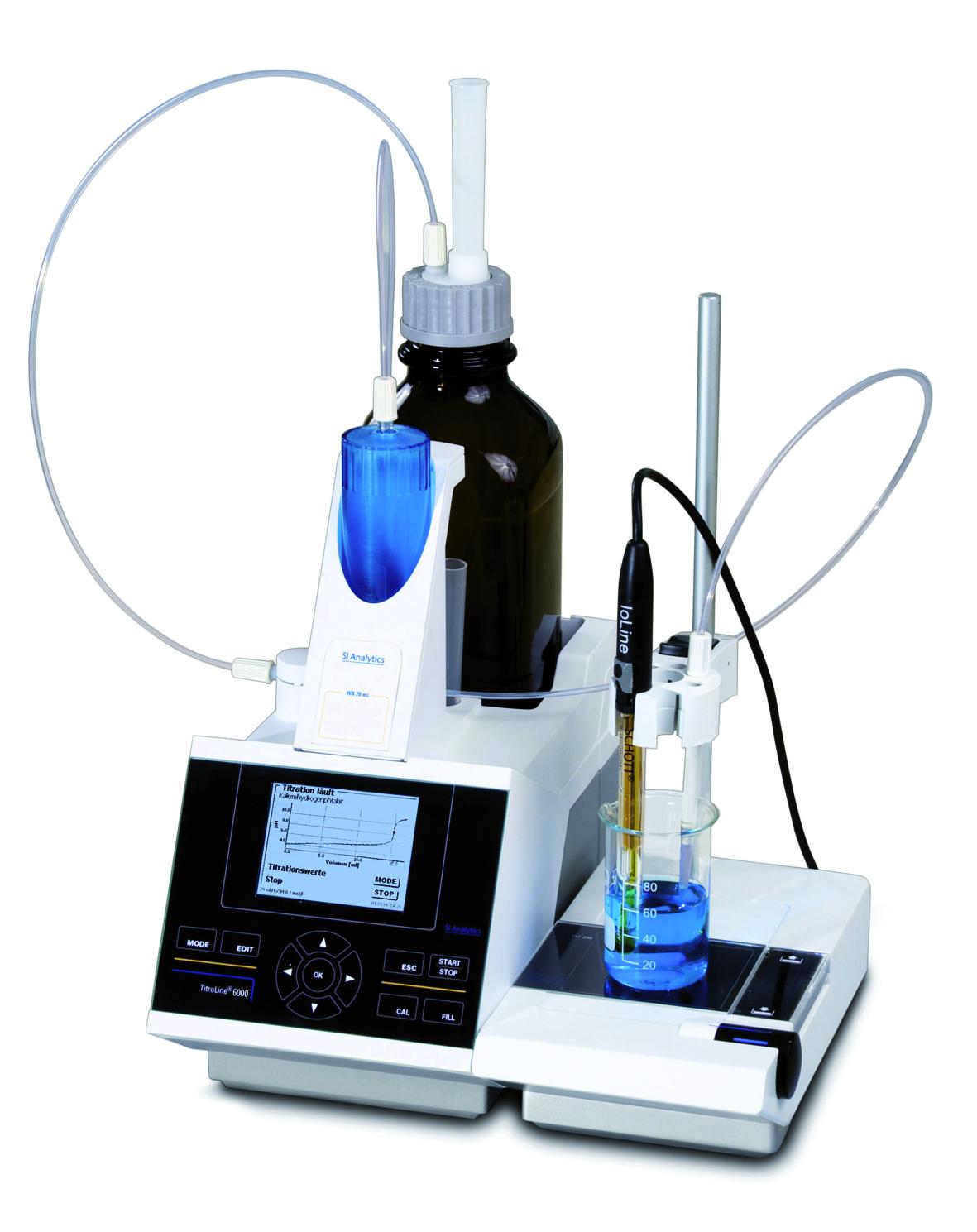

Potentiometric titrator: TitroLine 6000 ideal for food, water,
wastewater and environmental applications
High Resolution
The simple and easy-to-use TitroLine 6000 does not sacrifice
performance when doing potentiometric titrations. It is
the perfect choice for analysis in food, water, wastewater
and environmental
applications.
Thanks to the high-resolution
and precise pH/mV and "dead-stop" measuring interface,
it is possible to determine a wide range of parameters
quickly, reliably and accurately.
Features of the TitroLine 6000 include:
High resolution pH/mV electrode and temperature
inputs for pH, ISE, redox or photometric titrations.
Polarizable electrode input for set endpoint applications.
Available standard methods such as FOS/TAC, alkalinity,
total acidity in soft drinks.
Linear (fixed increment) and dynamic equivalence point
titration modes.
Titrations to pH, mV and �A end point.
Manual titration mode and routine dosing tasks are also
available.
Typical applications of the water/wastewater and
environmental analysis:
pH-value, alkalinity ("p+m-value")
Permanganate index
COD
Total Kjeldahl nitrogen
FOS/TAC (See application example)
Chloride in wastewater
Free and Total Chlorine in drinking water
Total hardness (Sum of Ca+ and Mg+)
Dissolved oxygen according to "Winkler" method.
Typical applications of food analysis:
Salt content (chloride, sodium chloride).
pH-value, total acidity in wine, beverages and food
products such as condiments.
Formol number in fruit and vegetable juices.
Ascorbic acid (Vitamin C).
Calcium in milk and dairy products.
Protein determination (Kjeldahl-nitrogen) in milk and
dairy products.
Reducing sugar in wine and juices.
Iodine number, peroxide number, free fatty acids and
saponification number1).
Determination of free and total sulfurous acid (H2SO3) in
wine and must. Further detail is available in the application
example.
|
Featuring enhanced automation and additional methods

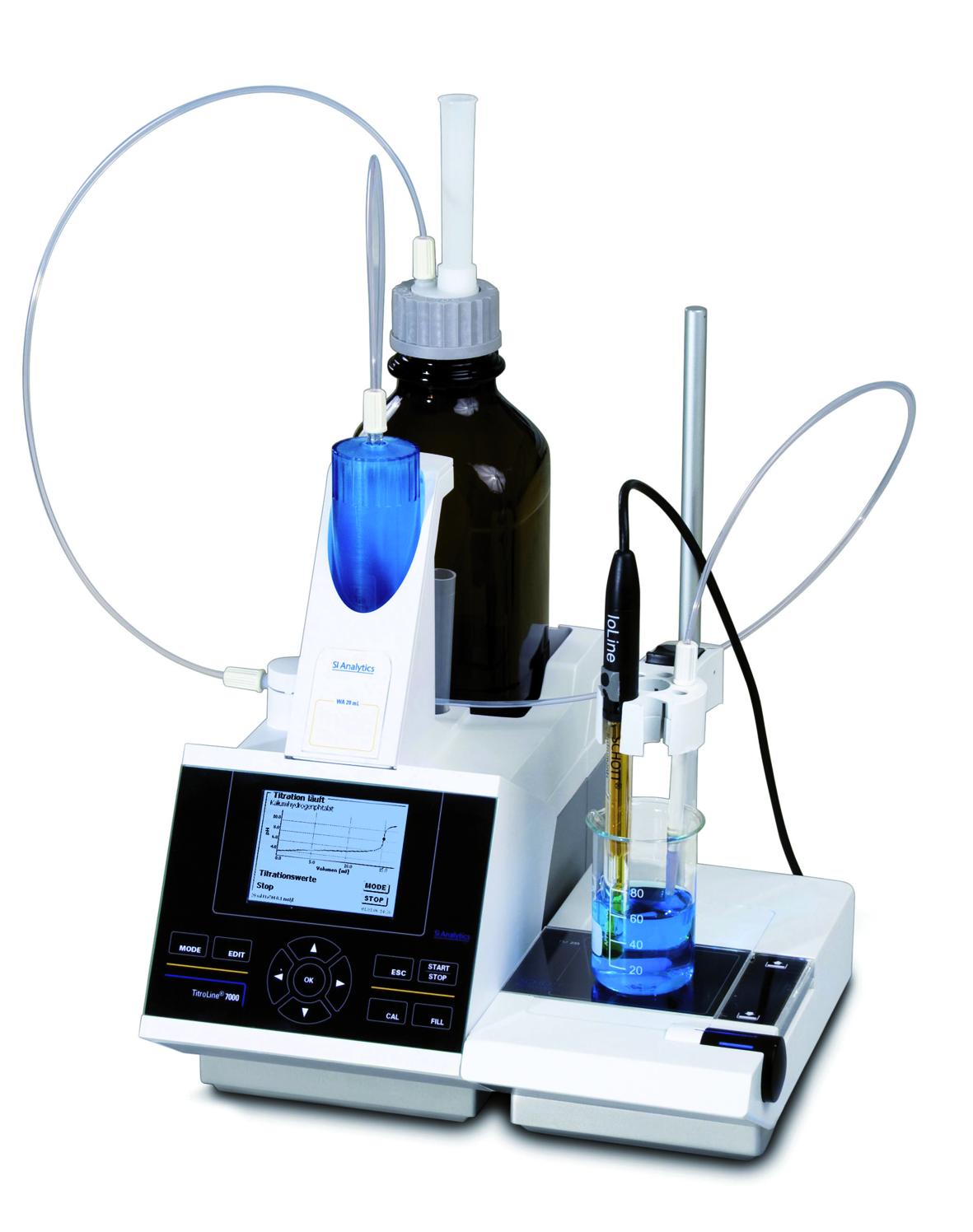

TitroLine 7000
High Resolution
Do you require simple and easy titration but need more
features? The TitroLine 7000 offers storage of up to 50
user methods.
Measuring and calibrating with highest accuracy:
The wireless sensor recognition automatically recognizes
SCHOTT Instruments ID electrodes and instantly stores
dedicated
sensor data-eliminating measurement and calibration
errors.
Perfect for non-aqueous titrations:
Eliminate the need for special electrodes (e.g. separate indicator,
reference and auxiliary electrodes) with the built-in
amplifier-ideal for titrations in non-aqueous solvents such
as:
Acid and base numbers in oils.
Titrations in glacial acetic acid with perchloric acid.
Hydroxyl, NCO (Isocyanate) number and further
specific values.
pH Stat Titrations
With a pH stat application, a given pH is first adjusted and
then kept constant during the analysis with an acid or a
base. The pH stat titration is often applied to:
Determination of the enzyme activity (ex. Lipase).
pH stat elution of soil sample at pH 4.
Monitoring of the pH value during chemical syntheses.
More equivalence points to
expand application possibilities
Yes, it is now possible to detect and
calculate up to two equivalence points
during one titration with the Titro-
Line7000. It is possible to determine
both the calcium and magnesium
hardness individually in a single step,
instead of the total hardness combined.

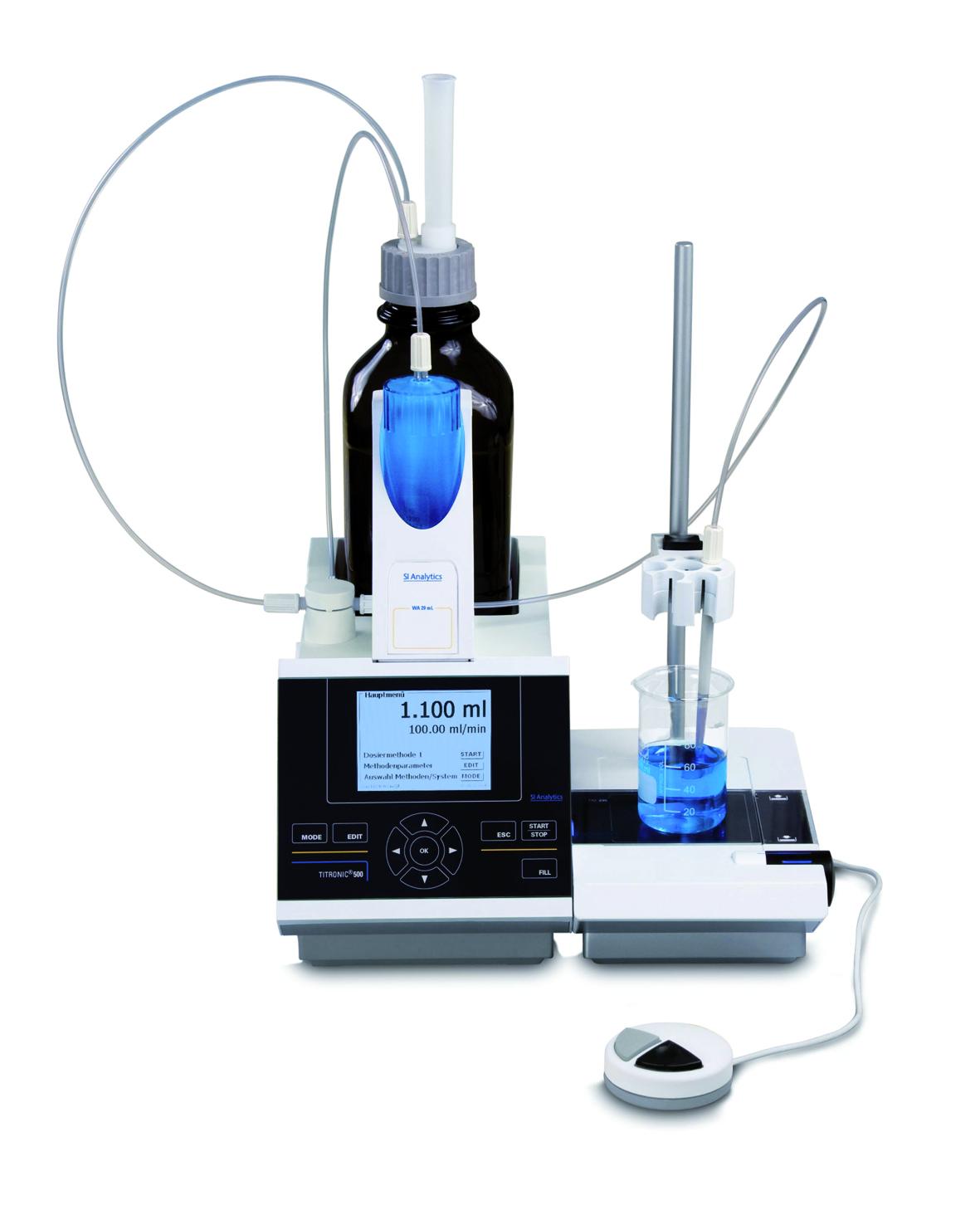

Simple and accurate dosing with the new TITRONIC 500
piston burette
High Resolution
The TITRONIC 500 is the ideal piston burette for manual
titrations, accurate dosing applications as well as the preparation
of solutions. When used with TitriSoft 3.0, it acts as a
titration burette or with the TitroLine7000 and TitriSoft 3.0,
it is an automatic dosing unit perfect to pre-dose a titrant.
Important features:
Intelligent interchangeable modules with 5, 10, 20
and 50 ml volume capacity.
Connect to a printer and/or an analytical balance.
Remote control access via RS232 or USB interface.
Connect up to 16 devices using the two RS232 ports.
The first burette is connected to one PC RS232 or
USB port.
Data Sheet
|
Ordering Information
| Type No | Order No | Product | Description |
T 500-M1 | 285220210 | TITRONIC 500 with magnetic stirrer | TITRONIC 500 basic unit with magnetic stirrer (TM 235), with stand rod (TZ 1510), electrode clamp (Z 305), manual controller (TZ 3880), power supply 100-240 V |
| T 500-M2/20 | 285220220 | TITRONIC 500 with magnetic stirrer and 20 ml interchangeable module | TITRONIC 500 basic unit with magnetic stirrer (TM 235) and 20 ml interchangeable module (WA 20), with stand rod (TZ 1510), electrode clamp (Z 305), manual controller (TZ 3880), power supply 100-240 V |
| TL 6000-M1/10 | 285220050 | TitroLine 6000 with magnetic stirrer and 10 ml interchangeable module | TitroLine 6000 basic unit with magnetic stirrer (TM 235) and 10 ml interchangeable module (WA 10), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| TL 6000-M1/20 | 285220060 | TitroLine 6000 with magnetic stirrer and 20 ml interchangeable module | TitroLine 6000 basic unit with magnetic stirrer (TM 235) and 20 ml interchangeable module (WA 20), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| TL 6000-M1/50 | 285220070 | TitroLine 6000 with magnetic stirrer and 50 ml interchangeable module | TitroLine 6000 basic unit with magnetic stirrer (TM 235) and 50 ml interchangeable module (WA 50), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| TL 6000-M2/20 | 285220080 | TitroLine 6000 with 20 ml interchangeable module and pH electrode | TitroLine 6000 basic unit with magnetic stirrer (TM 235) and 20 ml interchangeable module (WA 20), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip. With pH combination electrode and buffer set. |
| TL 7000-M1/10 | 285220140 | TitroLine 7000 with magnetic stirrer and 10 ml interchangeable module | TitroLine 7000 basic unit with magnetic stirrer (TM 235) and 10 ml interchangeable module (WA 10), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| TL 7000-M1/20 | 285220150 | TitroLine 7000 with magnetic stirrer and 20 ml interchangeable module | TitroLine 7000 basic unit with magnetic stirrer (TM 235) and 20 ml interchangeable module (WA 20), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| TL 7000-M1/50 | 285220160 | TitroLine 7000 with magnetic stirrer and 50 ml interchangeable module | TitroLine 7000 basic unit with magnetic stirrer (TM 235) and 50 ml interchangeable module (WA 50), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| TL 7000-M2/20 | 285220170 | TitroLine 7000 with 20 ml interchangeable module and pH electrode | TitroLine 7000 basic unit with magnetic stirrer (TM 235) and 20 ml interchangeable module (WA 20), with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip. With pH combination electrode and buffer set. |
| WA 05 | 285220300 | Interchangeable module | 5 ml interchangeable module with integrated chip for reagent data, with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| WA 10 | 285220310 | Interchangeable module | 10 ml interchangeable module with integrated chip for reagent data, with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| WA 20 | 285220320 | Interchangeable module | 20 ml interchangeable module with integrated chip for reagent data, with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| WA 50 | 285220350 | Interchangeable module | 50 ml interchangeable module with integrated chip for reagent data, with brown glass bottle for titrant, (GL 45) and (S 40)-bottle adapter, tubes, drip tube and titration tip |
| TM 235 | 285220400 | Magnetic stirrer | Magnetic stirrer with stand rod (TZ 1510), for vessels up to 500 ml, agitator speed infinitely adjustable from 500 - 2000 r/min, for the connection to TitroLine 6000/7000 and TITRONIC 500 |
| TZ 3835 | 285220410 | PC keyboard | PC keyboard with USB-plug for connection to TitroLine 6000, TitroLine 7000 and TITRONIC 500 |
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
