This product is now obsolete. Please contact us in order for us to recommend a replacement to suit your requirements.
Flexible, comprehensive
monitoring backed up by
high performance functionality.
When it comes to flexible, comprehensive
monitoring backed up by high performance

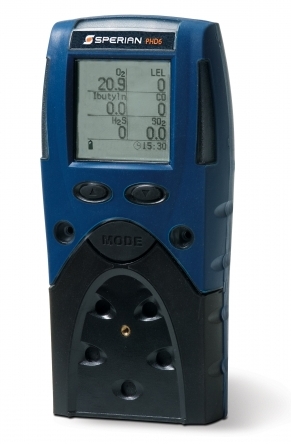

functionality, the PHD6 multigas portable
is the ideal solution for environments where
workers are exposed to a range of gas
hazards, or where different detection
principles need to be employed.
With PHD6, no hazard goes undetected.
Complete with five sensor slots that offer up
to six channels of detection in total, PHD6
adapts easily to meet changing application
needs. The device provides comprehensive
sensor types, allowing sites to implement the
most suitable principle of detection required
with catalytic bead, electrochemical cell, PID
and IR sensors available.
With 18 sensor options, PHD6 can monitor
a wide range of flammable, toxic and Oxygen
gas hazards as well as PID for the detection
of Volatile Organic Compounds (VOCs).
The device also offers extended performance,
with up to 22 hours battery life.
Flexible solution that adapts to meet needs
 5 sensor slots offering up to 6 channels
of detection
18 sensor choices
Detection of flammable, toxic and Oxygen gas
hazards and also VOCs
Device can be configured for almost any
application use
Optional external pump
Suited to many application uses
18 sensor choices including catalytic bead,
ECC, IR and PID
14 toxic gas sensors
IR CO2 sensor option is ideal for breweries
and wineries
PID sensor option for the detection of hundreds
of VOCs
IR CH4 sensor option provides poison-proof
technology for use in situations where a
catalytic bead sensor cannot be used
Tough Durable Housing
Small, lightweight design
Robust, shock-resistant housing
Ultra Clear Backlit Display
Fully illuminated backlit LCD
Easy to read with clear data display
Continuous, real-time gas readings
Peak, STEL and TWA readings
Easy to use
Easy read icons show device status clearly
Heartbeat icon pulses when in use, providing
confidence to the user that the device is online
and working correctly
Intuitive menu system with easy configuration
set up
|
Effective Gas Alarm Indication
Highly visible bright LED visual alarms
(red and yellow)
Distinctive loud two-tone audible alarm
Vibration alarm that demands attention in
high noise environments
Designed for tough environments
IP65 rating
Alarms that demand attention in all hazard
locations
Cost-effective Solution
One unit can be used in many different
applications
Long life, interchangeable Li-lon and Alkaline
battery packs deliver up to 22 hour run times
meaning that fewer devices are potentially
required on site
Built-in IrDA Port for easy data download to
a PC
When used with the optional IQ6 Dock,
the ongoing cost of portable maintenance can
be reduced by up to 60%
Added value extras supplied with each PHD6 device
Belt clip
Calibration adapter
Hand aspirated sample draw kit with
10 inch tubing
Sample probe
Replacement filters
Reference manual
Laminated quick reference card
Training CD ROM
Find out more by reading our data sheet below:
Data Sheet
|
