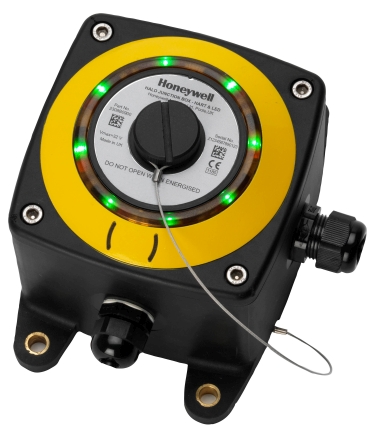

Zellweger HALO LED Junction Box with optional HART Port
This product is now obsolete. Please contact us in order for us to recommend a replacement to suit your requirements.
If you need to see the sensor status of the Searchpoint Optima Plus point infrared Hydrocarbon gas
detector at a glance, even from far away, the HALO Junction Box is ideal.
Through an optional intrinsically safe (IS) HART® connection point, the HALO Junction Box also provides helpful, non-intrusive interaction with a HART® handheld device.
The status is indicated clearly and easily using a "traffic light" colour scheme that is instantly familiar. A red flash indicates an alarm, the show of yellow indicates a fault/inhibit and the show of green indicates normal operation.
This system is beneficial as it allows anyone in the area to immediately see the status of any detector. If there are a number of detectors in an area or if a detector is hard to access, the HALO Junction Box makes things easy.
Easy To Use
 Clear device status provides enhanced safety
Easier to locate a unit in fault/warning
- reduces time for maintenance
Allows convenient connection of an appropriately
certified HART® handheld device
No hot work permit required to connect
handheld device
Local display
LED light ring indicates status at a glance: Green - Normal, Red - Alarm and Yellow - Fault/Inhibit
Simple configuration of alarm point and
LED brightness
Datasheet
|
Suitable for wide range of applications
Can be mounted in highly visible location
Detector can be mounted remotely from HALO
Backwards compatible with
Searchpoint Optima Plus
ATEX/IECEx hazardous area approval
Ex e enclosure
One M25 sensor entry, three M20 cable entries
Easy to Install
Optional pipe mounting bracket
Optional sunshade
Optional retrofit adaptor plate
|
Ordering Information
|
Instruments
2308B0903 HALO junction box ATEX/IECEx
2308B0941 HALO junction box Inmetro*
2308B0947 HALO junction box GOST*
2308B0953 HALO junction box CCCF*
2308B0900 HALO junction box with HART® connection ATEX/IECEx
2308B0940 HALO junction box with HART® connection Inmetro*
2308B0946 HALO junction box with HART® connection GOST*
2308B0952 HALO junction box with HART® connection CCCF*
Accessories
2308B0934 HALO Sunshade
2308B0930 Adaptor Plate Kit
2308B0923 Pipe Mounting Bracket Kit
Spares
2308B0970 Lid assembly - HALO ATEX/IECEx
2308B0971 Lid assembly - HALO Inmetro*
2308B0972 Lid assembly - HALO GOST*
2308B0973 Lid assembly - HALO CCCF*
2308B0974 Lid assembly - HALO with HART® connection ATEX/IECEx
2308B0975 Lid assembly - HALO with HART® connection Inmetro*
2308B0976 Lid assembly - HALO with HART® connection GOST*
2308B0977 Lid assembly - HALO with HART® connection CCCF*
2308B0978 Blanking cap / magnet assembly including lanyard
2308B0924 Terminal block spares assembly
2308B0969 Service spares kit
* Contact us for availability
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
